OEM-spec 20442-36-16RW M36×2 45° Metric Female 24° Cone Spiral Fitting
SKU 20442-36-16RW
In stock: 6 available · Ships from Kelowna BC
Verify fitment by part number before ordering.
Match the listed SKU and verified cross-references to your current part number. If fitment is not listed, send AIM Rentals the machine details and current part number before ordering.

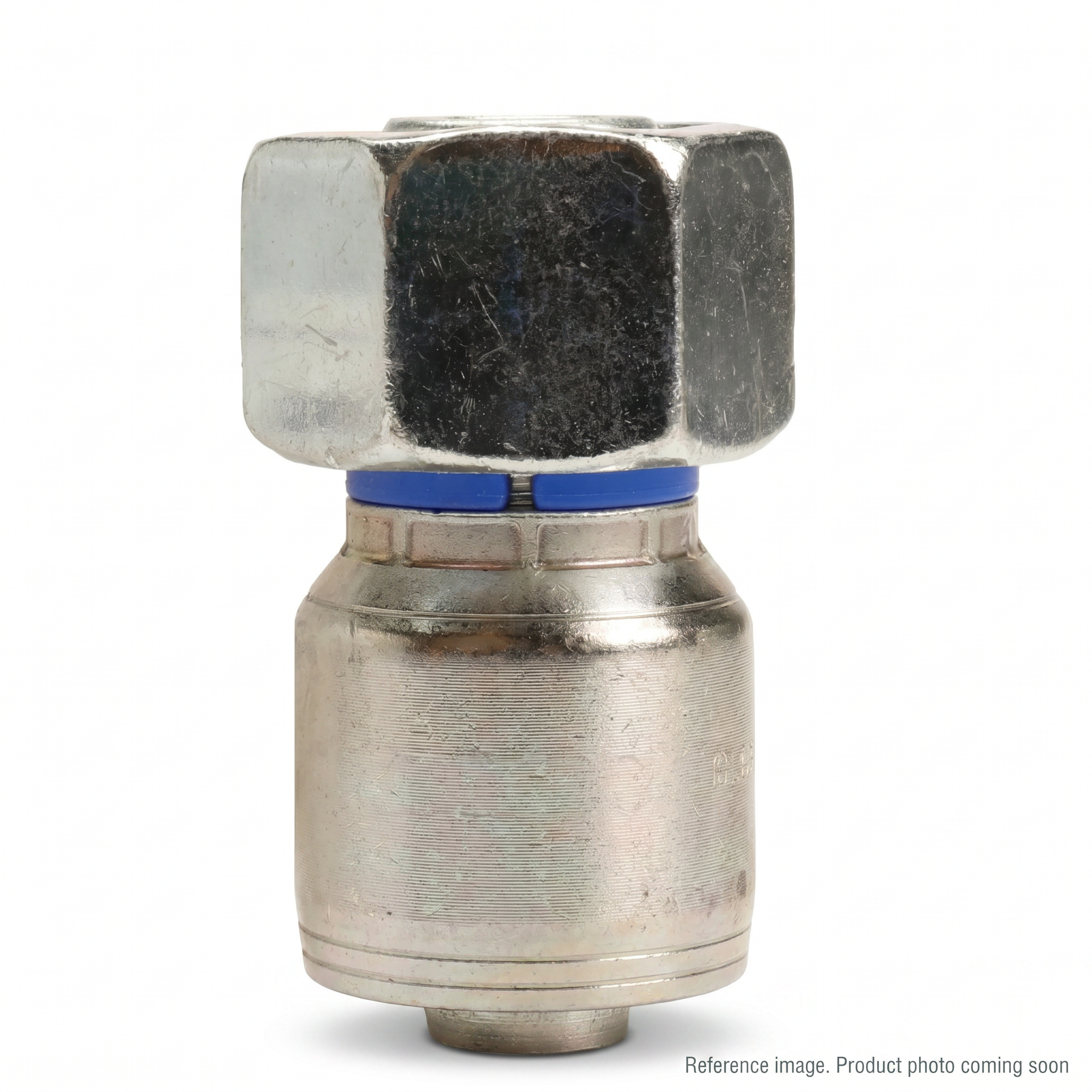

The 20442-36-16RW is a 45° metric female 24° cone O-ring spiral hose fitting (H.T. series), conforming to ISO 12151-2 / DIN 3865. OEM-spec replacement — manufactured to industry standards. Zinc-plated carbon steel, M36×2 thread, dash-16. Stocked in Kelowna, BC and ships Canada-wide.
Specifications
| Part Number | 20442-36-16RW |
|---|---|
| Type | 45° Metric Female 24° Cone O-Ring Spiral Hose Fitting |
| Standard | ISO 12151-2 / DIN 3865 |
| Thread | M36×2 |
| Hose Dash Size | -16 |
| Series | H.T. (Heavy Series, spiral hose) |
| Body Angle | 45° |
| Material | Carbon steel, zinc-plated |
| O-Ring | NBR (Buna-N) |
Fitment
Compatible with spiral hydraulic hose assemblies (4SP/4SH/R12) with M36×2 port connections. Verify all dimensions before installation.
FAQ
What is the 20442-36-16RW?
A 45° metric female 24° cone O-ring spiral hose fitting, M36×2, dash-16, per ISO 12151-2 / DIN 3865 H.T. series. Used on heavy-duty hydraulic hose systems in construction and agricultural equipment.
What does dash-16 mean?
Dash-16 (−16) corresponds to a 1-inch hose inner diameter.
What is the difference between 20441 and 20442 series?
20441 uses braided hose (L.T. light series). 20442 uses spiral hose (H.T. heavy series). The number encodes the fitting series and hose type.
Is this in stock in Canada?
Yes, stocked in Kelowna, BC, ships Canada-wide.
Fitment data available on request. Email sales@rentwithaim.ca with your machine year/make/model.
