OEM-spec 20491-30-12RW 90° Metric Female 24° Cone Hose Fitting
SKU 20491-30-12RW
In stock: 8 available · Ships from Kelowna BC
Verify fitment by part number before ordering.
Match the listed SKU and verified cross-references to your current part number. If fitment is not listed, send AIM Rentals the machine details and current part number before ordering.

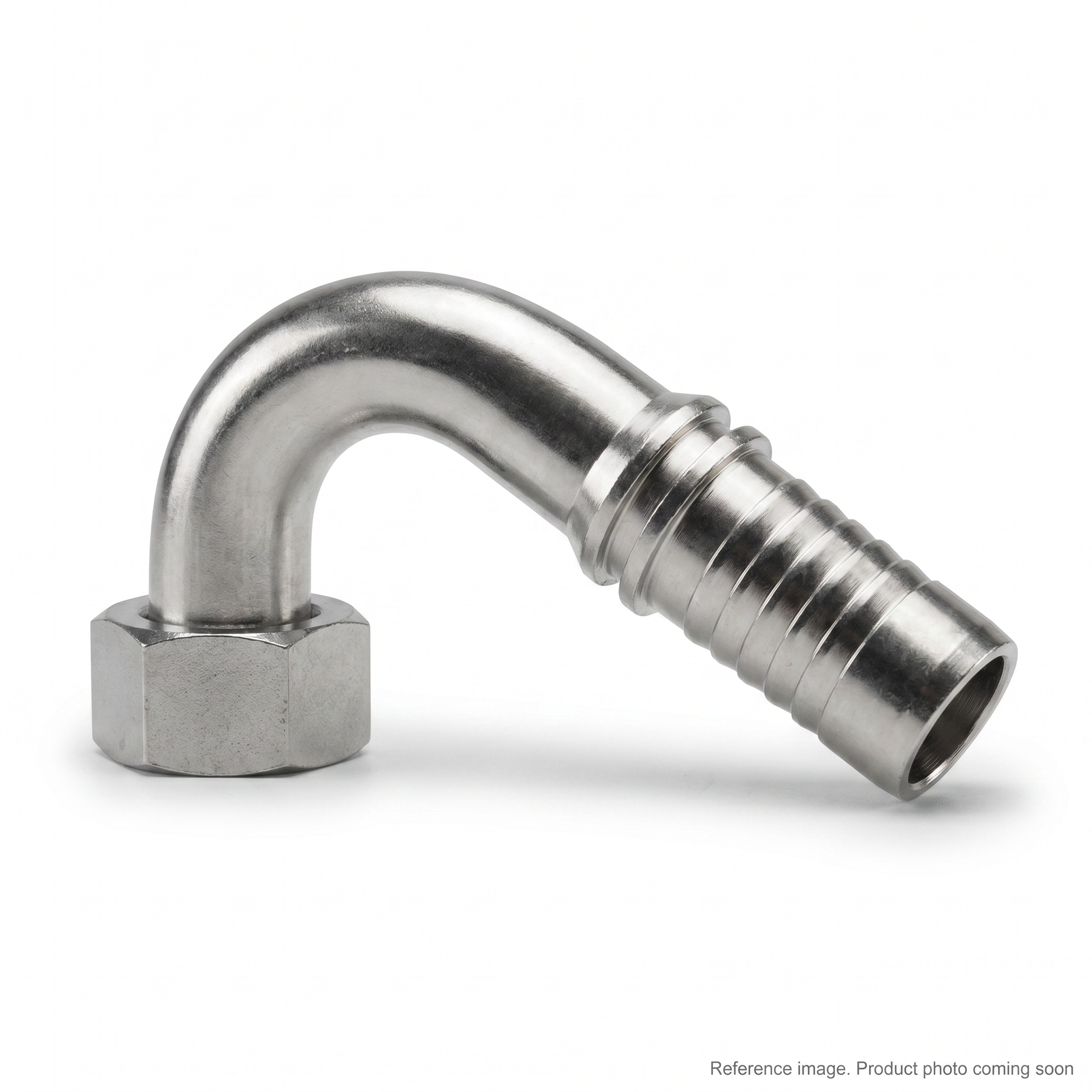

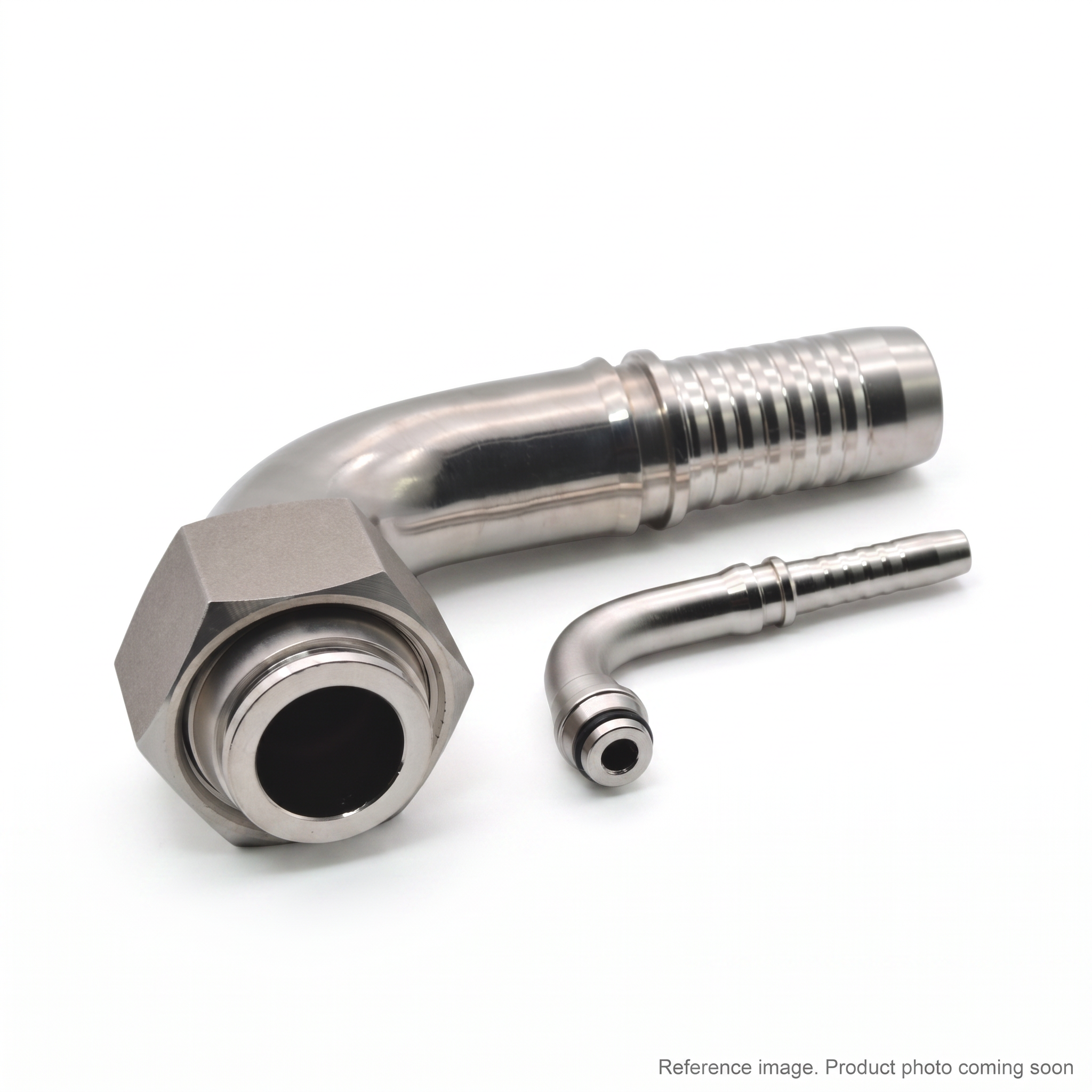

The 20491-30-12RW is a 90° metric female 24° cone O-ring L.T. hose fitting, ISO 12151-2 / DIN 3865. OEM-spec replacement — zinc-plated carbon steel, M30×2, dash-12. Stocked in Kelowna, BC, ships Canada-wide.
Specifications
| Part Number | 20491-30-12RW |
|---|---|
| Type | 90° Metric Female 24° Cone O-Ring L.T. Hose Fitting |
| Standard | ISO 12151-2 / DIN 3865 |
| Thread | M30×2 |
| Hose Dash Size | -12 (3/4") |
| Series | L.T. (Light Series, braided hose) |
| Body Angle | 90° |
| Material | Carbon steel, zinc-plated |
| O-Ring | NBR (Buna-N) |
Fitment
Compatible with braided hydraulic hose assemblies (1SN/2SN, EN853) with M30×2 port connections. Confirm all dimensions before installation.
FAQ
What is the 20491-30-12RW?
A 90° metric female 24° cone O-ring L.T. hose fitting, M30×2, dash-12 (3/4"), ISO 12151-2/DIN 3865. Used in hydraulic hose assemblies on excavators and construction equipment.
90° vs 45° fittings?
Use a 90° elbow where hose routing requires a right-angle turn to avoid sharp hose bends or interference with adjacent components.
L.T. vs H.T. series?
L.T. (20491) is for braided hoses. H.T. (20492) is for spiral hoses. Match series to hose type.
In stock in Canada?
Yes, stocked in Kelowna, BC, ships Canada-wide.
Fitment data available on request. Email sales@rentwithaim.ca with your machine year/make/model.
