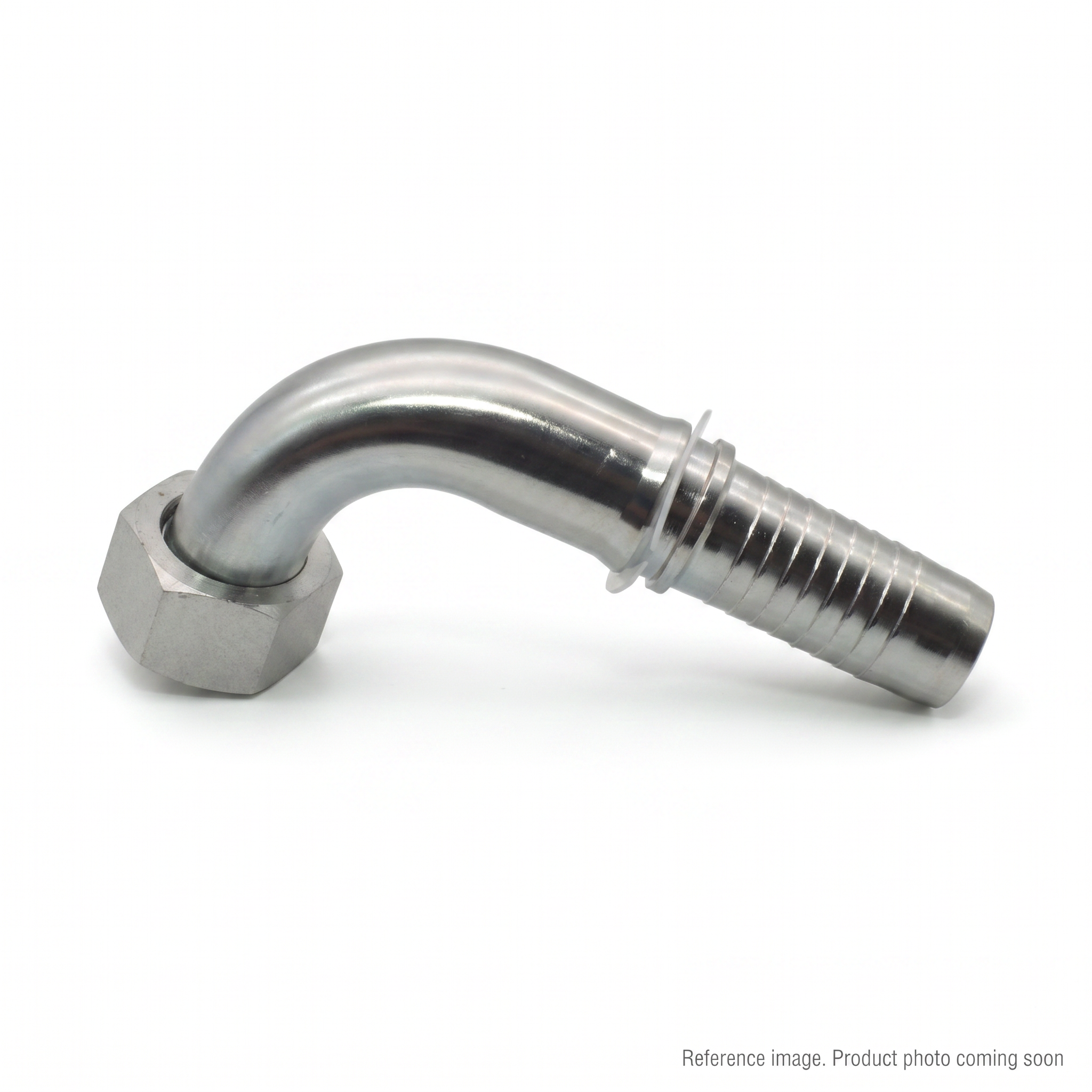

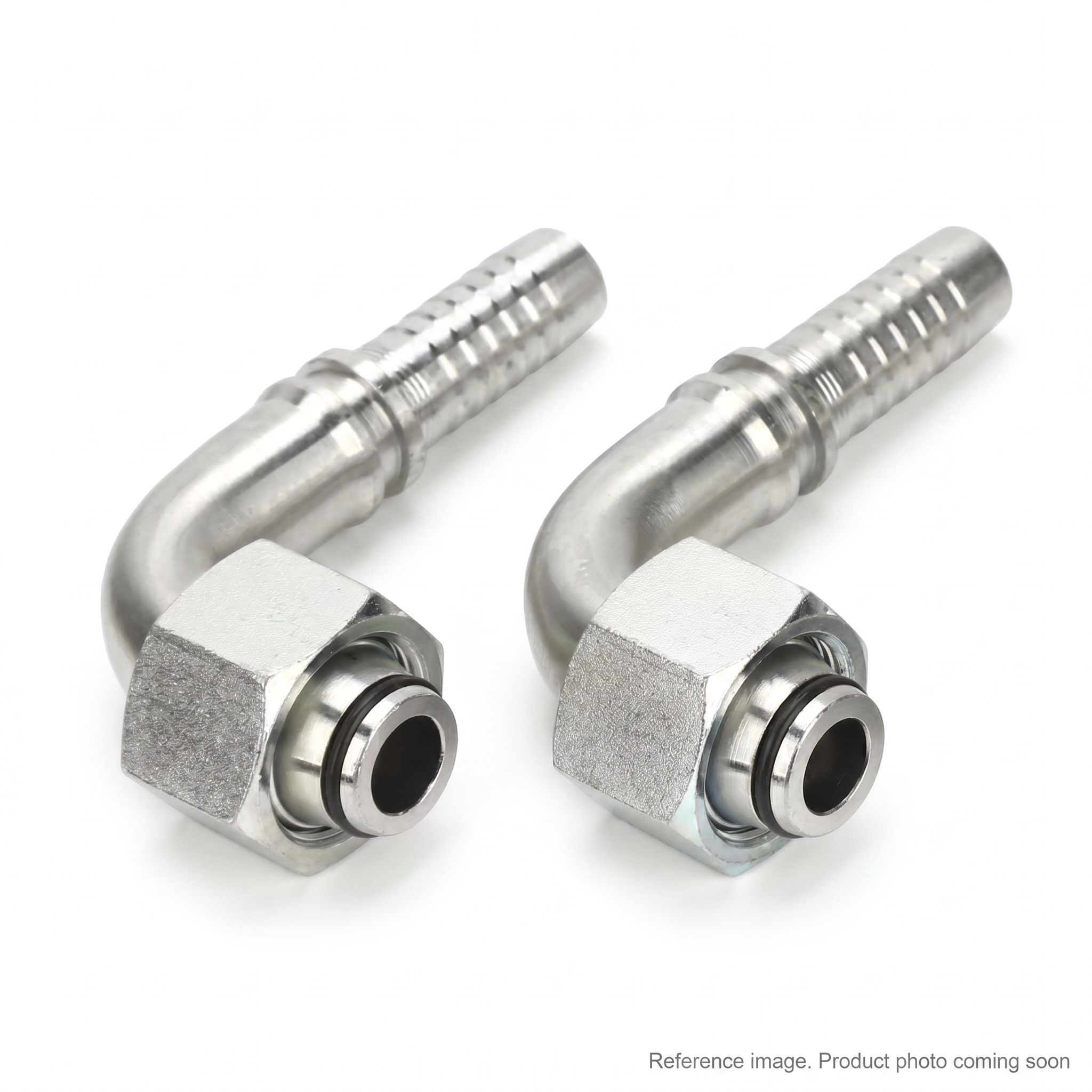

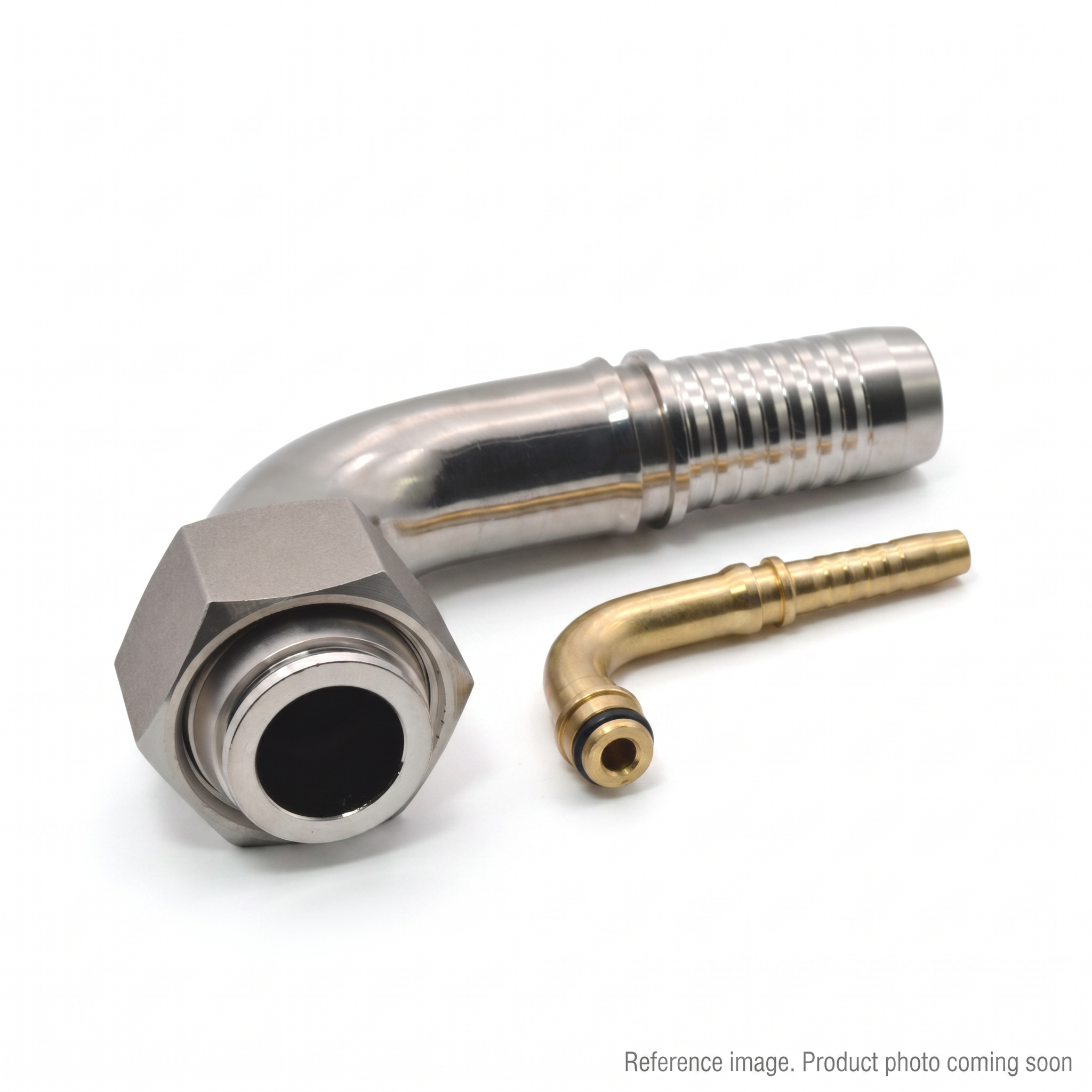

OEM-spec 20491-36-12RW 90° Metric Female 24° Cone Hose Fitting
SKU 20491-36-12RW
In stock: 7 available · Ships from Kelowna BC
Verify fitment by part number before ordering.
Match the listed SKU and verified cross-references to your current part number. If fitment is not listed, send AIM Rentals the machine details and current part number before ordering.
The 20491-36-12RW is a 90° metric female 24° cone O-ring L.T. hose fitting, ISO 12151-2 / DIN 3865. OEM-spec replacement — zinc-plated carbon steel, M36×2, dash-12. Stocked in Kelowna, BC, ships Canada-wide.
Specifications
| Part Number | 20491-36-12RW |
|---|---|
| Type | 90° Metric Female 24° Cone O-Ring L.T. Hose Fitting |
| Standard | ISO 12151-2 / DIN 3865 |
| Thread | M36×2 |
| Hose Dash Size | -12 (3/4") |
| Series | L.T. (Light Series, braided hose) |
| Body Angle | 90° |
| Material | Carbon steel, zinc-plated |
| O-Ring | NBR (Buna-N) |
Fitment
Compatible with braided hydraulic hose assemblies (1SN/2SN) with M36×2 port connections. Confirm all dimensions before installation.
FAQ
What is the 20491-36-12RW?
A 90° metric female 24° cone O-ring L.T. hose fitting, M36×2, dash-12, per ISO 12151-2/DIN 3865. For braided hose systems on excavators, loaders, and agricultural machinery.
Why use a 90° elbow fitting?
Use a 90° elbow where hose routing requires a right-angle direction change to reduce hose strain and avoid sharp bends near a port.
L.T. vs H.T. series?
L.T. (20491) is for braided hoses. H.T. (20492) is for spiral hoses.
In stock in Canada?
Yes, stocked in Kelowna, BC, ships Canada-wide.
Fitment data available on request. Email sales@rentwithaim.ca with your machine year/make/model.
