OEM-spec 20492-36-16RW 90° Metric Female 24° Cone Spiral Hose Fitting
SKU 20492-36-16RW
In stock: 5 available · Ships from Kelowna BC
Verify fitment by part number before ordering.
Match the listed SKU and verified cross-references to your current part number. If fitment is not listed, send AIM Rentals the machine details and current part number before ordering.

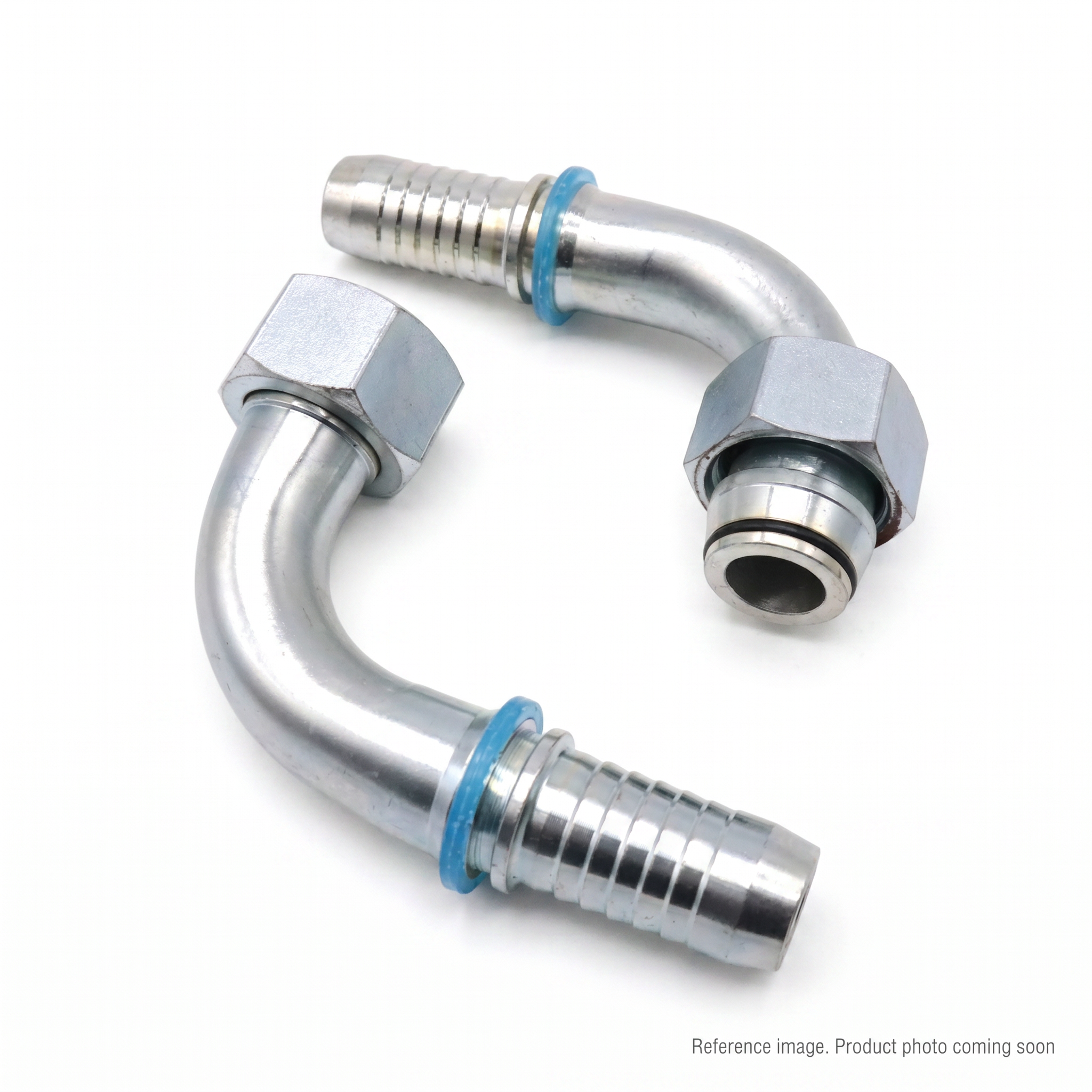

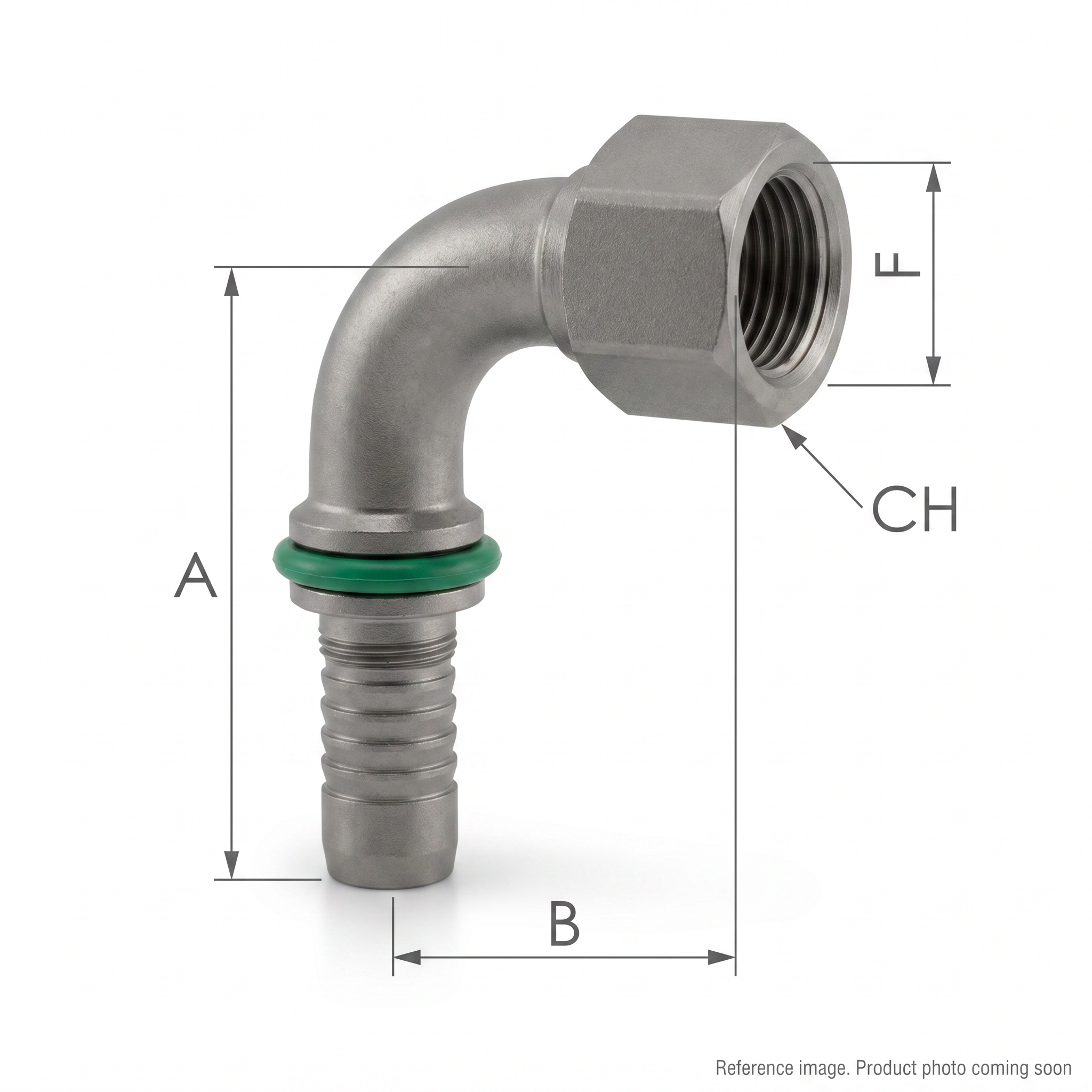

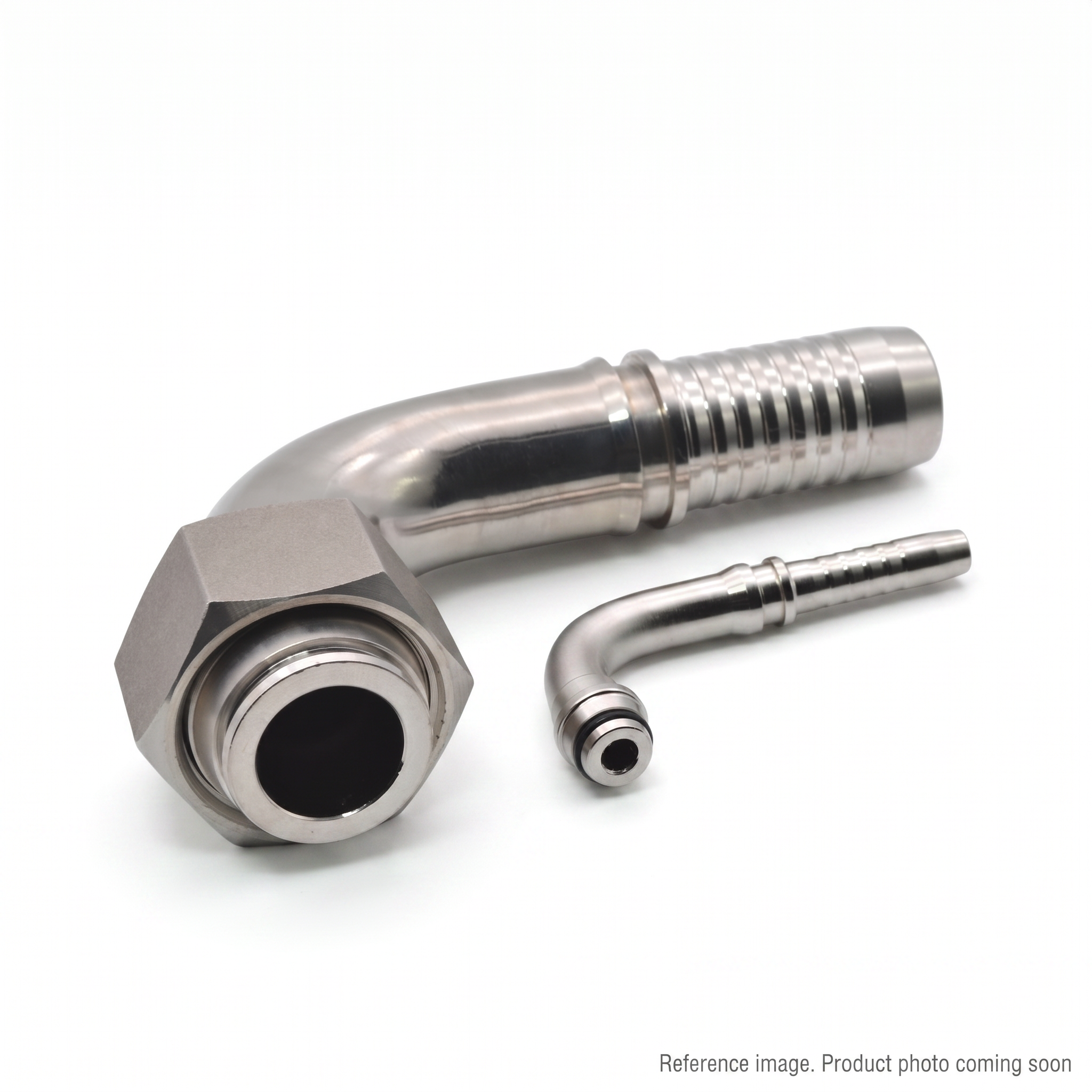

The 20492-36-16RW is a 90° metric female 24° cone O-ring H.T. spiral hose fitting, ISO 12151-2 / DIN 3865. OEM-spec replacement — zinc-plated carbon steel, M36×2, dash-16. Stocked in Kelowna, BC, ships Canada-wide.
Specifications
| Part Number | 20492-36-16RW |
|---|---|
| Type | 90° Metric Female 24° Cone O-Ring H.T. Spiral Hose Fitting |
| Standard | ISO 12151-2 / DIN 3865 |
| Thread | M36×2 |
| Hose Dash Size | -16 (1") |
| Series | H.T. (Heavy Series, spiral hose) |
| Body Angle | 90° |
| Material | Carbon steel, zinc-plated |
| O-Ring | NBR (Buna-N) |
Fitment
Compatible with spiral hydraulic hose assemblies (4SP/4SH/R12) with M36×2 port connections. Confirm all dimensions before installation.
FAQ
What is the 20492-36-16RW?
A 90° metric female 24° cone O-ring H.T. spiral fitting, M36×2, dash-16 (1"), ISO 12151-2/DIN 3865. For high-pressure spiral hose assemblies on excavators and construction equipment.
Why use a 90° elbow fitting?
Use a 90° elbow where hose routing requires a right-angle turn to avoid sharp bends near a port.
L.T. vs H.T. series?
L.T. (20491) is for braided hoses. H.T. (20492) is for spiral hoses.
In stock in Canada?
Yes, stocked in Kelowna, BC, ships Canada-wide.
Fitment data available on request. Email sales@rentwithaim.ca with your machine year/make/model.
