OEM-spec 20492-45-16RW 90° Metric Female 24° Cone Spiral Hose Fitting
SKU 20492-45-16RW
In stock: 4 available · Ships from Kelowna BC
Verify fitment by part number before ordering.
Match the listed SKU and verified cross-references to your current part number. If fitment is not listed, send AIM Rentals the machine details and current part number before ordering.

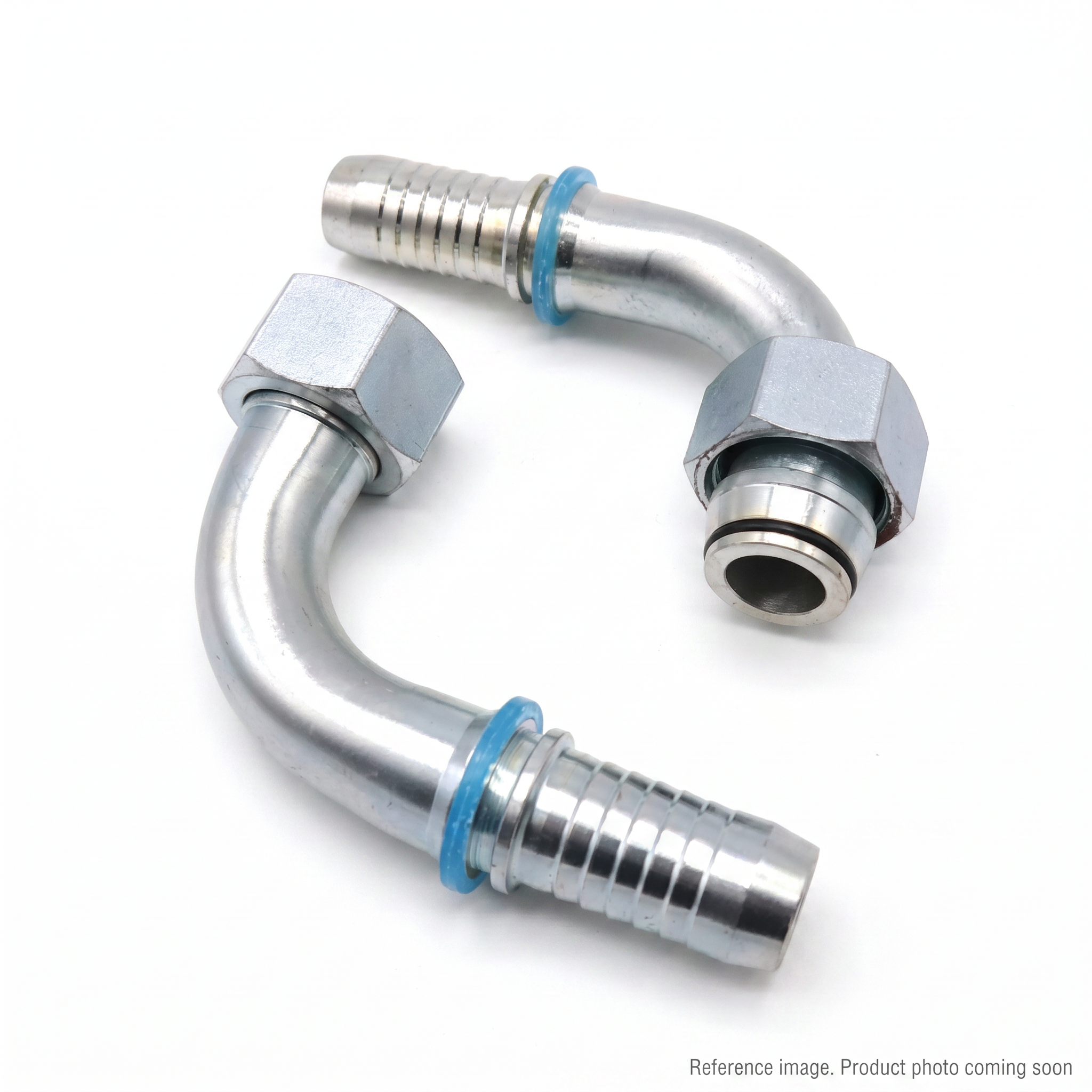

The 20492-45-16RW is a 90° metric female 24° cone O-ring H.T. spiral hose fitting, ISO 12151-2 / DIN 3865. OEM-spec replacement — zinc-plated carbon steel, M45×2, dash-16. Stocked in Kelowna, BC, ships Canada-wide.
Specifications
| Part Number | 20492-45-16RW |
|---|---|
| Type | 90° Metric Female 24° Cone O-Ring H.T. Spiral Hose Fitting |
| Standard | ISO 12151-2 / DIN 3865 |
| Thread | M45×2 |
| Hose Dash Size | -16 (1") |
| Series | H.T. (Heavy Series, spiral hose) |
| Body Angle | 90° |
| Material | Carbon steel, zinc-plated |
| O-Ring | NBR (Buna-N) |
Fitment
Compatible with spiral hydraulic hose assemblies (4SP/4SH/R12) with M45×2 port connections. Confirm all dimensions before installation.
FAQ
What is the 20492-45-16RW?
A 90° metric female 24° cone O-ring H.T. spiral fitting, M45×2, dash-16 (1"), ISO 12151-2/DIN 3865. Used on heavy-duty hydraulic hose systems in large construction and agricultural equipment.
Why use a 90° elbow?
90° elbows enable right-angle hose routing where space constraints require turning the hose without sharp bends.
L.T. vs H.T. series?
L.T. (20491) is for braided hoses. H.T. (20492) is for spiral hoses.
In stock in Canada?
Yes, stocked in Kelowna, BC, ships Canada-wide.
Fitment data available on request. Email sales@rentwithaim.ca with your machine year/make/model.
