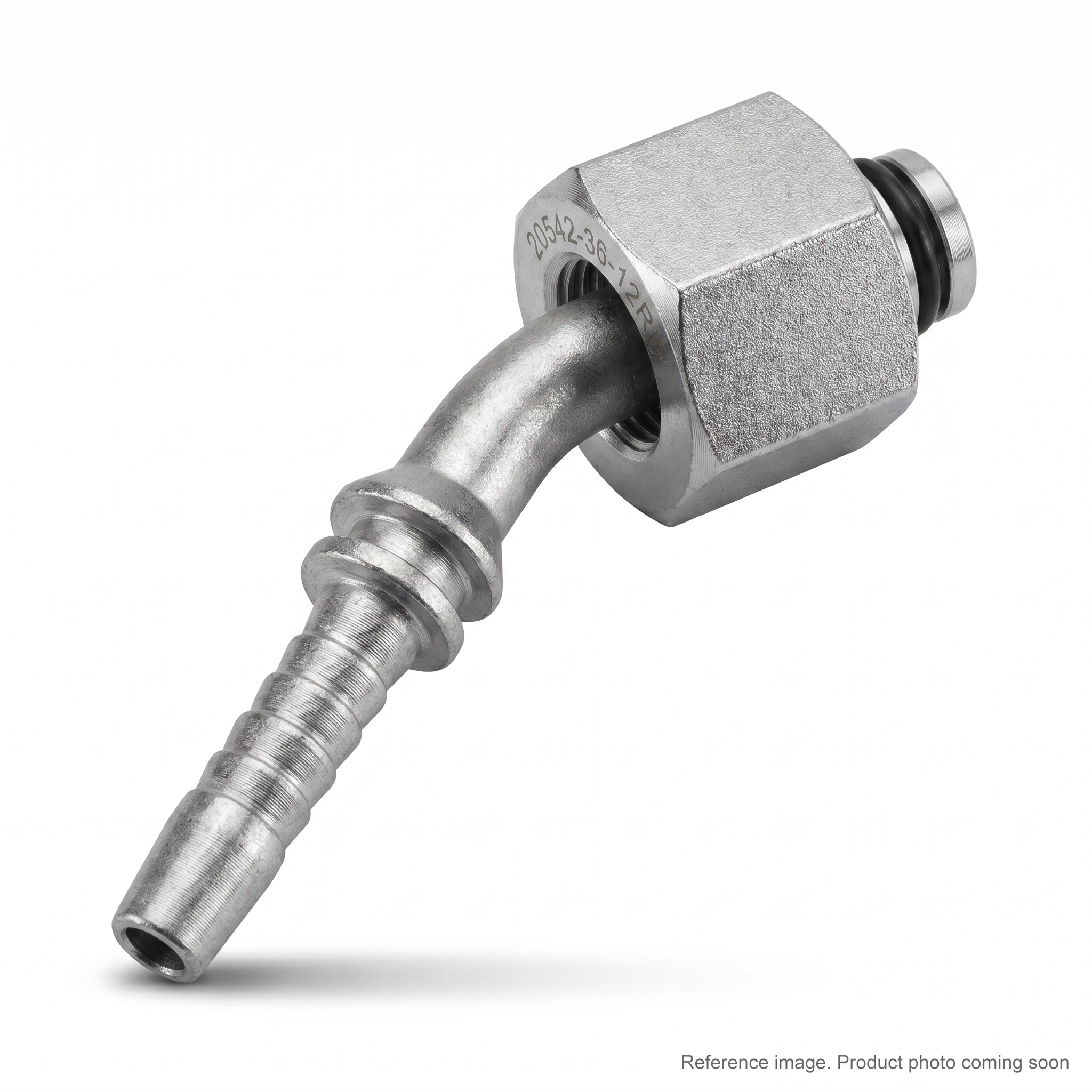

OEM-spec 20542-36-12RW 45° Metric Female 24° Cone H.T. Spiral Fitting
SKU 20542-36-12RW
In stock: 8 available · Ships from Kelowna BC
Verify fitment by part number before ordering.
Match the listed SKU and verified cross-references to your current part number. If fitment is not listed, send AIM Rentals the machine details and current part number before ordering.
The 20542-36-12RW is a 45° metric female 24° cone O-ring H.T. spiral hose fitting (DKOS-style), ISO 12151-2 / DIN 3865. OEM-spec replacement — zinc-plated carbon steel, M36×2, dash-12. Stocked in Kelowna, BC, ships Canada-wide.
Specifications
| Part Number | 20542-36-12RW |
|---|---|
| Type | 45° Metric Female 24° Cone O-Ring H.T. Spiral Hose Fitting (DKOS) |
| Standard | ISO 12151-2 / DIN 3865 |
| Thread | M36×2 |
| Hose Dash Size | -12 (3/4") |
| Series | H.T. Spiral (DKOS-style) |
| Body Angle | 45° |
| Material | Carbon steel, zinc-plated |
| O-Ring | NBR (Buna-N) |
Fitment
Compatible with spiral hydraulic hose assemblies (4SP/4SH/R12) with M36×2 port connections. DKO/DKOS-style fitting for high-pressure applications. Confirm all dimensions before installation.
FAQ
What is the 20542-36-12RW?
A 45° metric female 24° cone O-ring H.T. spiral hose fitting, DKOS-style, M36×2, dash-12, ISO 12151-2/DIN 3865.
What is DKOS?
DKOS is the heavy-series (H.T.) metric 24° cone fitting designation for spiral hose. It provides higher pressure ratings than the light-series DKOL.
RW vs TZ vs T suffix?
RW = zinc-plated (galvanized). TZ = similar surface treatment. T = standard carbon steel. All refer to surface finish variants.
In stock in Canada?
Yes, stocked in Kelowna, BC, ships Canada-wide.
Fitment data available on request. Email sales@rentwithaim.ca with your machine year/make/model.
