OEM-spec 20542-42-16RW 45° Metric Female 24° Cone H.T. Spiral Fitting
SKU 20542-42-16RW
In stock: 5 available · Ships from Kelowna BC
Verify fitment by part number before ordering.
Match the listed SKU and verified cross-references to your current part number. If fitment is not listed, send AIM Rentals the machine details and current part number before ordering.

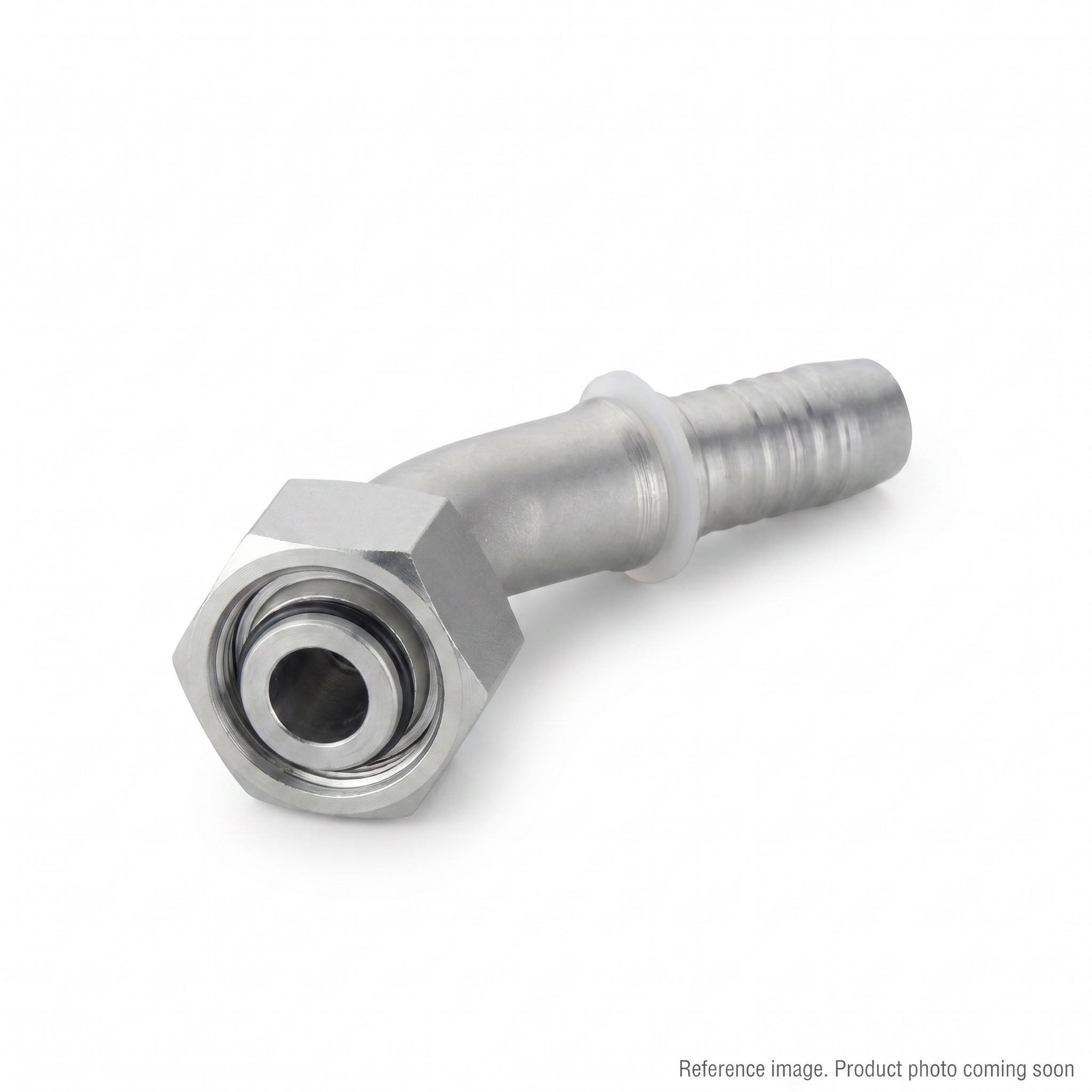

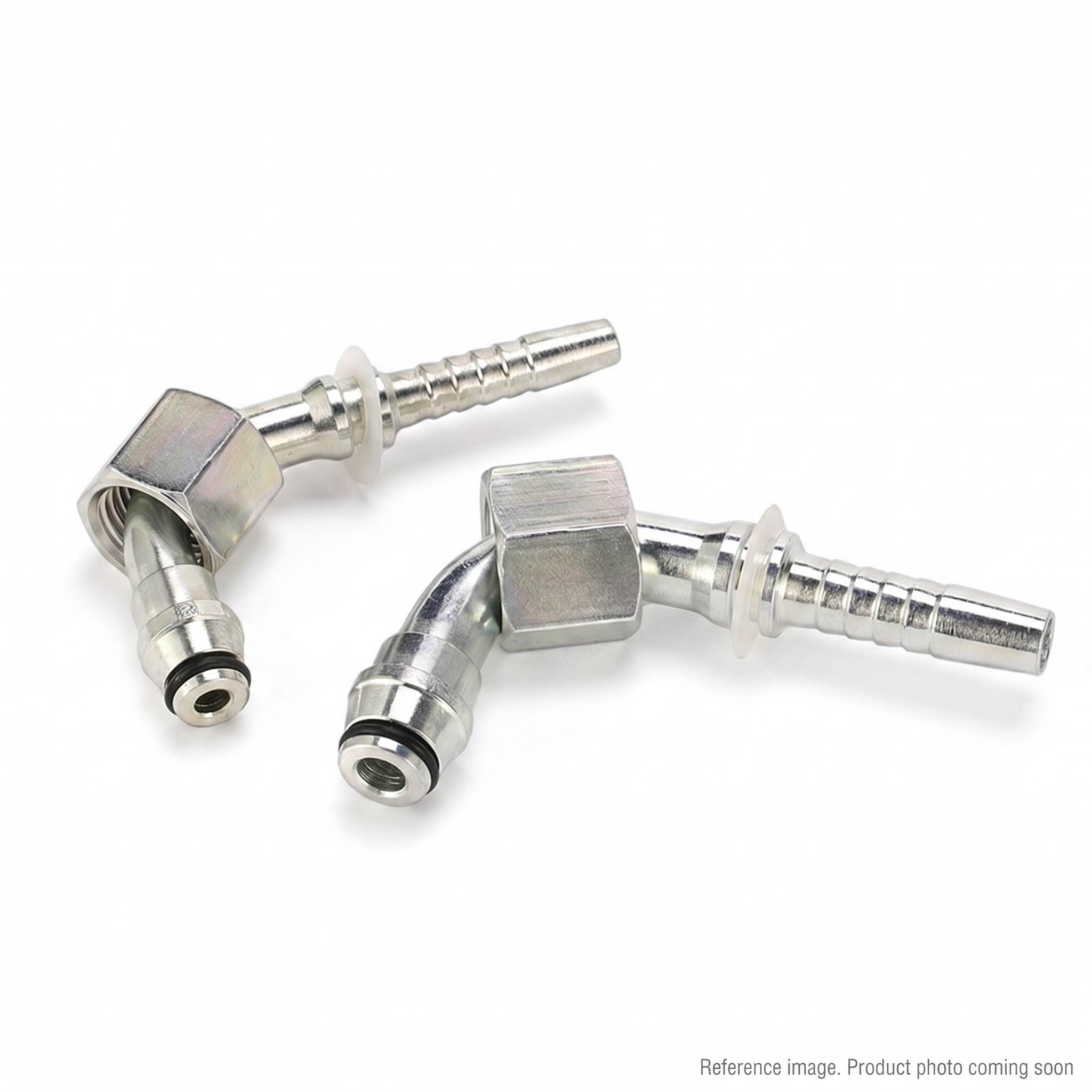

The 20542-42-16RW is a 45° metric female 24° cone O-ring H.T. spiral hose fitting, ISO 12151-2 / DIN 3865. OEM-spec replacement — zinc-plated carbon steel, M42×2, dash-16. Stocked in Kelowna, BC, ships Canada-wide.
Specifications
| Part Number | 20542-42-16RW |
|---|---|
| Type | 45° Metric Female 24° Cone O-Ring H.T. Spiral Hose Fitting |
| Standard | ISO 12151-2 / DIN 3865 |
| Thread | M42×2 |
| Hose Dash Size | -16 (1") |
| Series | H.T. Spiral |
| Body Angle | 45° |
| Material | Carbon steel, zinc-plated |
| O-Ring | NBR (Buna-N) |
Fitment
Compatible with spiral hydraulic hose assemblies (4SP/4SH/R12) with M42×2 port connections. Confirm all dimensions before installation.
FAQ
What is the 20542-42-16RW?
A 45° metric female 24° cone O-ring H.T. spiral fitting, M42×2, dash-16 (1"), ISO 12151-2/DIN 3865. Used in large hydraulic systems on excavators and heavy equipment.
What does dash-16 mean?
Dash-16 corresponds to a 1-inch hose inner diameter.
H.T. vs L.T.?
H.T. spiral (20542) is for spiral hoses (4SP/4SH/R12). L.T. braided (20441/20541) is for braided hoses.
In stock in Canada?
Yes, stocked in Kelowna, BC, ships Canada-wide.
Fitment data available on request. Email sales@rentwithaim.ca with your machine year/make/model.
