OEM-spec 26742-20-20RW JIC Female Swivel 45° Elbow Fitting | Dash-20
SKU 26742-20-20RW
In stock: 8 available · Ships from Kelowna BC
Verify fitment by part number before ordering.
Match the listed SKU and verified cross-references to your current part number. If fitment is not listed, send AIM Rentals the machine details and current part number before ordering.

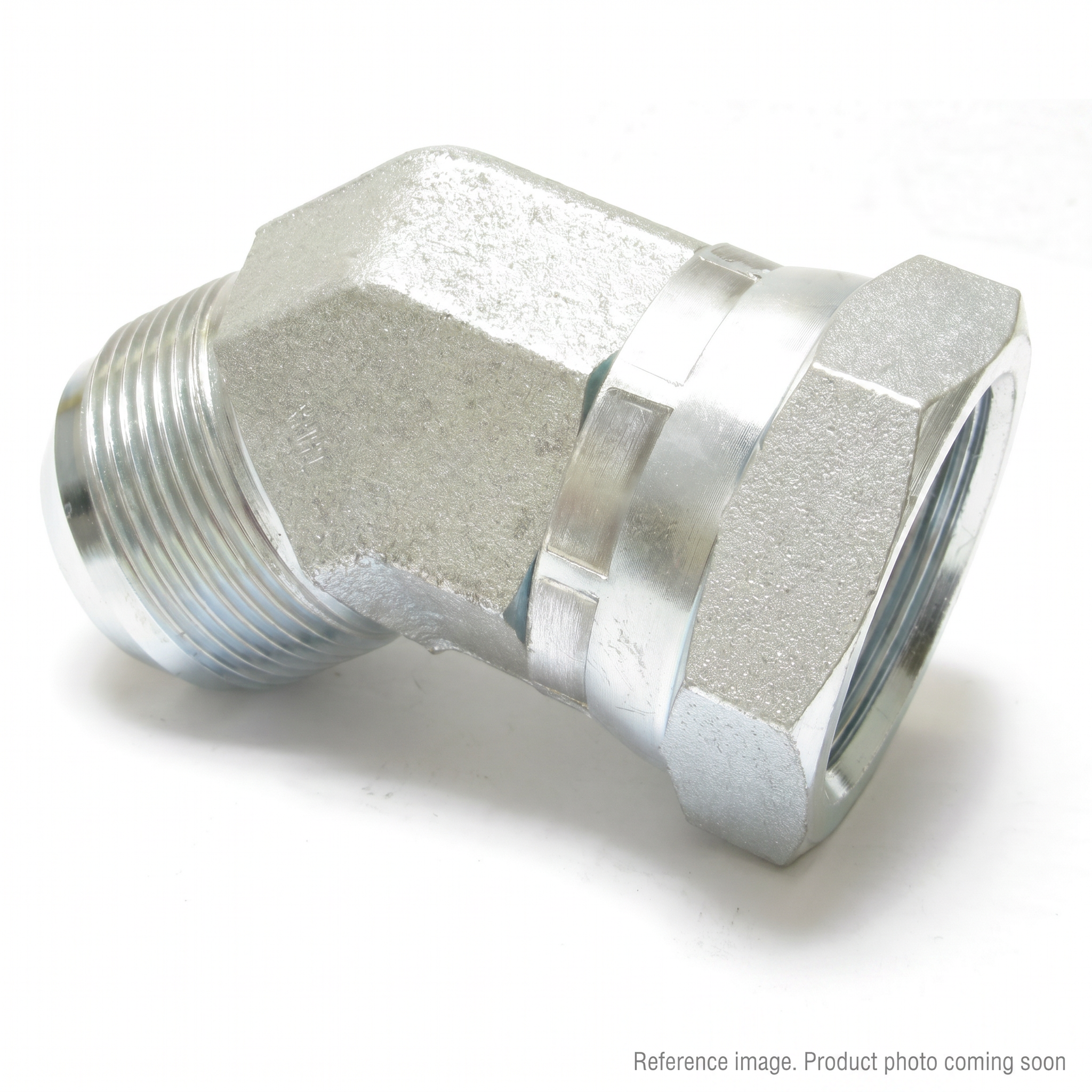

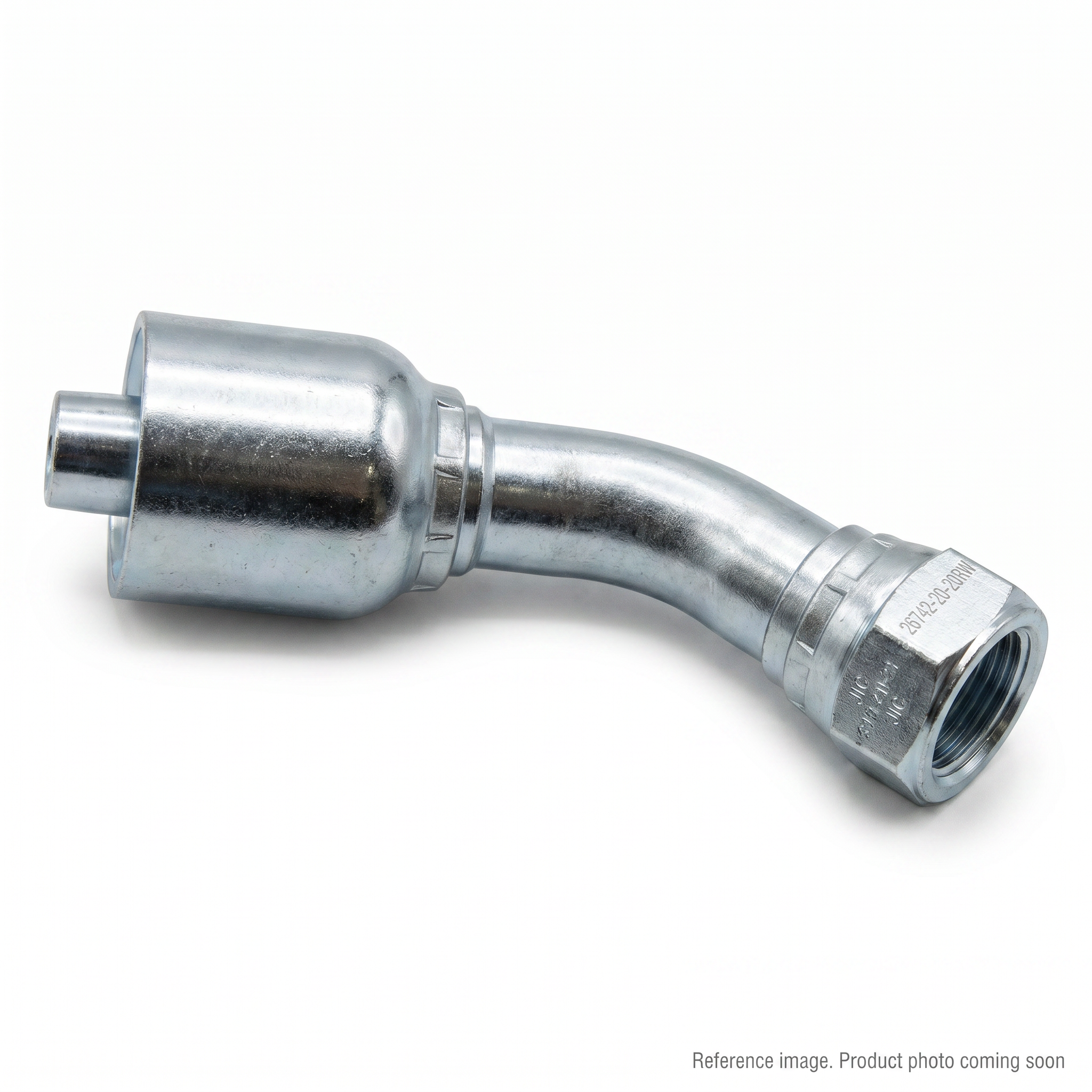

OEM-spec 26742-20-20RW JIC Female Swivel 45° Elbow Hydraulic Hose Fitting — Dash-20
Part number 26742-20-20RW is an OEM-spec replacement JIC 37° female swivel 45-degree elbow hydraulic hose fitting made to the Eaton/Winner 26742 series dimensional standard. Dash-20 hose bore (1-1/4” ID / 32 mm DN), 1-5/8”-12 JIC thread. Used in large-bore hydraulic hose assemblies on heavy equipment. Stocked at AIM Rentals in Kelowna, BC — ships Canada-wide.
Specifications
- Part Number: 26742-20-20RW
- Series: 26742 (JIC 37° Female Swivel 45° Elbow)
- Thread: 1-5/8”-12 JIC 37°
- Hose Size: Dash-20 (1-1/4” ID, 32 mm DN)
- Style: 45° elbow swivel
- Material: Carbon steel
Fitment
Suitable for heavy equipment hydraulic hose assemblies requiring a Dash-20, JIC 45-degree female elbow connection. Compatible with Eaton EC115/EC215 hose series equivalent.
Cross-References
- Parker 13773-20-20 (Parker 73 Series equivalent)
- Hainar 26742H-20-20RW
- Eaton/Winner 26742-20-20 (without RW suffix)
FAQ
- What is the difference between 26742 and 26712?
- The 26742 series is a 45-degree elbow version; the 26712 series is a straight fitting. Both are JIC female swivel.
- Is this interchangeable with Parker 13773-20-20?
- Parker 13773-20-20 (73 Series) is listed as a cross-reference. Verify dimensions before substitution.
- Ships Canada-wide?
- Yes, from Kelowna BC.
- Is this a genuine Eaton fitting?
- This is an OEM-spec replacement to the Eaton/Winner 26742 dimensional standard. Contact AIM Rentals if OEM is required.
Fitment data available on request. Email sales@rentwithaim.ca with your machine year/make/model.
