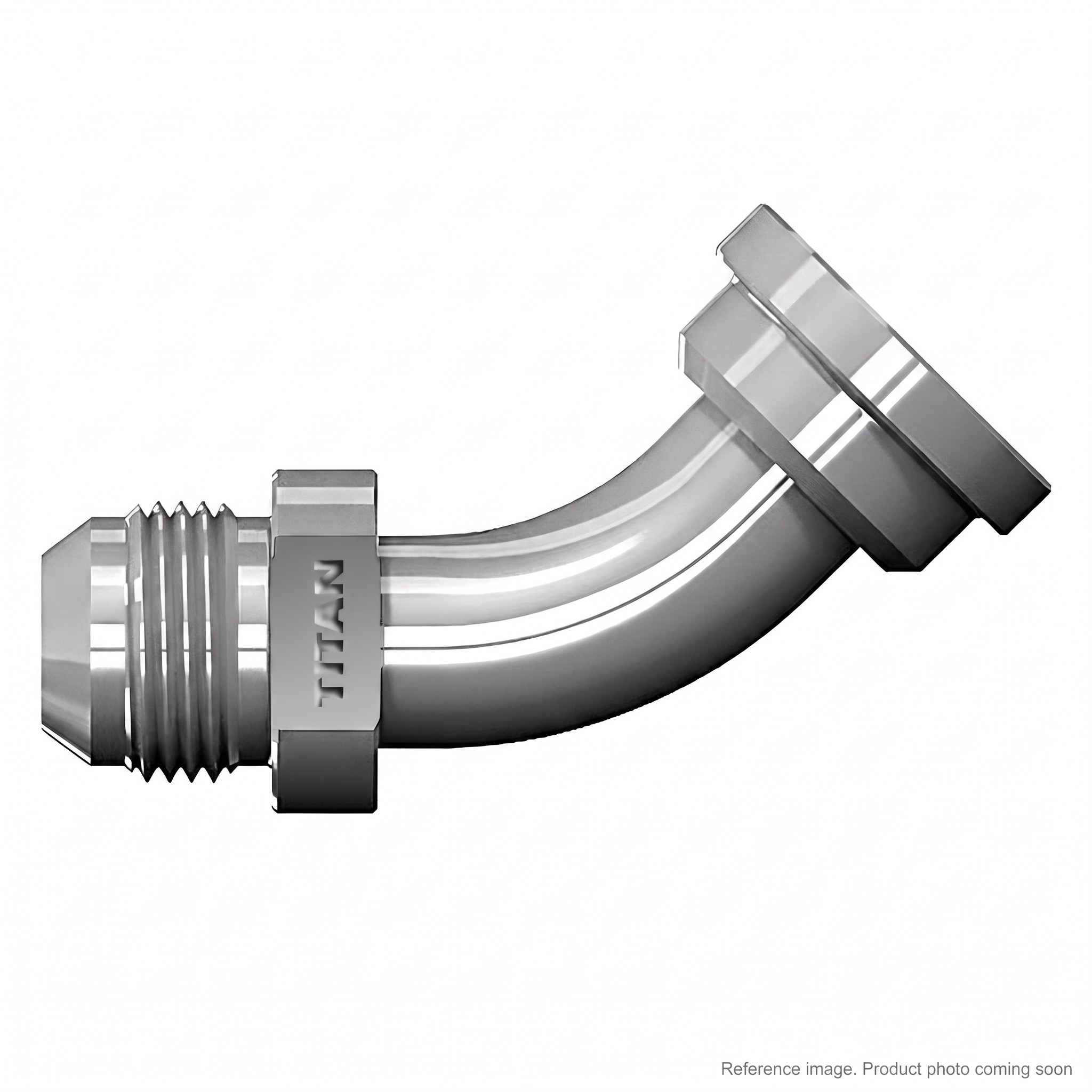

OEM-spec 87342-20-16RW 45° SAE Code 61 Flange Fitting | 1-1/4in x 1in
SKU 87342-20-16RW
In stock: 4 available · Ships from Kelowna BC
Verify fitment by part number before ordering.
Match the listed SKU and verified cross-references to your current part number. If fitment is not listed, send AIM Rentals the machine details and current part number before ordering.
The 87342-20-16RW is an OEM-spec replacement 45-degree SAE Code 61 hydraulic flange fitting, 1-1/4in (DN32) flange size with a 1in (-16) hose bore. Built to ISO 12151-3 / SAE J518 Code 61 standards for medium-pressure hydraulic hose assemblies up to 3,000–5,000 PSI depending on size. Stocked at AIM Rentals' Kelowna, BC facility and ships Canada-wide.
Specifications
- Part Number: 87342-20-16RW
- Type: 45-Degree SAE Code 61 Flange Head Hose Fitting
- Flange Size: 1-1/4in (20 / DN32)
- Hose I.D.: 1in (-16)
- Standard: ISO 12151-3 / SAE J516 / SAE J518
- Pressure Rating: SAE Code 61 (3,000–4,000 PSI at 1-1/4in size)
- Material: Carbon steel
Fitment
SAE Code 61 split-flange connections are used across a wide range of heavy mobile hydraulic equipment including excavators, wheel loaders, motor graders, and agricultural machinery wherever 4-bolt SAE J518 Code 61 flange ports are present. Confirm hose bore and flange size against your machine's hydraulic circuit before ordering.
Cross-References
The 87342-20-16RW follows the industry-standard SAE flange fitting part-number convention. Equivalent configurations may be found under supplier-specific part numbers for the same ISO 12151-3 45° Code 61 fitting in 1-1/4in x 1in size.
FAQ
- What is the difference between SAE Code 61 and Code 62?
- Code 61 is rated for standard pressure (3,000–5,000 PSI depending on size); Code 62 is high pressure (6,000 PSI). The bolt patterns are different and not interchangeable.
- Is this a genuine OEM part?
- This is an OEM-spec replacement built to ISO 12151-3 / SAE J518 dimensions — the part number follows the industry-standard convention used across many hydraulic fitting suppliers.
- Where is this stocked?
- Stocked at AIM Rentals' Kelowna, BC warehouse. Ships Canada-wide; same-business-day dispatch on orders placed before 2 PM Pacific.
- How do I confirm fitment?
- Check your machine's hydraulic line specification for flange size, hose I.D., and pressure code. Email sales@rentwithaim.ca with your machine make, model, and circuit details for assistance.
Fitment data available on request. Email sales@rentwithaim.ca with your machine year/make/model.
