Genuine Adaptall 9058-08-08 Hydraulic Adapter | 1/2" Male JIC × 1/2" Male BSPP 45°
SKU 9058-08-08
In stock: 1 available · Ships from Kelowna BC
Verify fitment by part number before ordering.
Match the listed SKU and verified cross-references to your current part number. If fitment is not listed, send AIM Rentals the machine details and current part number before ordering.
Genuine Adaptall 9058-08-08 Hydraulic Adapter | 1/2" Male JIC × 1/2" Male BSPP 45°

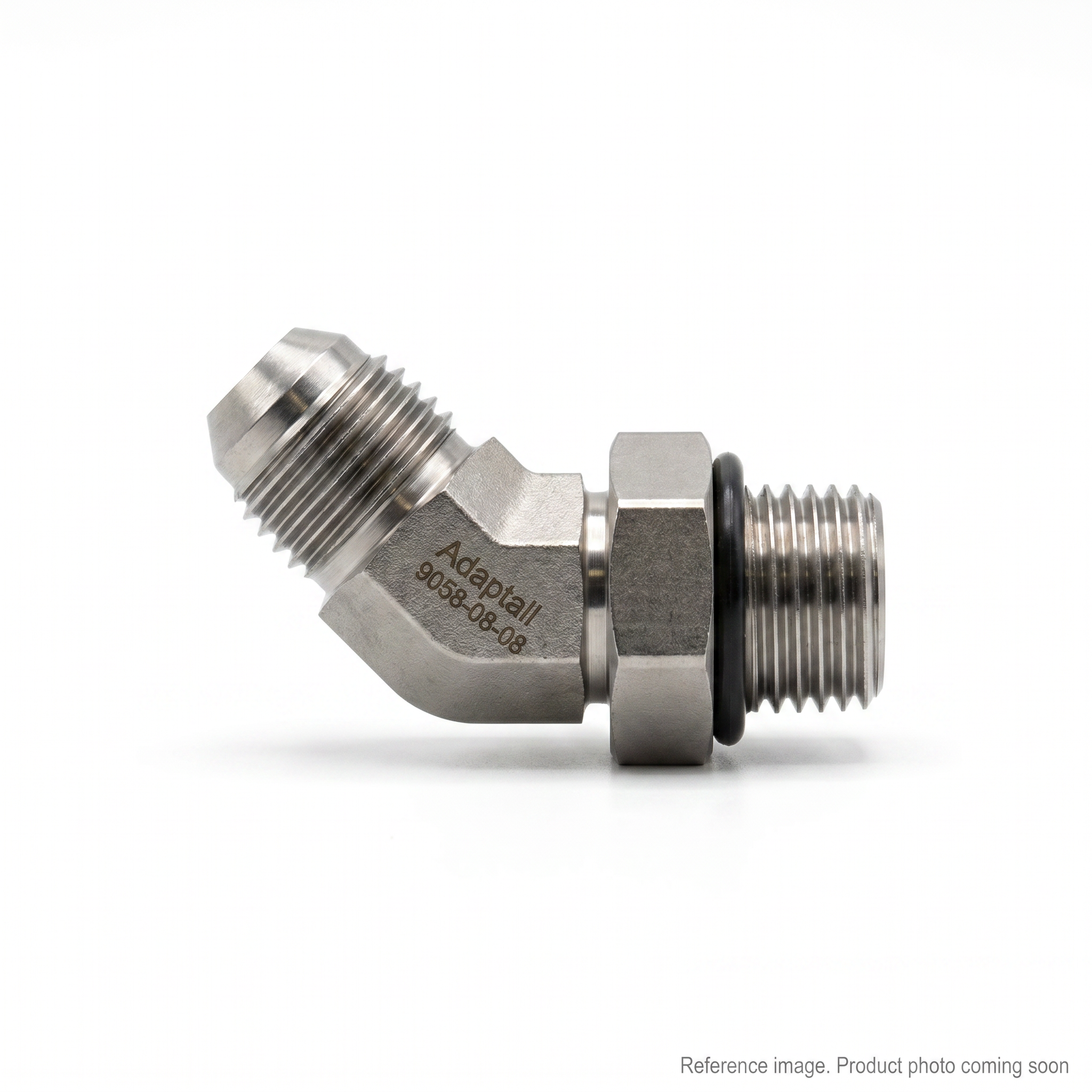

The Adaptall 9058-08-08 is a 45-degree elbow hydraulic adapter connecting a 1/2-inch male JIC (-08) hose end to a 1/2-inch male BSPP (-08) port with O-ring seal. Carbon steel construction with trivalent zinc plating. Stocked in Kelowna, BC and ships Canada-wide.
Specifications
- Part Number: 9058-08-08
- Type: 45° Elbow Hydraulic Adapter
- Side 1: 1/2" Male JIC (3/4-16 UNF)
- Side 2: 1/2" Male BSPP (1/2-14 BSP, with O-ring)
- Angle: 45°
- Thread Size (JIC): 3/4-16 UNF | Thread Size (BSPP): 1/2-14
- Length: 1.30 in.
- Material: Carbon steel (12L14, 12L15)
- Max Working Pressure: 4,000 PSI
Cross-References
- Brennan: 7102-08-08-NWO-FG
- Fittings Unlimited: BPP-MJ-6802-08-08-NWO
- Parker: 8-8V4OMXS
- Tompkins: 3802-08-08
Fitment
- JIC to BSPP 45° elbow hydraulic connections
- Heavy mobile and industrial equipment hydraulic systems
FAQ
How is the 9058-08-08 different from the 9058-06-06?
The 9058-08-08 is a 1/2-inch version (-08 dash size on both sides) while the 9058-06-06 is 3/8-inch (-06 on both sides). Otherwise both are 45-degree JIC-to-BSPP elbow adapters with O-ring seals.
Is this in stock in Canada?
Yes. AIM Rentals stocks the Adaptall 9058-08-08 in Kelowna, BC and ships Canada-wide.
Fitment data available on request. Email sales@rentwithaim.ca with your machine year/make/model.
