Genuine Adaptall 9068-08-16 Hydraulic Adapter | 1/2" Male JIC × M16 Male Metric
SKU 9068-08-16
In stock: 2 available · Ships from Kelowna BC
Verify fitment by part number before ordering.
Match the listed SKU and verified cross-references to your current part number. If fitment is not listed, send AIM Rentals the machine details and current part number before ordering.
Genuine Adaptall 9068-08-16 Hydraulic Adapter | 1/2" Male JIC × M16 Male Metric

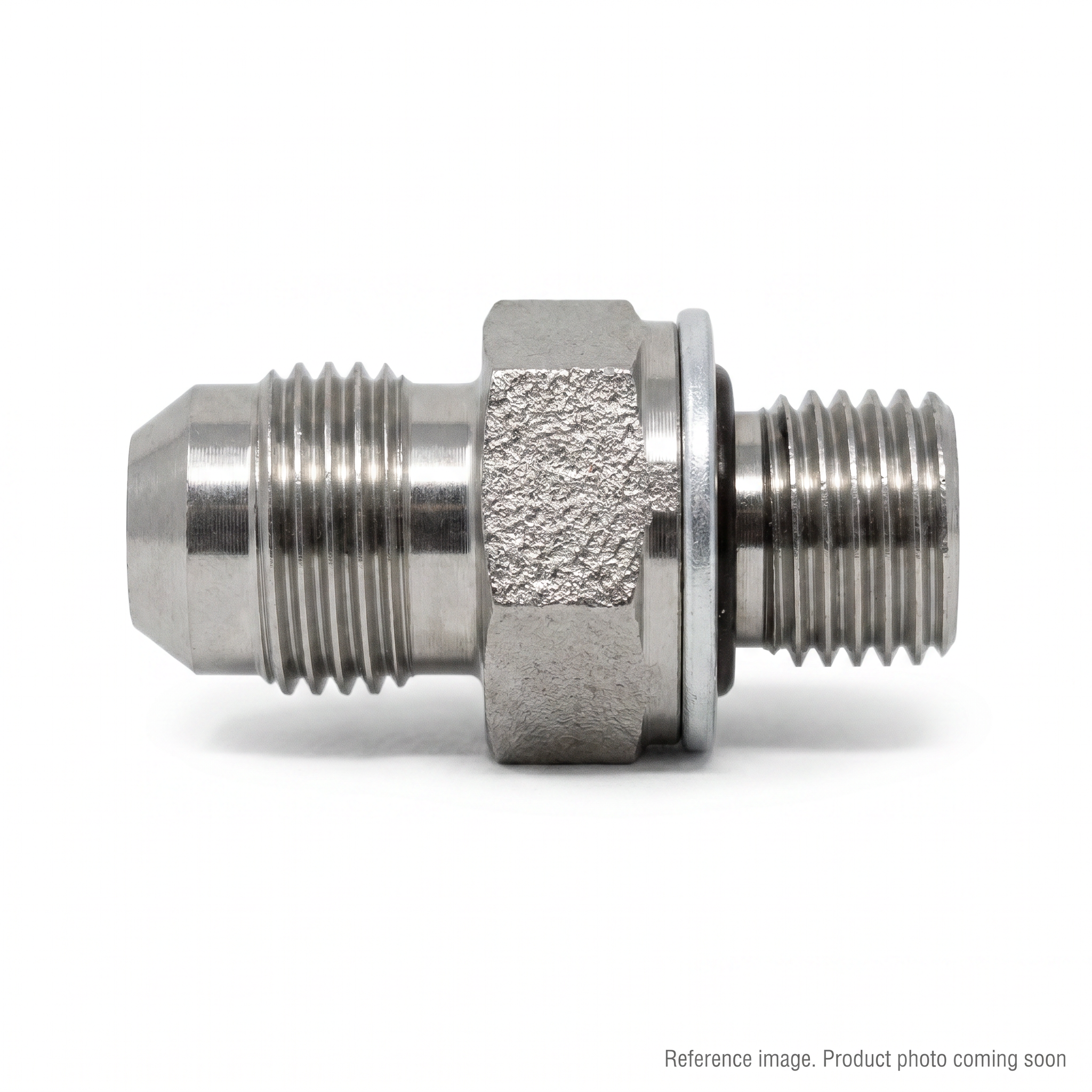

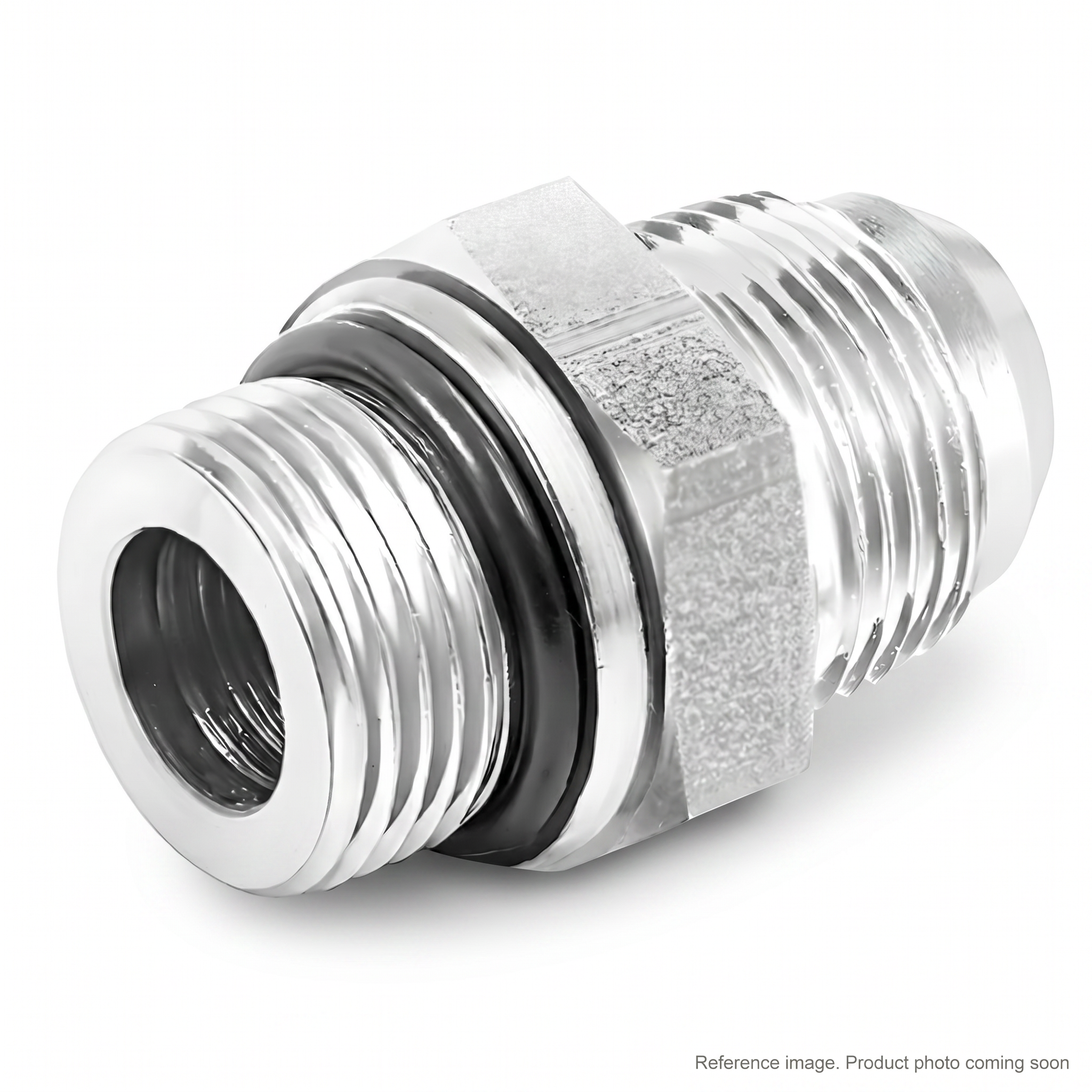

The Adaptall 9068-08-16 is a straight hydraulic adapter connecting a 1/2-inch male JIC (-08) hose end to an M16×1.5 male metric port (-16 mm) with captive washer and O-ring seal. Part of the Adaptall 9068 Male JIC × Male Metric series. Stocked in Kelowna, BC and ships Canada-wide.
Specifications
- Part Number: 9068-08-16
- Type: Straight Hydraulic Adapter (Male JIC × Male Metric)
- Side 1: 1/2" Male JIC (3/4-16 UNF)
- Side 2: M16×1.5 Male Metric Port (with washer & O-ring)
- Material: Carbon steel
- Standards: SAE J514, ISO 8434-2, ISO 9974
Cross-References
- Brennan: 7005-12-27X1.5
- Fittings Unlimited: M-MJ-2404-12-27X1.5
- Parker: 12M27X1.5XEP8S
Fitment
- JIC to M16×1.5 metric port hydraulic connections
- Heavy mobile and industrial hydraulic equipment with metric ports
FAQ
What is the metric thread size for the 9068-08-16?
The metric side is M16×1.5 (16 mm diameter, 1.5 mm pitch).
Does the 9068-08-16 include a seal?
Yes. Adaptall's 9068 series includes a washer and O-ring on the metric port side.
Is this in stock in Canada?
Yes. AIM Rentals stocks the 9068-08-16 in Kelowna, BC and ships Canada-wide.
Fitment data available on request. Email sales@rentwithaim.ca with your machine year/make/model.
