Genuine Adaptall 9069-06-14 Hydraulic Adapter | 3/8" Male JIC × M14 Male Metric 90°
SKU 9069-06-14
In stock: 2 available · Ships from Kelowna BC
Verify fitment by part number before ordering.
Match the listed SKU and verified cross-references to your current part number. If fitment is not listed, send AIM Rentals the machine details and current part number before ordering.
Genuine Adaptall 9069-06-14 Hydraulic Adapter | 3/8" Male JIC × M14 Male Metric 90°

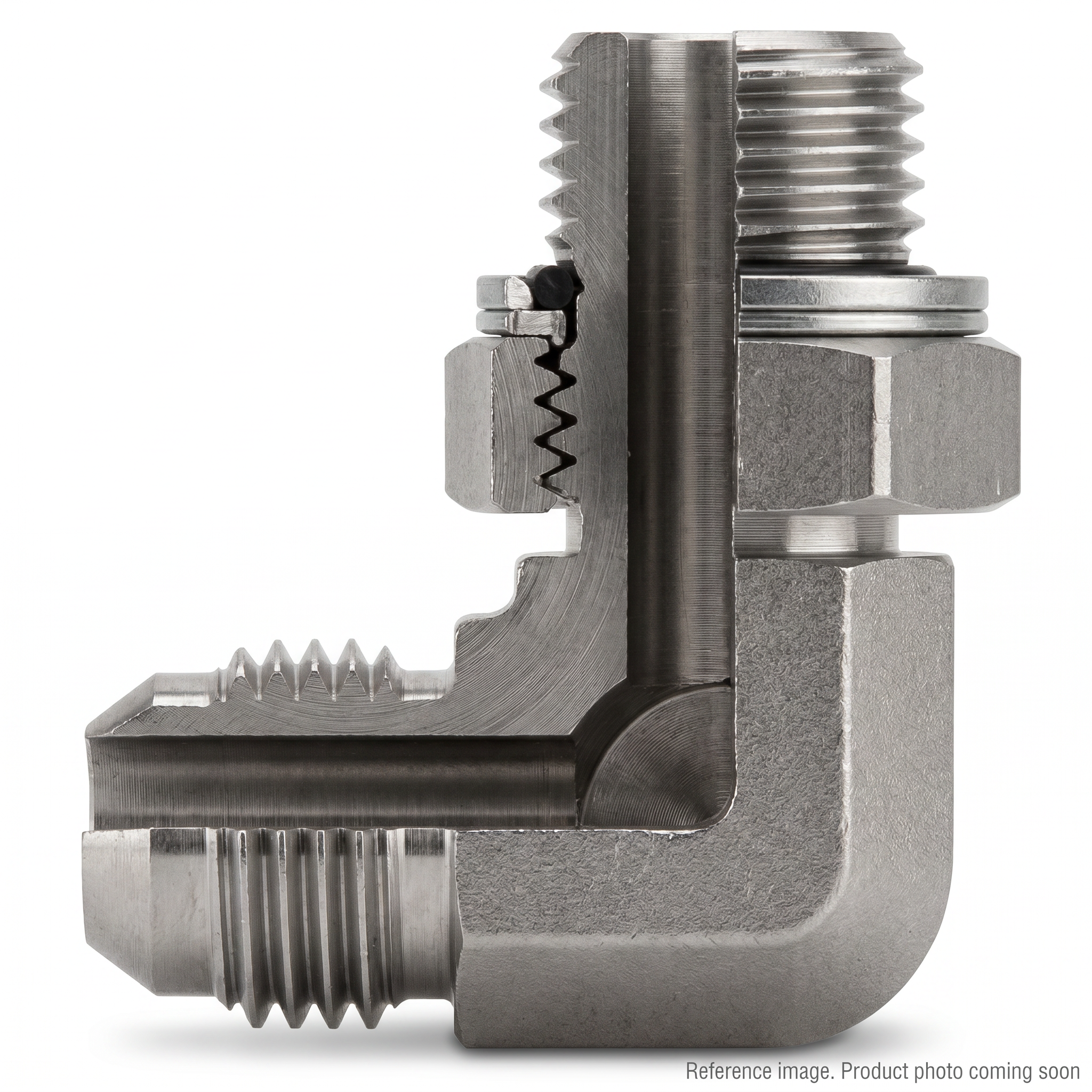

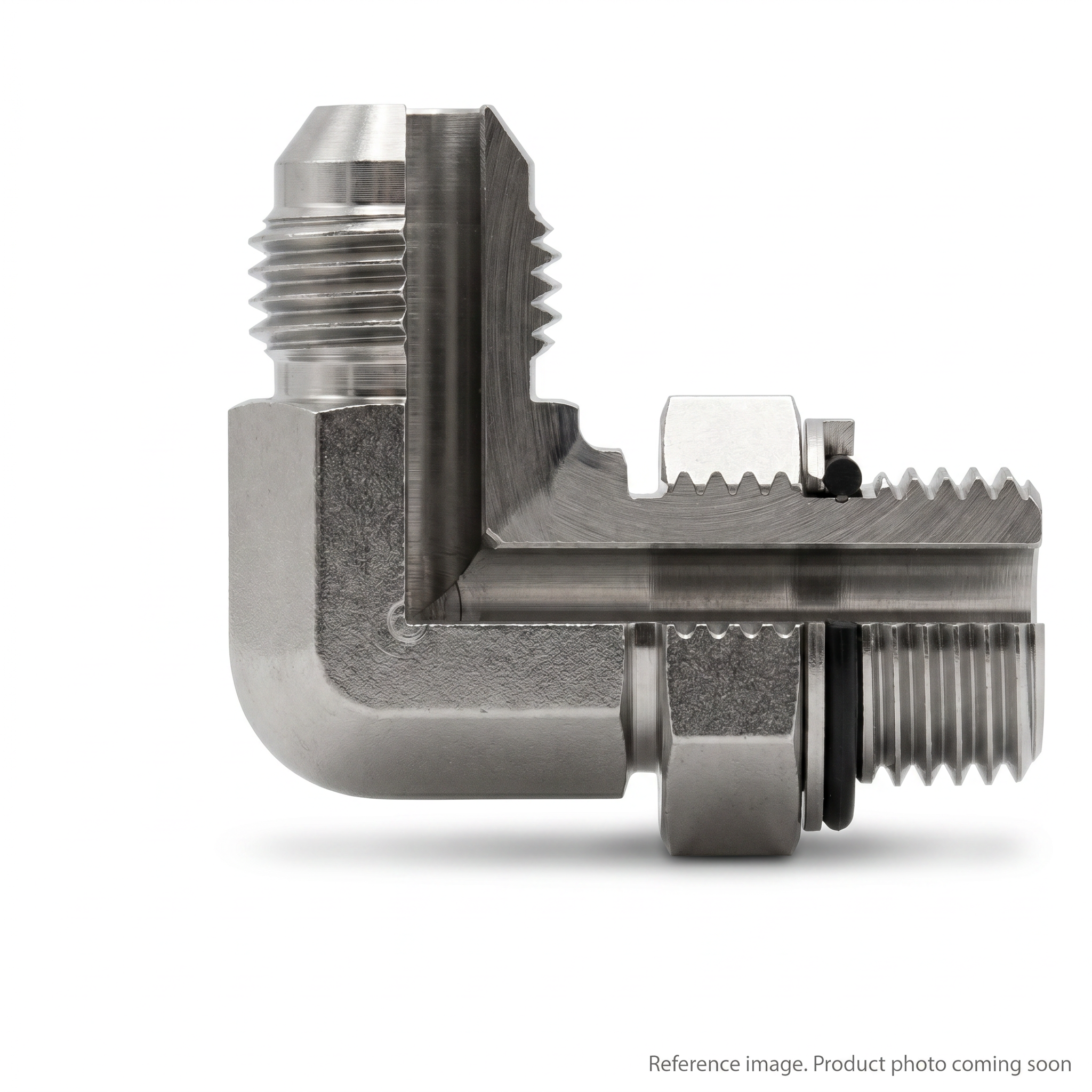

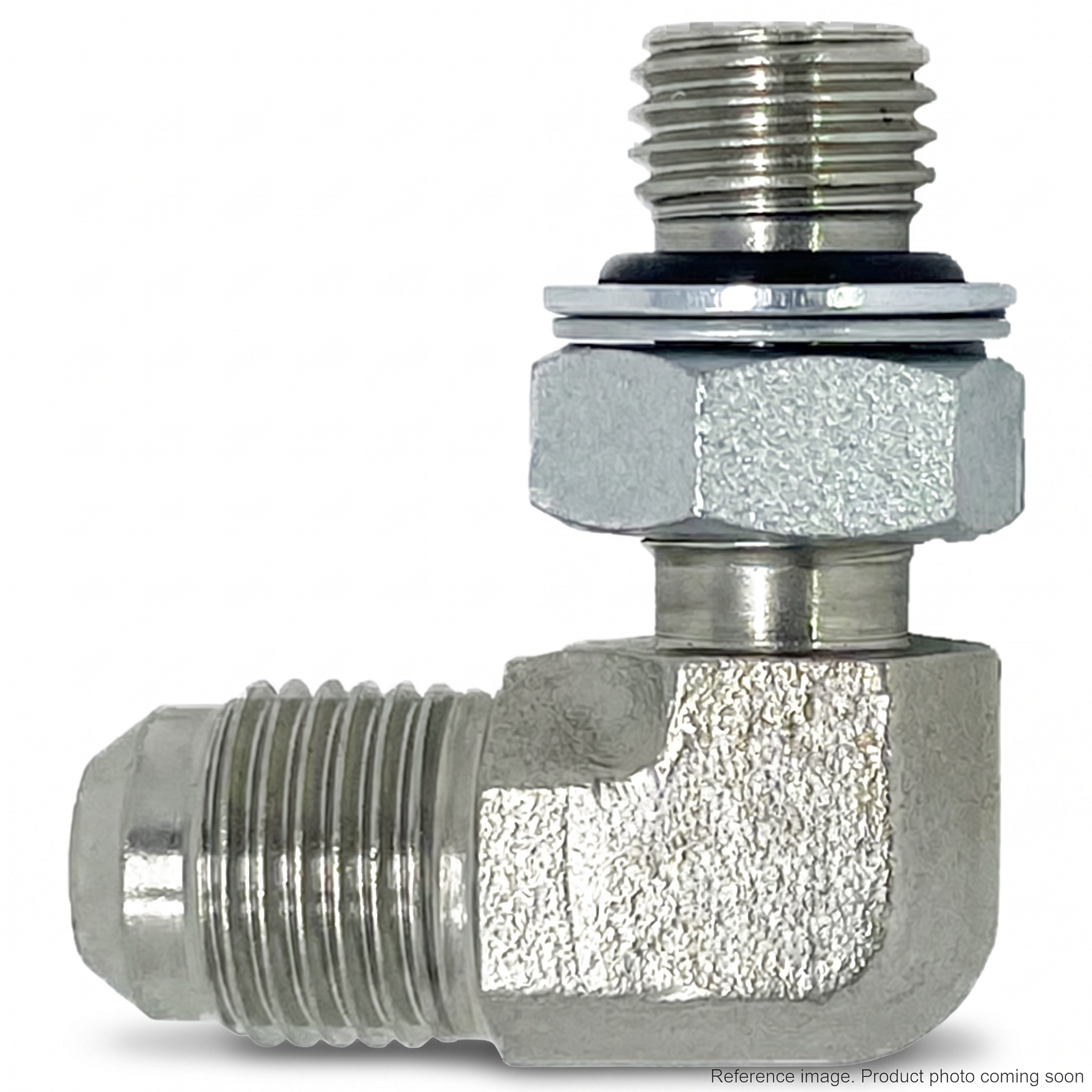

The Adaptall 9069-06-14 is a 90-degree elbow hydraulic adapter in the 9069 series: Male JIC × Male Metric. It connects a 3/8-inch male JIC hose end (9/16-18 UNF) to an M14×1.5 male metric port at a 90° angle, with O-ring seal. The 9069 series meets SAE J514, ISO 8434-2, ISO 9974, ISO 6149, and DIN 7631 standards. Stocked in Kelowna, BC and ships Canada-wide.
Specifications
- Part Number: 9069-06-14
- Type: 90° Elbow Hydraulic Adapter (Male JIC × Male Metric)
- Side 1: 3/8" Male JIC (9/16-18 UNF)
- Side 2: M14×1.5 Male Metric Port (with O-ring)
- Angle: 90°
- Hex Size: 14 × 19 mm
- Material: Carbon steel
- Standards: SAE J514, ISO 8434-2, ISO 9974, ISO 6149, DIN 7631
Cross-References
- Brennan: 7001-16-27
- Fittings Unlimited: M-MJ-6400-16-27X2.0-WO
- Parker: 16M27F8OMXS
- Tompkins: 7400-16-27
Fitment
- JIC to M14×1.5 metric port 90-degree elbow hydraulic connections
- Heavy mobile equipment with metric hydraulic ports
FAQ
Is the 9069-06-14 the same as the 9068-06-14?
No. The 9068-06-14 is a straight adapter, while the 9069-06-14 is a 90-degree elbow. Both connect 3/8" JIC to M14×1.5 metric, but the elbow version routes the hose perpendicular to the port.
Is this in stock in Canada?
Yes. AIM Rentals stocks the 9069-06-14 in Kelowna, BC and ships Canada-wide.
