Genuine Adaptall 9022-04-L08-14 Male JIC x Female Metric Swivel Adapter
SKU N9022-04-L08-14
In stock: 2 available · Ships from Kelowna BC
Verify fitment by part number before ordering.
Match the listed SKU and verified cross-references to your current part number. If fitment is not listed, send AIM Rentals the machine details and current part number before ordering.

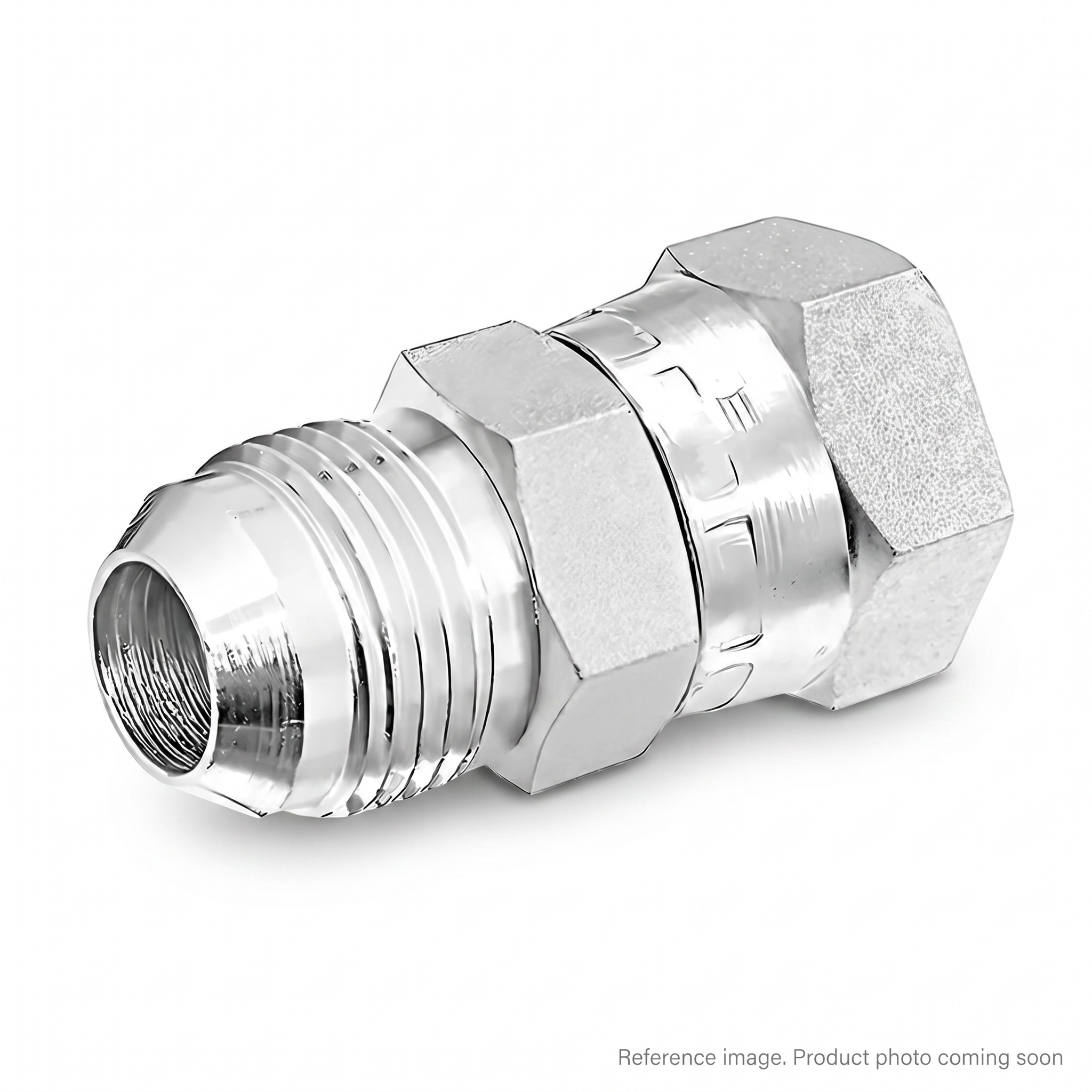

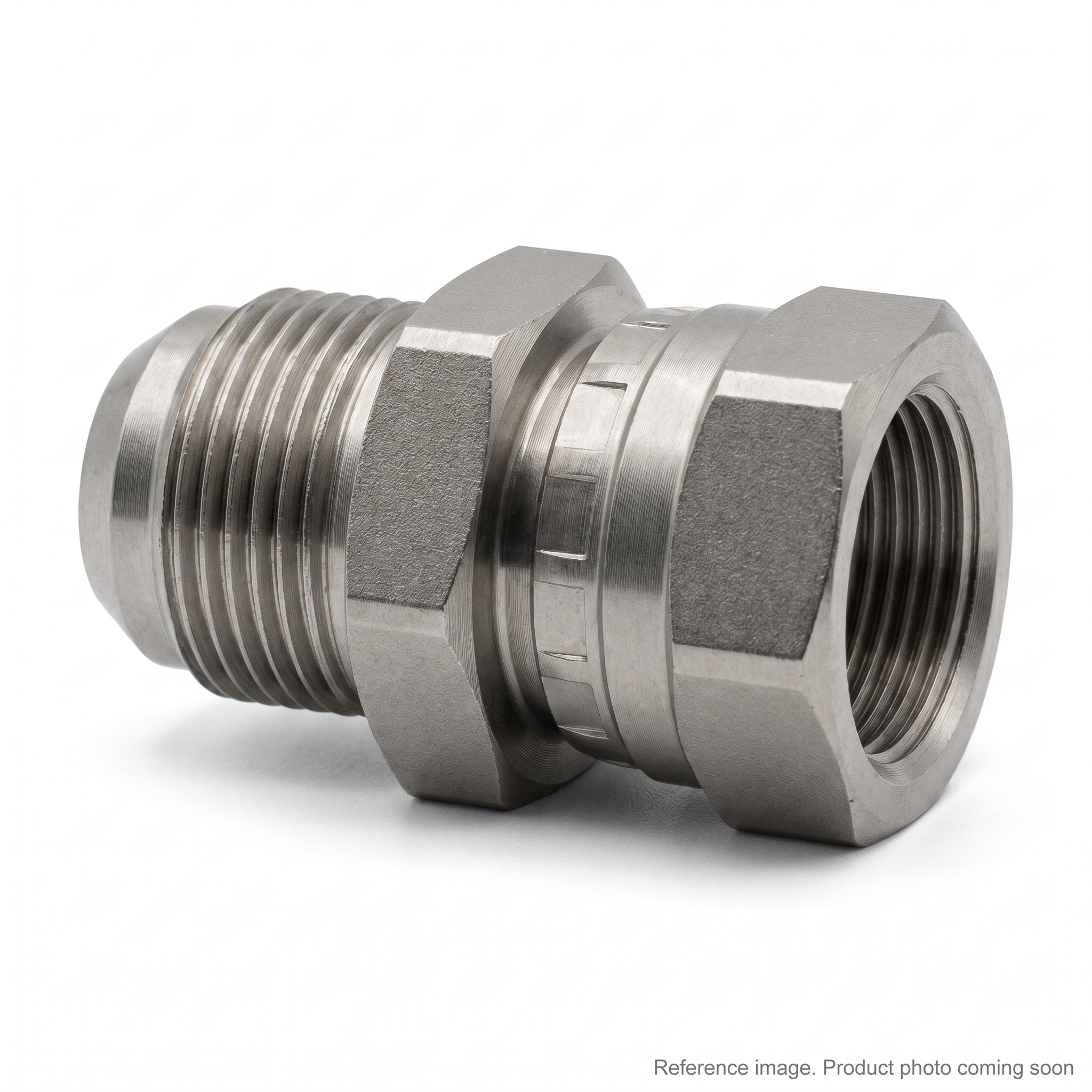

Genuine Adaptall 9022-04-L08-14 Male JIC x Female Metric Swivel Adapter
The Genuine Adaptall 9022-04-L08-14 is a straight carbon steel hydraulic adapter connecting a 1/4" Male JIC (7/16-20 UNF) to an L08 Female DIN Metric Swivel (M14x1.5). Part of the Adaptall 9022 Series designed to bridge JIC (SAE J514 / ISO 8434-2) and DIN metric tube (ISO 9974 / DIN 7631) hydraulic systems. Stocked in Kelowna, BC and ships Canada-wide.
Specifications
- Part Number: 9022-04-L08-14 (AIM: N9022-04-L08-14)
- Series: Adaptall 9022 — Male JIC x Female Metric 60° Flare Swivel
- Shape: Straight (Dual Purpose Ball Seat)
- Side 1: 1/4" Male JIC, 7/16-20 UNF, SAE J514 / ISO 8434-2
- Side 2: L08 Female DIN Tube Swivel, M14 x 1.5, ISO 9974 / DIN 7631
- Length: 38 mm
- Wrench 1 (CH1): 16 mm
- Wrench 2 (CH2): 19 mm
- Weight: 0.1 lb
- Material: Carbon Steel
- Stocked: Kelowna, BC, Canada
Fitment
Universal hydraulic application adapter — used wherever a 1/4" Male JIC connection must mate with an L08 DIN metric tube (8mm, M14x1.5) port. Suitable for construction equipment, agricultural machinery, industrial hydraulic systems, and mobile equipment.
FAQ
What thread sizes does the 9022-04-L08-14 adapt?
Side 1 is 7/16-20 UNF (1/4" JIC Male); Side 2 is M14 x 1.5 (L08 DIN tube, 8mm Female Swivel).
Is this a swivel fitting?
Yes — the female metric side is a swivel (floating nut) allowing the tube connection to rotate before final tightening.
What material is the 9022-04-L08-14?
Carbon steel with trivalent zinc plating conforming to ASTM B633 for corrosion resistance.
Where is this adapter stocked?
In Kelowna, BC — orders before 2:00 PM Pacific ship same business day, Canada-wide.
Fitment data available on request. Email sales@rentwithaim.ca with your machine year/make/model.
