Genuine Adaptall 9022-08-L15-22 Male JIC x Female Metric Swivel Fitting
SKU N9022-08-L15-22
In stock: 2 available · Ships from Kelowna BC
Verify fitment by part number before ordering.
Match the listed SKU and verified cross-references to your current part number. If fitment is not listed, send AIM Rentals the machine details and current part number before ordering.

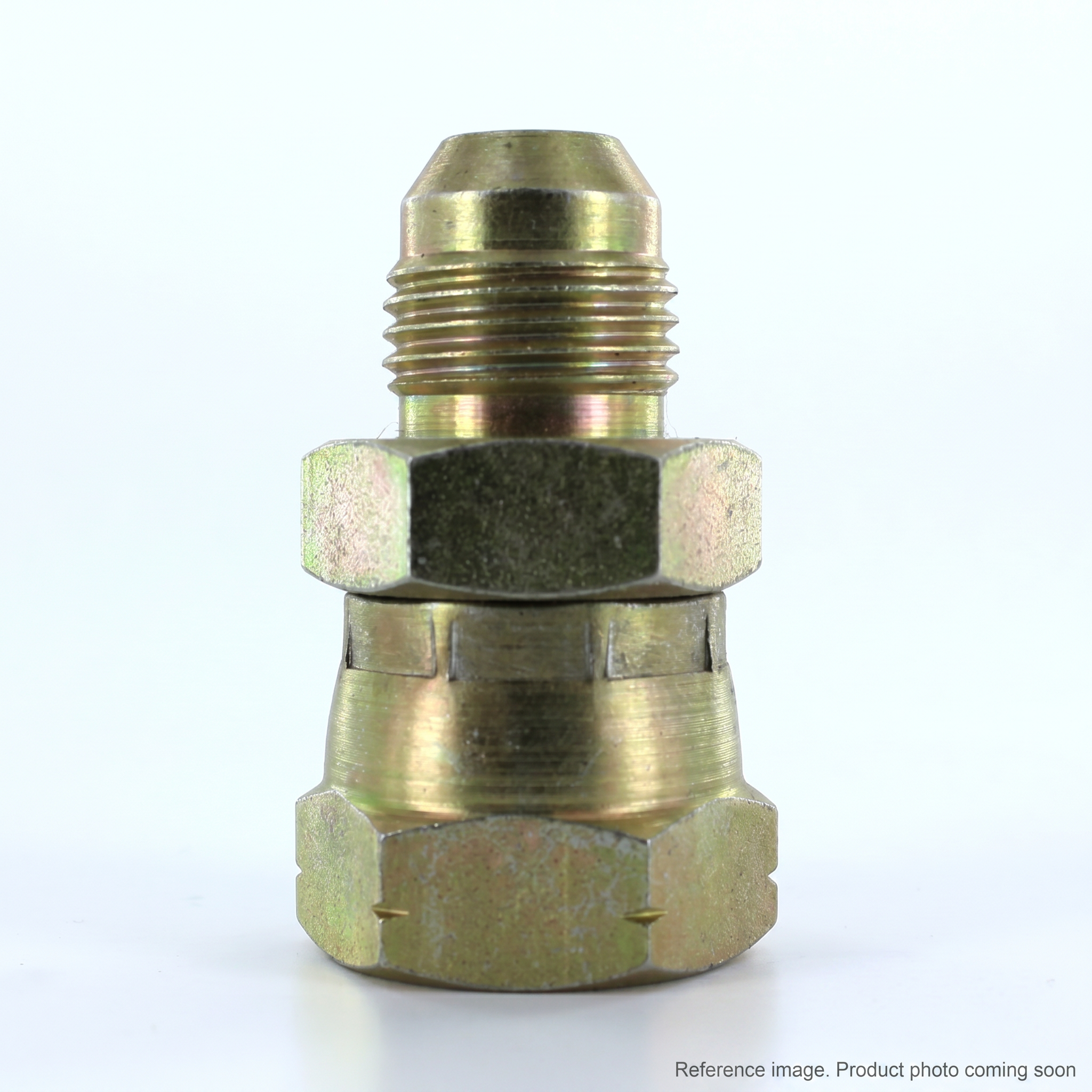

Genuine Adaptall 9022-08-L15-22 Male JIC x Female Metric Swivel Hydraulic Fitting
The Genuine Adaptall 9022-08-L15-22 is a straight carbon steel hydraulic fitting connecting a 1/2" Male JIC (3/4-16 UNF) to an L15 Female DIN Metric Swivel (M22x1.5). Part of Adaptall's 9022 Series for bridging JIC (SAE J514) and DIN metric tube hydraulic systems. Stocked in Kelowna, BC and ships Canada-wide.
Specifications
- Part Number: 9022-08-L15-22 (AIM: N9022-08-L15-22)
- Series: Adaptall 9022 — Male JIC x Female Metric 60° Flare Swivel
- Shape: Straight
- Side 1: 1/2" Male JIC, 3/4-16 UNF, SAE J514 / ISO 8434-2
- Side 2: L15 Female DIN Tube Swivel, M22 x 1.5, ISO 9974 / DIN 7631
- Material: Carbon Steel
- Stocked: Kelowna, BC, Canada
Fitment
Universal hydraulic fitting — bridges 1/2" JIC (imperial) to L15 DIN metric tube systems. Used in heavy construction equipment, European-spec hydraulic machinery, and mixed-thread industrial hydraulic assemblies.
FAQ
What thread sizes does 9022-08-L15-22 connect?
Side 1: 3/4-16 UNF (1/2" JIC Male). Side 2: M22 x 1.5 (L15 DIN tube, 15mm Female Swivel).
Is this fitting suitable for high pressure?
Yes — Adaptall 9022 series fittings are engineered for hydraulic pressure service. Verify the maximum working pressure ratings for your system.
What material and finish is used?
Carbon steel body with trivalent zinc plating per ASTM B633 for corrosion resistance.
Where is this fitting stocked?
In Kelowna, BC — orders before 2:00 PM Pacific ship same business day, Canada-wide.
Fitment data available on request. Email sales@rentwithaim.ca with your machine year/make/model.
