Genuine Adaptall 9068-04-12 Male Metric Port x Male JIC Hydraulic Adapter

Genuine Adaptall 9068-04-12 Straight Hydraulic Adapter | Male Metric Port x Male JIC

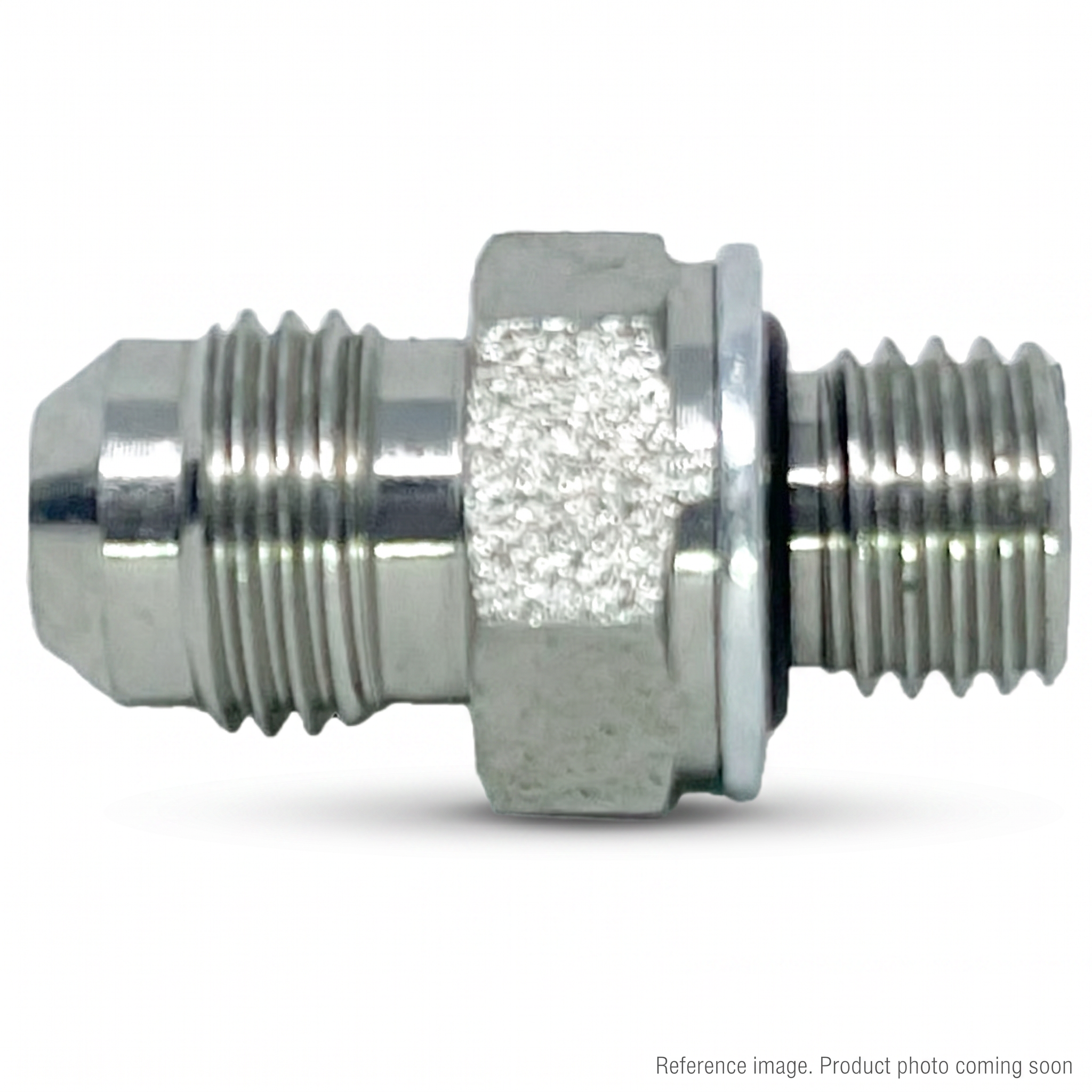

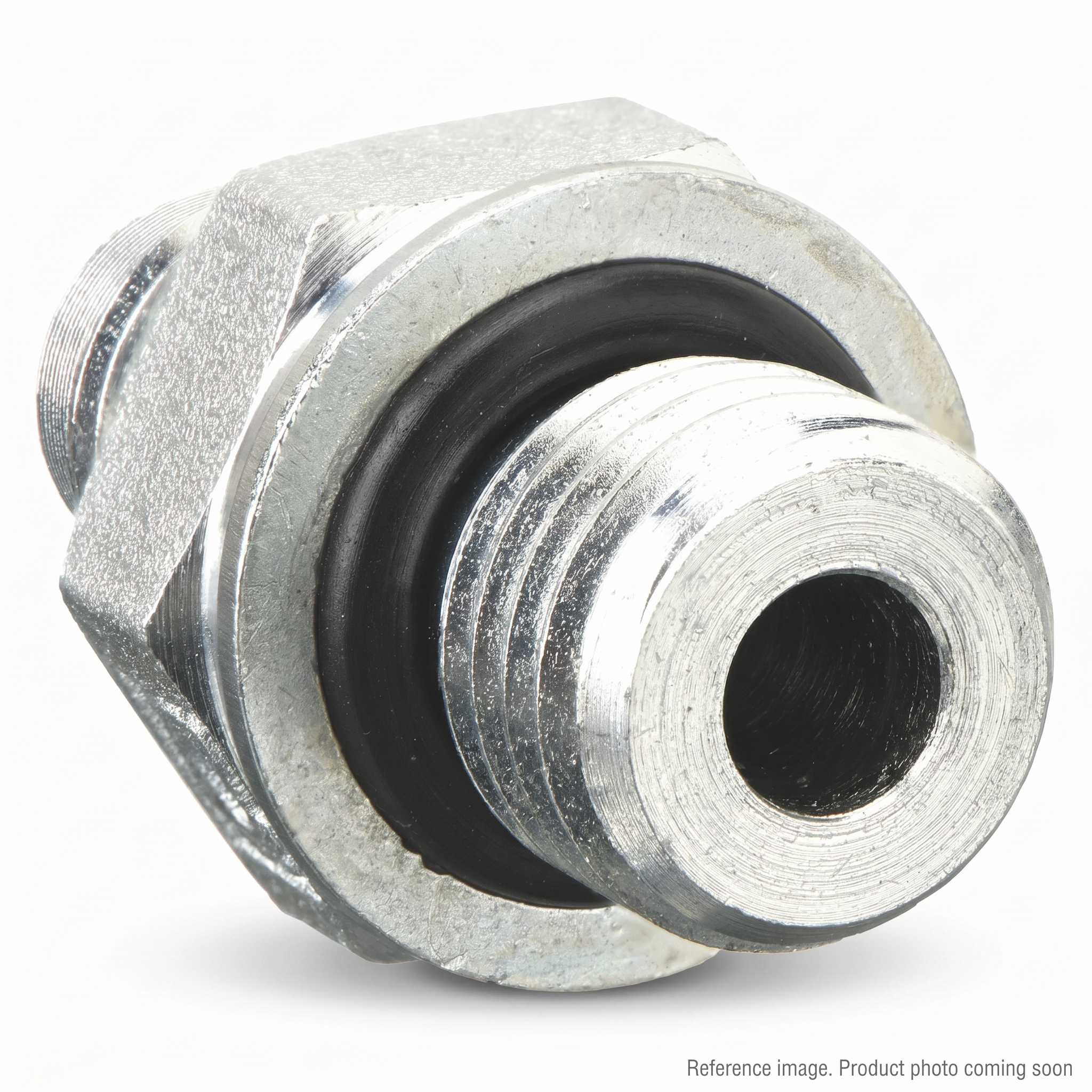

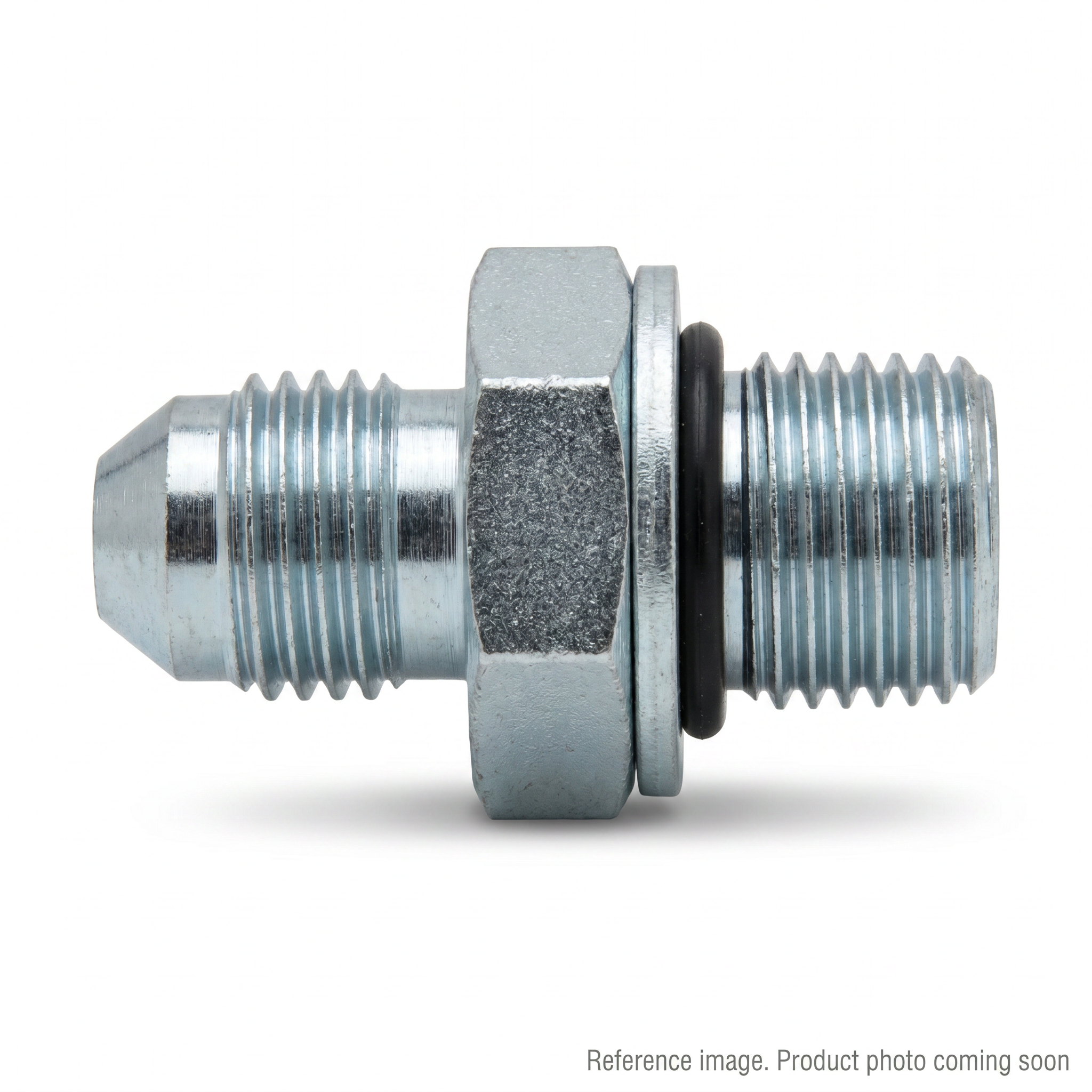

The Genuine Adaptall 9068-04-12 is a straight carbon steel hydraulic adapter connecting a 12mm Male Metric Port (M12x1.5, with seal/washer) to a 1/4" Male JIC (7/16-20 UNF). Part of Adaptall's 9068 Series, conforming to DIN 7631, ISO 6149, ISO 9974, and SAE J514. Stocked in Kelowna, BC and ships Canada-wide.

Specifications

• Part Number: 9068-04-12 (AIM: N9068-04-12)
• Series: Adaptall 9068 — Male Metric Port x Male JIC
• Shape: Straight
• Side 1: M12 x 1.5 Male Metric Port (12mm), ISO 6149 / ISO 9974 / DIN 7631
• Side 2: 1/4" Male JIC, 7/16-20 UNF, SAE J514 / ISO 8434-2
• Length: 32.4 mm
• Hex Size: 17 mm
• Material: Carbon Steel
• Standards: DIN 7631, ISO 6149, ISO 8434-2, ISO 9974, SAE J514
• Stocked: Kelowna, BC, Canada

Fitment

Universal hydraulic adapter — used to connect JIC hose assemblies to metric port-style machine ports (M12x1.5). Common in construction equipment, forklifts, and industrial hydraulics with metric porting.

FAQ

What threads does the 9068-04-12 connect?

Side 1: M12 x 1.5 Male Metric Port (ISO 6149). Side 2: 7/16-20 UNF (1/4" Male JIC).

Does this fitting require a seal or O-ring?

Yes — the metric port side typically uses a bonded washer or O-ring face seal for a leak-free connection. Refer to Adaptall's installation guidelines.

Is the 9068 series different from the 9022 series?

Yes — the 9068 Series uses Male Metric Port (ISO 6149) on one side rather than a female swivel DIN tube fitting. The 9022 uses a female DIN tube swivel.

Where is this adapter stocked?

In Kelowna, BC — orders before 2:00 PM Pacific ship same business day, Canada-wide.
