Genuine Adaptall 9606-12-S25-36 Male JIC x Male DIN Heavy Tube Adapter

Genuine Adaptall 9606-12-S25-36 Male JIC x Male DIN Heavy Tube Adapter

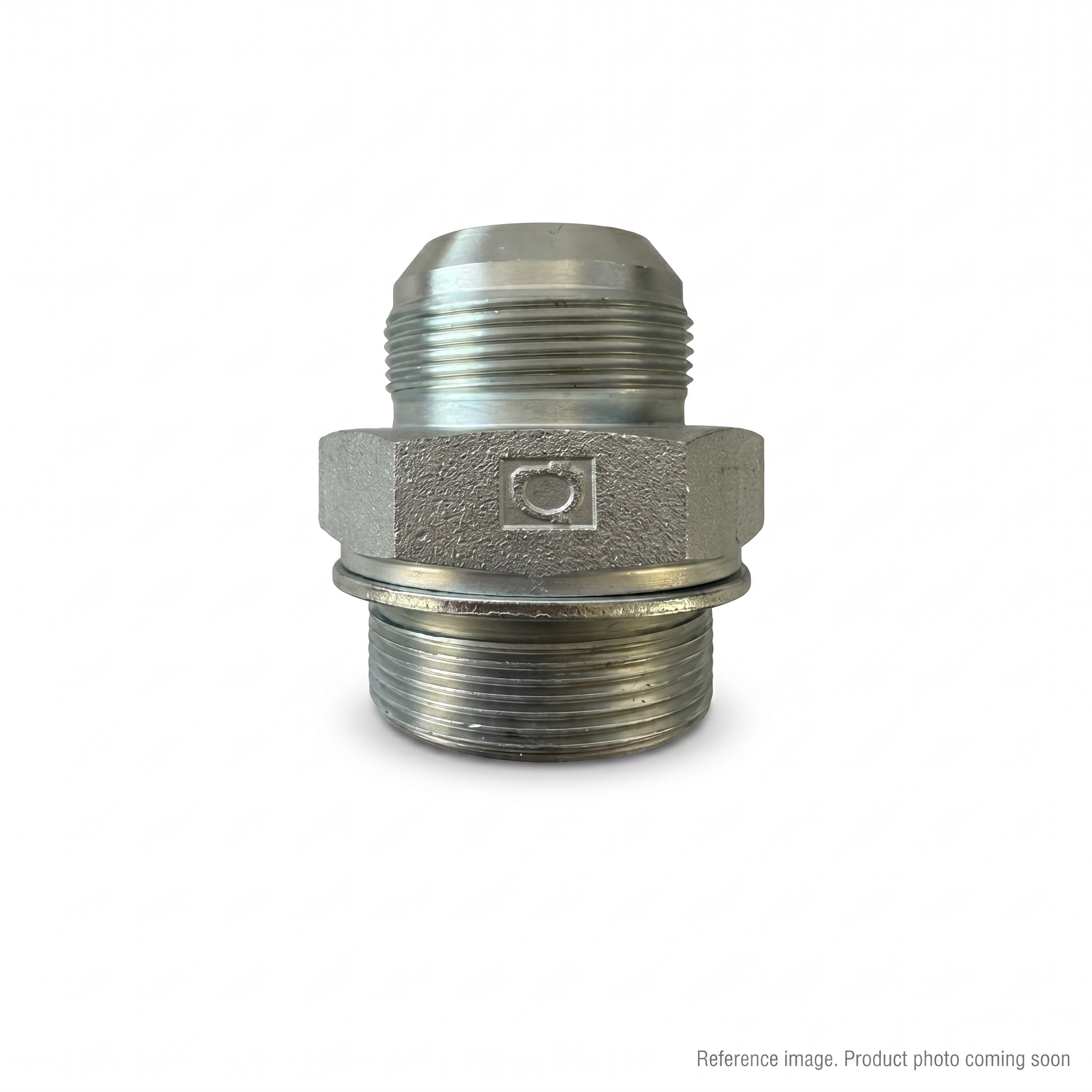

The Genuine Adaptall 9606-12-S25-36 is a straight carbon steel hydraulic adapter connecting a 3/4" Male JIC (1-1/16-12 UNF) to an S25 Male DIN Heavy (Heavy Series, M36x2.0 thread). Part of Adaptall's 9606 Series. Used in high-pressure hydraulic systems requiring JIC-to-DIN heavy tube connections. Stocked in Kelowna, BC and ships Canada-wide.

Specifications

• Part Number: 9606-12-S25-36 (AIM: N9606-12-S25-36)
• Series: Adaptall 9606 — Male JIC x Male DIN Heavy
• Shape: Straight
• Side 1: 3/4" Male JIC, 1-1/16-12 UNF
• Side 2: S25 Male DIN Heavy Tube, M36 x 2.0
• Material: Carbon Steel
• Stocked: Kelowna, BC, Canada

Fitment

Universal high-pressure hydraulic adapter — connects JIC hose assemblies to DIN heavy-duty metric tube systems (S25, 25mm tube, M36x2.0). Common in European and Asian heavy construction equipment, mining, and high-pressure industrial systems.

FAQ

What is the difference between DIN Light (L) and DIN Heavy (S) series?

DIN Light series (L) uses lighter-duty tubing rated for lower pressures. DIN Heavy series (S) uses heavier tube walls and fittings rated for higher system pressures, commonly used in heavy construction and mining equipment.

What threads does the 9606-12-S25-36 connect?

Side 1: 1-1/16-12 UNF (3/4" Male JIC). Side 2: M36 x 2.0 (S25 DIN Heavy Tube Male).

Is the 9606 series a swivel or fixed fitting?

The 9606 series is a fixed (non-swivel) male-to-male adapter — unlike the 9022 swivel series, both ends are male.

Where is this adapter stocked?

In Kelowna, BC — orders before 2:00 PM Pacific ship same business day, Canada-wide.
