Allen-Bradley 802M-AY5 Limit Switch | Factory Sealed 2-Pole
SKU 802MAY5
In stock: 2 available · Ships from Kelowna BC
Verify fitment by part number before ordering.
Match the listed SKU and verified cross-references to your current part number. If fitment is not listed, send AIM Rentals the machine details and current part number before ordering.
Allen-Bradley 802M-AY5 Limit Switch

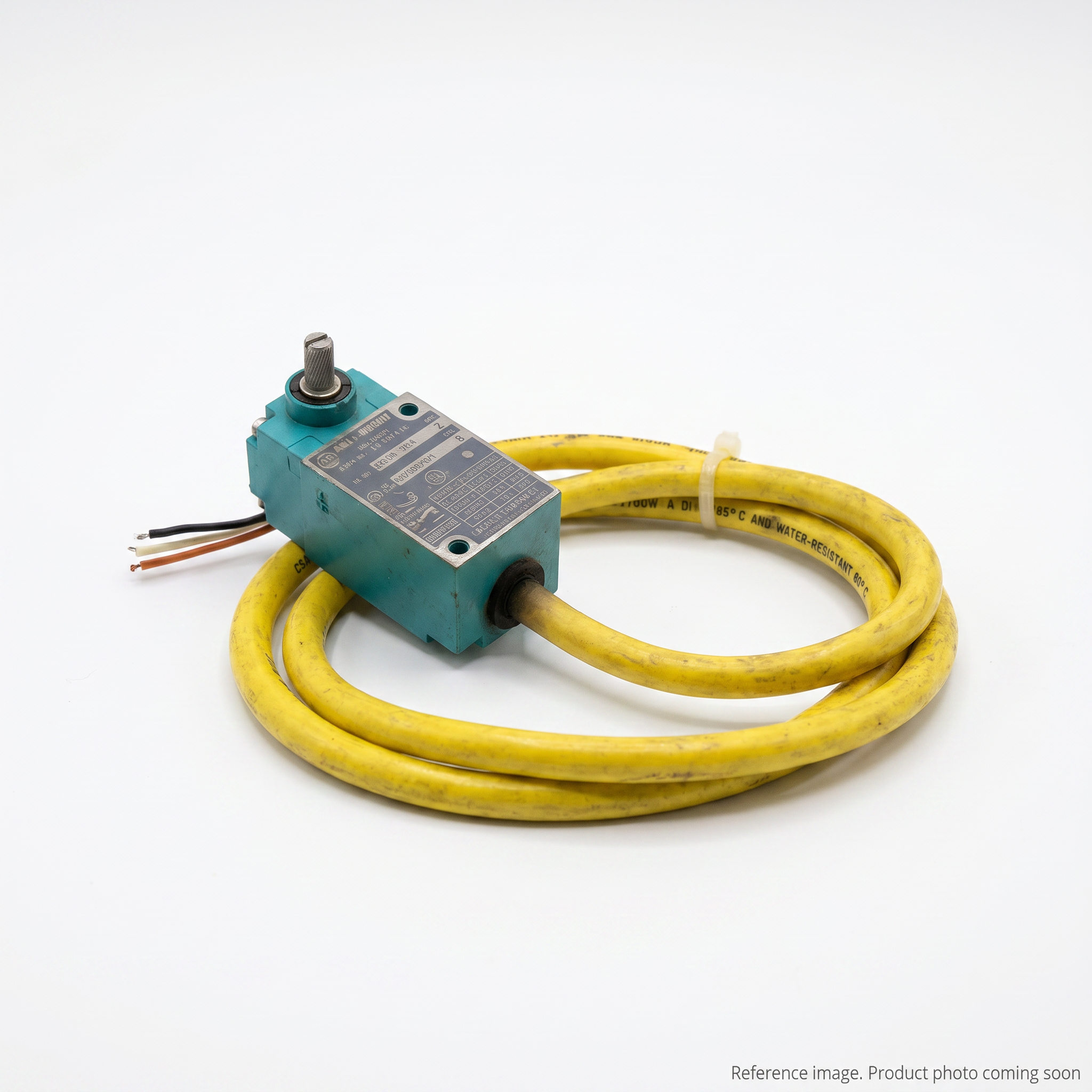

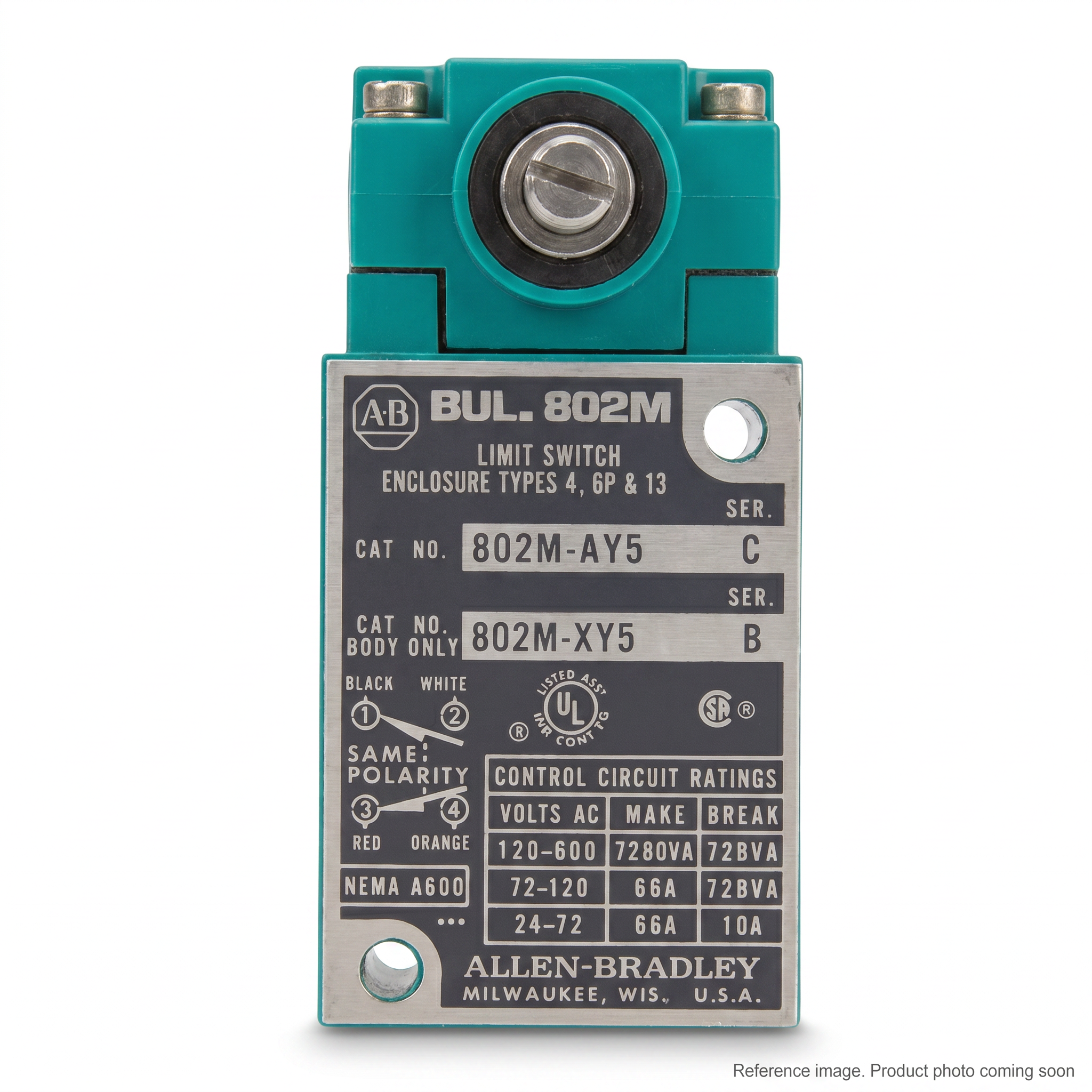

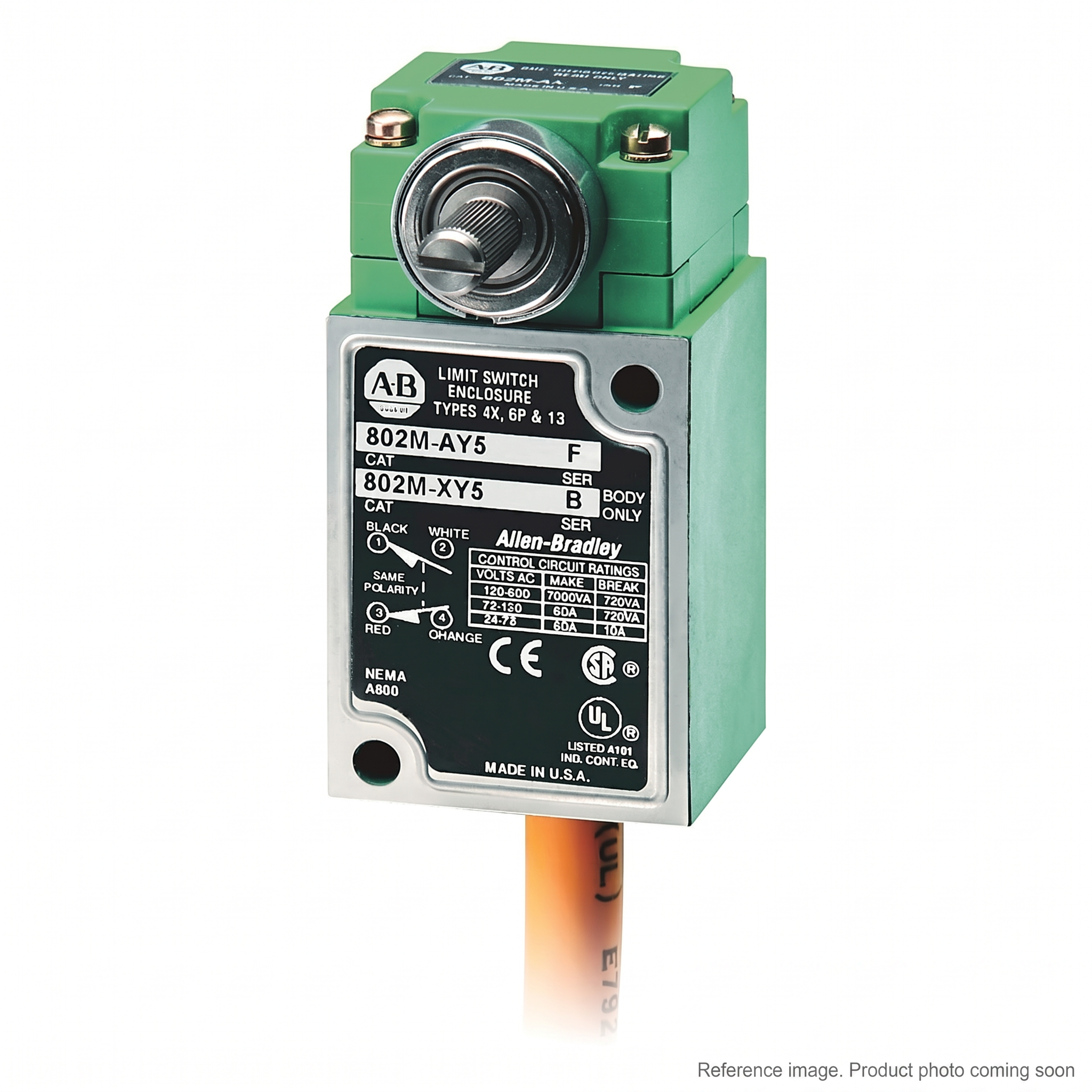

The Allen-Bradley 802M-AY5 is a Bulletin 802M factory-sealed compact metal limit switch with a 2-circuit (2-pole) configuration, rotary lever actuator with spring return, and 5-foot pre-wired cable. Rated NEMA 1/4/6P/13, IP66/IP67, suitable for heavy-duty industrial applications. Stocked in Kelowna, BC — ships Canada-wide.
Specifications
- Part Number: 802M-AY5 (802MAY5)
- Manufacturer: Allen-Bradley (Rockwell Automation)
- Type: Factory Sealed Limit Switch
- Circuits: 2-pole (2 N.O.)
- Actuation: Rotary lever, spring return, CW and CCW
- Travel to Operate: 15° max
- Travel to Reset: 6° max
- Max Travel: 86°
- Torque to Operate: 0.34 Nm (3 lb-in)
- Connection: 5 ft (1.52 m) pre-wired cable
- Voltage: 600 V AC (A600)
- Amperage: 10 A
- Enclosure: NEMA 1, 4, 6P, 13; IP66/IP67
- Ambient Temp: 0– 82.2°C
- Stocked: Kelowna, BC
Fitment
The 802M-AY5 is a general-purpose industrial limit switch used in material handling, packaging, food processing, and heavy-duty machine control applications. Confirm panel mounting dimensions and actuator requirements for your specific installation.
FAQ
What is the Allen-Bradley 802M-AY5?
The 802M-AY5 is a Bulletin 802M 2-circuit factory-sealed limit switch with rotary lever actuator and 5-foot pre-wired cable, suitable for demanding industrial environments up to NEMA 13 / IP67 ratings.
Is this a genuine Allen-Bradley part?
Yes. The 802M-AY5 is a genuine Allen-Bradley (Rockwell Automation) product confirmed via the Rockwell Automation catalog and authorized distributors.
What is the difference between 802M-AY5 and 802MC-AY5?
The 802MC-AY5 is the corrosion-resistant variant rated to NEMA 4X. The standard 802M-AY5 is rated NEMA 1/4/6P/13. Choose the 802MC version for chemically harsh environments.
Where is this stocked?
Stocked in Kelowna, BC. Ships Canada-wide. Contact sales@rentwithaim.ca for availability updates.
Fitment data available on request. Email sales@rentwithaim.ca with your machine year/make/model.
