OEM-spec 87642-20-16RW SAE Code 62 45° Flange Fitting | 1-1/4in x 1in
SKU 87642-20-16RW
In stock: 6 available · Ships from Kelowna BC
Verify fitment by part number before ordering.
Match the listed SKU and verified cross-references to your current part number. If fitment is not listed, send AIM Rentals the machine details and current part number before ordering.

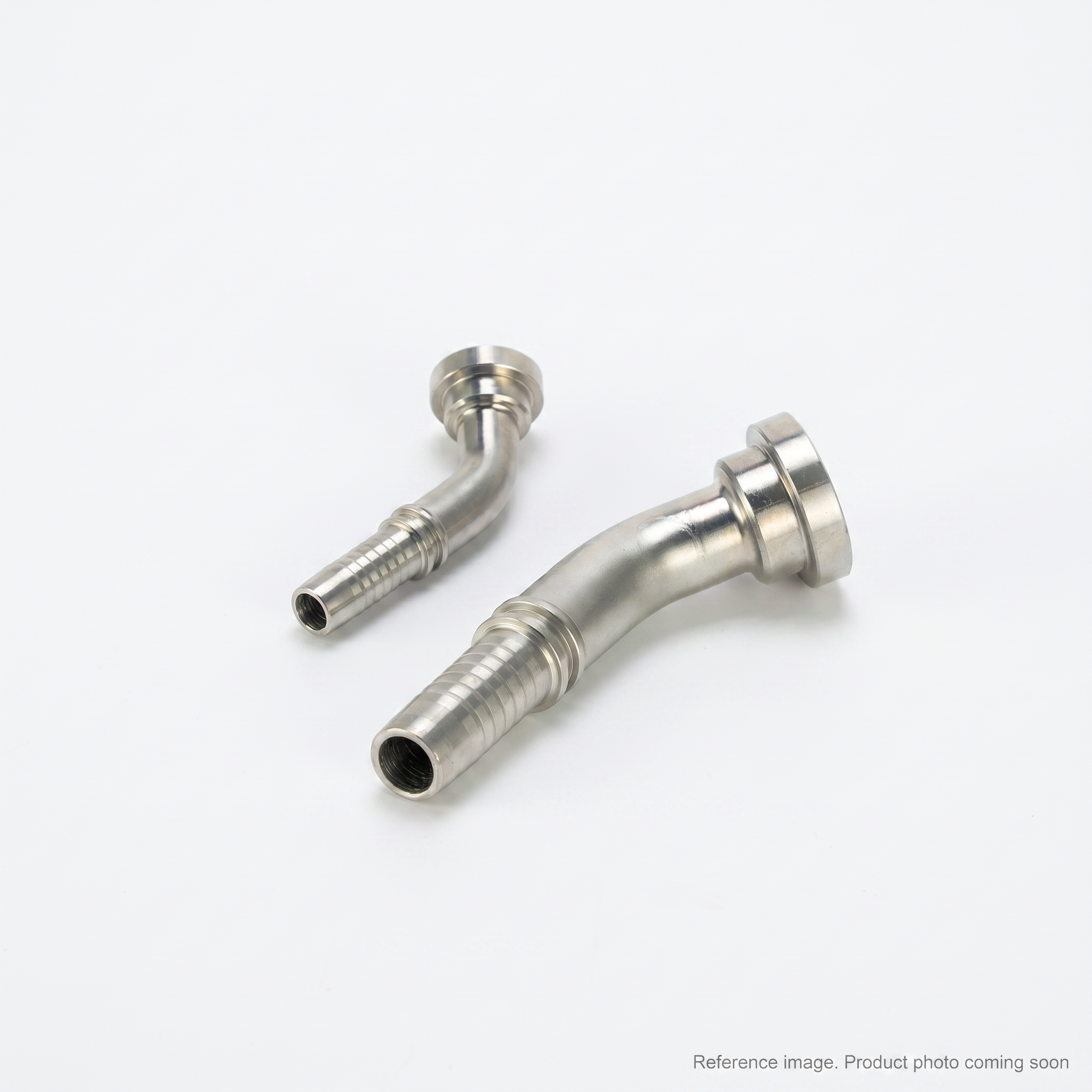

The 87642-20-16RW is an OEM-spec replacement SAE Code 62 45-degree hydraulic flange hose fitting, 1-1/4in (DN32) flange size with a 1in (-16) hose bore, rated to 6,000 PSI. Conforms to ISO 12151-3 / SAE J516 / SAE J518 Code 62. Stocked at AIM Rentals' Kelowna, BC warehouse, ships Canada-wide.
Specifications
- Part Number: 87642-20-16RW
- Type: 45-Degree SAE Code 62 Flange Head Hose Fitting
- Flange Size: 1-1/4in (20 / DN32)
- Hose I.D.: 1in (-16)
- Standard: ISO 12151-3 / SAE J516 / SAE J518
- Pressure Rating: SAE Code 62 — 6,000 PSI
- Material: Carbon steel
Fitment
The 87642-20-16RW suits SAE J518 Code 62 4-bolt flange ports requiring a 45-degree hose connection from a 1-1/4in high-pressure port to a 1in hose. Common in high-pressure hydraulic circuits on excavators, loaders, and forestry equipment.
Cross-References
Balflex internal stock number: 26.7046.1620. The industry-standard SAE part number is 87642-20-16RW.
FAQ
- What pressure is Code 62 rated to?
- 6,000 PSI maximum working pressure for all sizes per SAE J518.
- What is the hose compatibility?
- The RW suffix denotes spiral-wire hydraulic hose compatibility (4SH/4SP).
- Where is this stocked?
- Stocked at AIM Rentals in Kelowna, BC. Ships Canada-wide. Email sales@rentwithaim.ca for fitment questions.
- Can I use this with Code 61 ports?
- No. Code 61 and Code 62 have different bolt patterns and O-ring groove specs. Always verify the code on your port before ordering.
Fitment data available on request. Email sales@rentwithaim.ca with your machine year/make/model.
