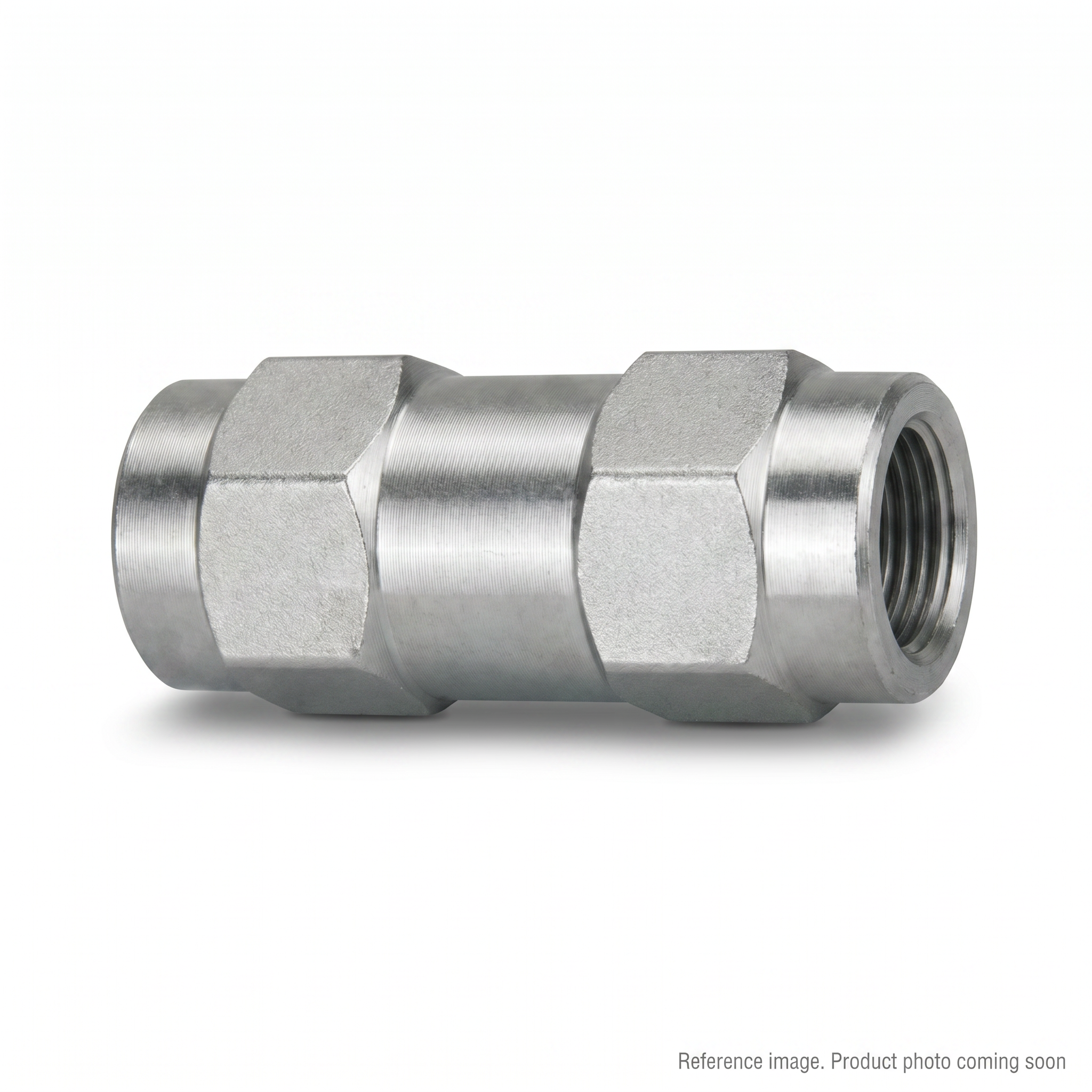

CV0101-08-08ASSY Female ORB Check Valve Assembly
The CV0101-08-08ASSY is an aftermarket female ORB (O-Ring Boss) hydraulic check valve assembly. Both port sizes are -8 ORB as indicated by the 08-08 designation. Check valves of this type allow flow in one direction only, preventing backflow in hydraulic circuits. Stocked at our Kelowna, BC warehouse and ships Canada-wide.
Specifications
- Part Number: CV0101-08-08ASSY
- Type: Female ORB Check Valve Assembly
- Brand: Aftermarket / OEM-spec replacement
- Port Style: Female ORB (O-Ring Boss)
- Port Size: -8 ORB both ends
- Function: Hydraulic check valve (one-way flow)
Fitment / Applications
This check valve assembly is used in hydraulic systems requiring -8 ORB female ports. Confirm your hydraulic circuit requirements before ordering. Contact sales@rentwithaim.ca for application verification.
FAQ
What does ORB mean on a hydraulic fitting?
ORB stands for O-Ring Boss. ORB fittings use a precision O-ring that seats against a flat machined boss surface, providing a reliable leak-free seal in hydraulic systems.
What is a check valve used for in a hydraulic system?
A check valve (also called a non-return valve) allows hydraulic fluid to flow in one direction only. It prevents backflow and maintains pressure in holding circuits, protecting actuators and pumps from reverse flow.
What does the 08-08 designation mean on CV0101-08-08ASSY?
The 08-08 indicates both inlet and outlet port sizes are -8 ORB (5/8-18 UNF thread), a common hydraulic fitting size for medium-duty hydraulic lines.
Where can I buy CV0101-08-08ASSY in Canada?
AIM Rentals stocks CV0101-08-08ASSY in Kelowna, BC. Orders ship Canada-wide; same business day on orders before 2:00 pm Pacific.
Fitment data available on request. Email sales@rentwithaim.ca with your machine year/make/model.
