OEM-spec 2401-9082 Final Drive with Motor | Daewoo Solar S220LC-3 DH220-3
SKU 24019082
In stock: 2 available · Ships from Kelowna BC
Verify fitment by part number before ordering.
Match the listed SKU and verified cross-references to your current part number. If fitment is not listed, send AIM Rentals the machine details and current part number before ordering.

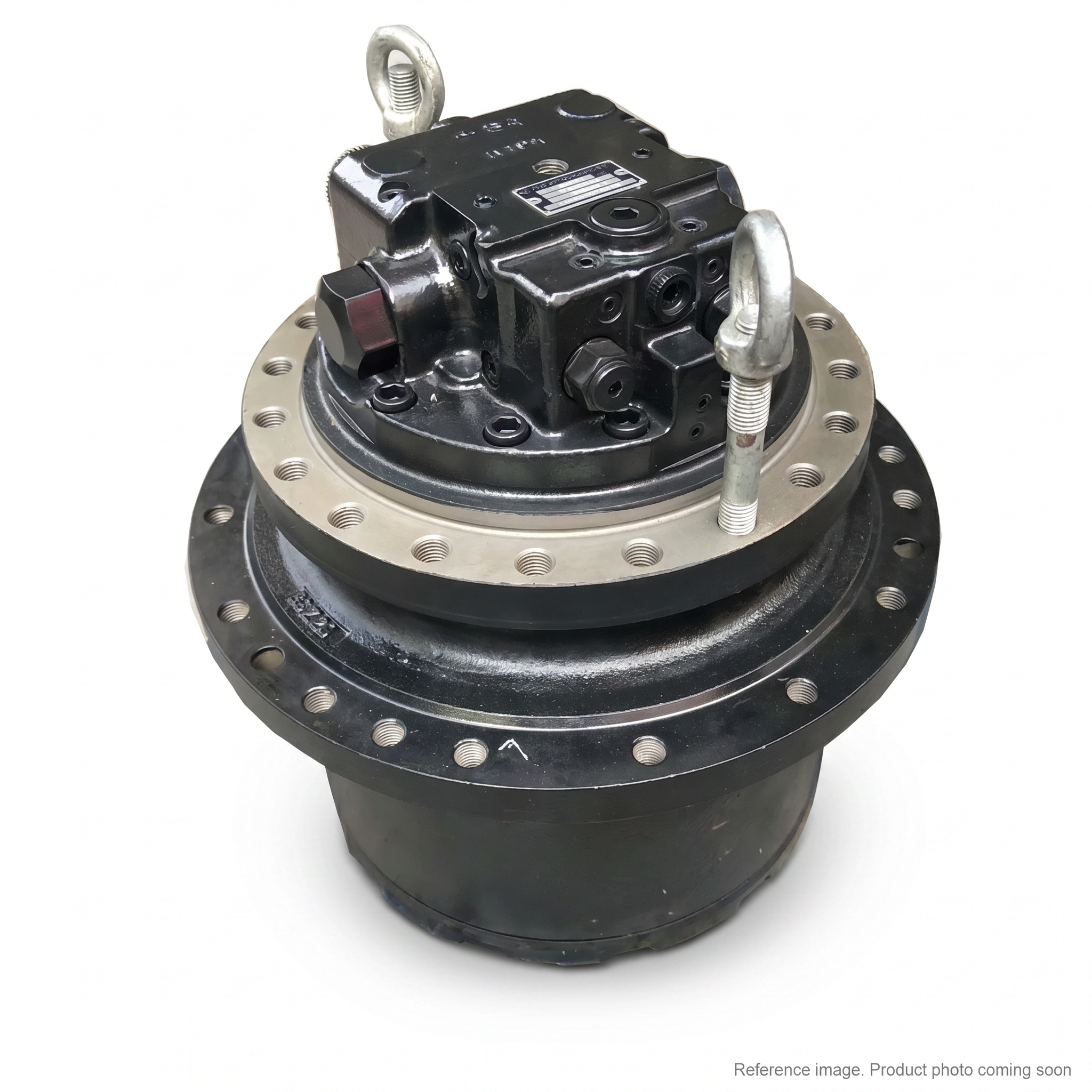

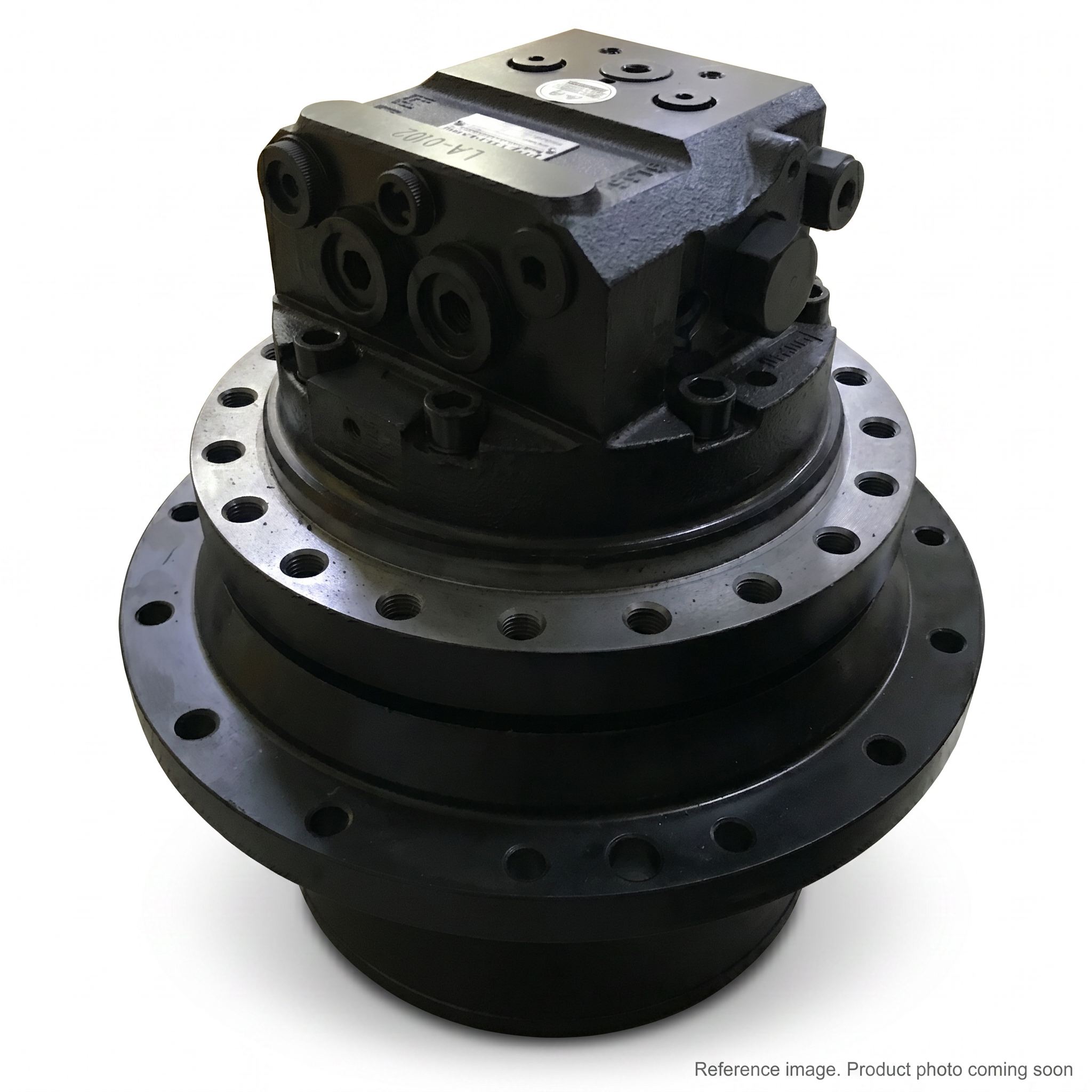

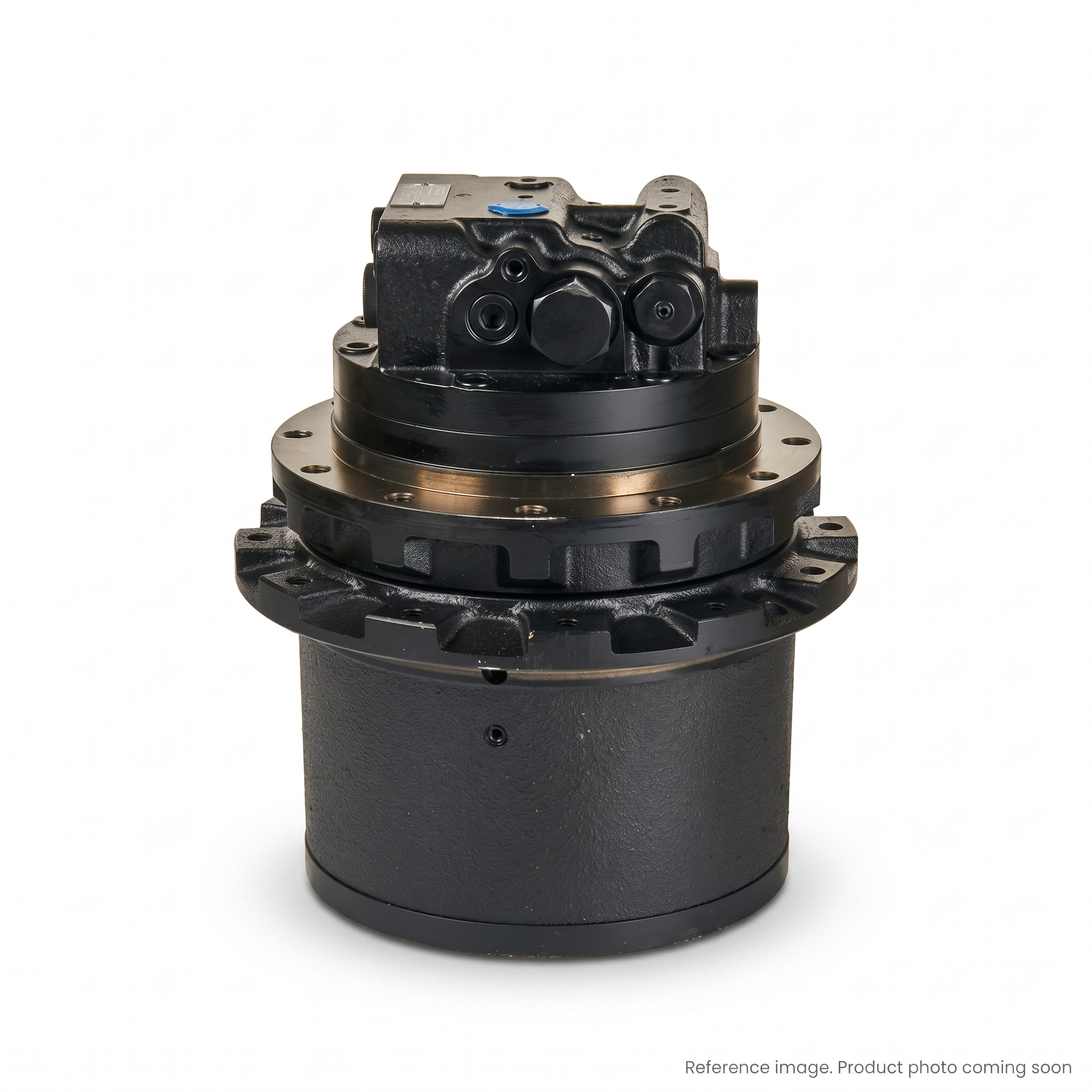

OEM-spec Replacement 2401-9082 Final Drive with Travel Motor
This OEM-spec replacement final drive assembly (part number 2401-9082 / 24019082) is a complete travel device for the Daewoo Solar S220LC-3 and DH220-3 crawler excavators. The assembly includes both the hydraulic travel motor and the planetary gearbox/reduction hub. Built to OEM dimensions and bolt patterns for direct replacement. Stocked in Kelowna, BC — ships Canada-wide.
Specifications
- Part Number: 2401-9082 (also 24019082)
- Type: Final Drive with Travel Motor (complete assembly)
- Machine Frame Inner Diameter: 300 mm
- Sprocket Inner Diameter: 402 mm
- Sprocket Bolt Holes: 22 holes M16
- Frame Bolt Holes: 30 holes M16
- Oil Pipes: 2 main + 2 control (4 total)
- Speeds: 2-speed (1-speed variant also available)
- Weight: Approximately 150 kg
- Condition: New
- Branding: OEM-spec replacement
Fitment
Verified compatible with the following excavators:
- Daewoo Solar S220LC-3
- Daewoo DH220-3
Important: Before ordering, verify the sprocket inner diameter (D dimension), number of sprocket bolt holes, and hydraulic port configuration on your machine against the specs above. Final drive dimensions can vary within model series.
Cross-References
- 2401-9082 / 24019082
- 2401-9082A (variant)
FAQ
What is included in the 2401-9082 final drive assembly?
The assembly includes the complete hydraulic travel motor and the planetary reduction gearbox — a ready-to-install travel device. No additional motor or gearbox is required.
How do I verify this fits my Daewoo S220LC-3?
Measure the inner diameter at the machine frame opening (should be 300 mm), count the sprocket bolt holes (22 holes M16), and check the number of hydraulic hose connections (typically 4). Compare with the specs listed above before ordering.
Is this a genuine Daewoo/Doosan part?
This is an OEM-spec replacement final drive built to the same dimensional and performance specifications as the original Daewoo part. It is not a genuine Doosan OEM part but is engineered to fit and function as a direct replacement.
Where is this stocked?
We stock this final drive assembly at our Kelowna, BC facility. Orders ship Canada-wide. Contact sales@rentwithaim.ca to confirm availability and lead time for this large assembly.
