OEM-spec Dana/Spicer 4209440 Hydraulic Filter | P765075 SPH12554
SKU 4209440
In stock: 3 available · Ships from Kelowna BC
Verify fitment by part number before ordering.
Match the listed SKU and verified cross-references to your current part number. If fitment is not listed, send AIM Rentals the machine details and current part number before ordering.
OEM-spec Dana/Spicer 4209440 Hydraulic Filter | P765075 SPH12554

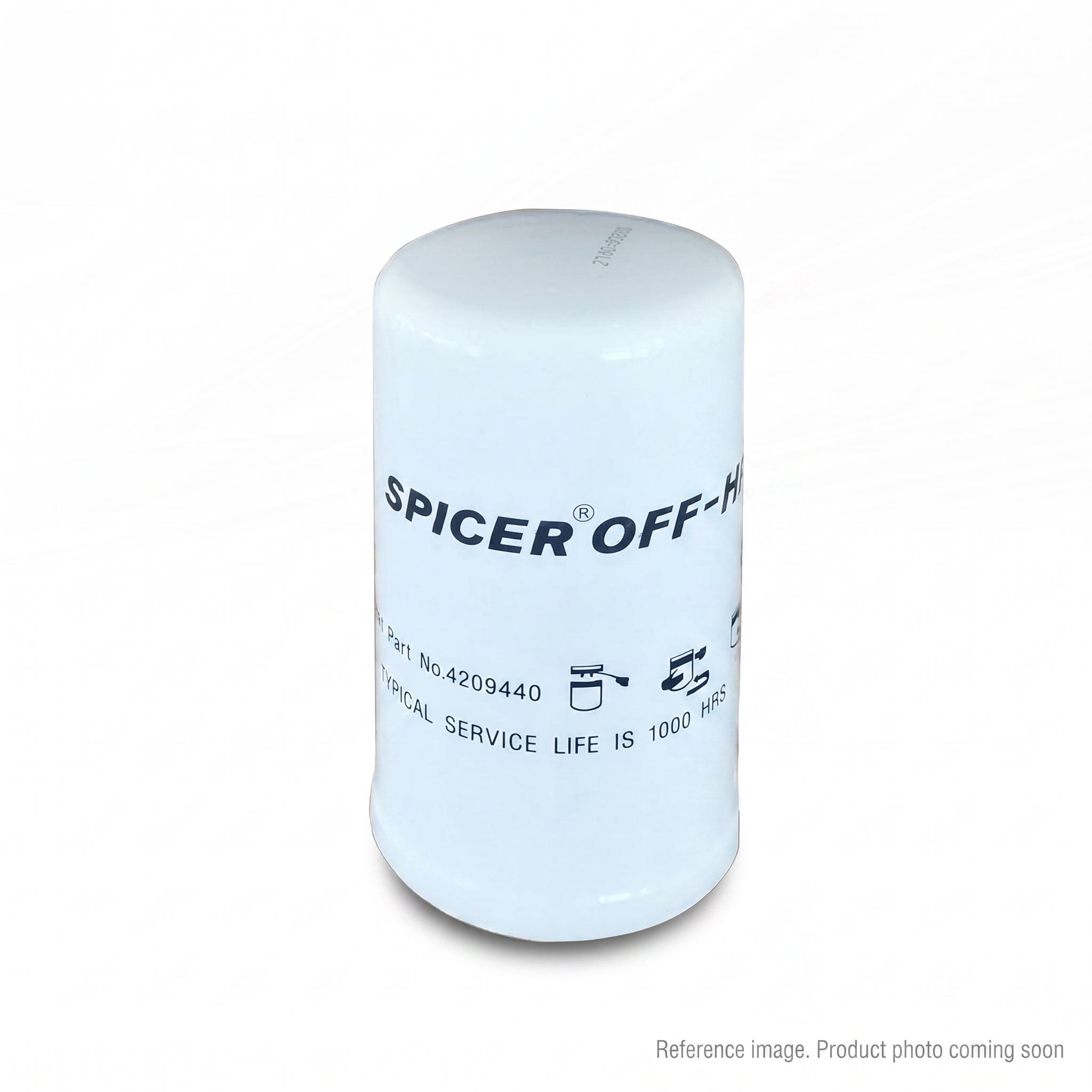

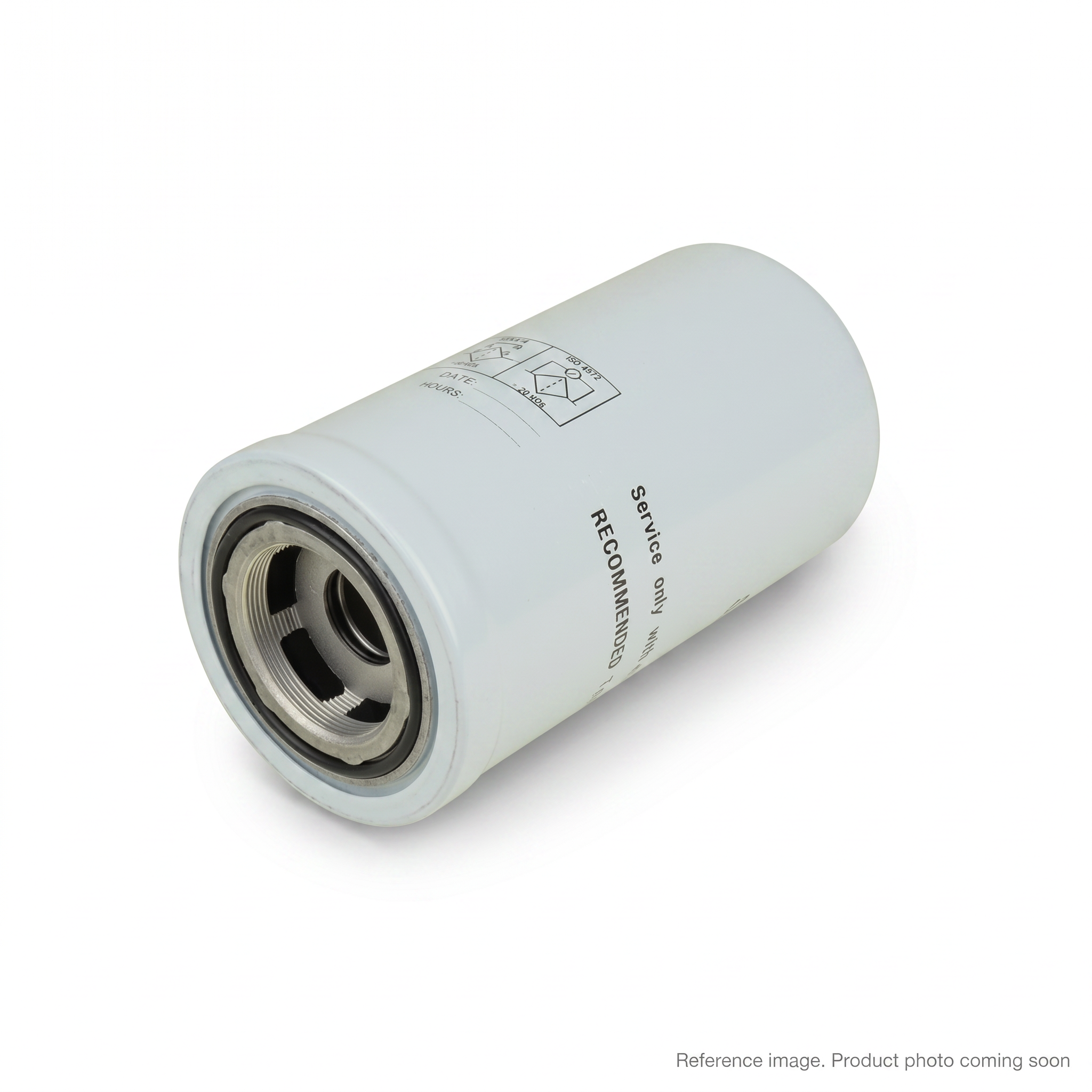

The Dana/Spicer 4209440 is a spin-on hydraulic oil filter used in Dana Spicer axle and driveline systems on heavy equipment including telescopic handlers, wheel loaders, compactors, and other off-highway machinery. Donaldson P765075 is the primary aftermarket equivalent. Stocked in Kelowna, BC and ships Canada-wide.
Specifications
- Part Number: 4209440
- Brand: Dana/Spicer
- Type: Spin-on Hydraulic Filter
- Outer Diameter: 3.82 in (97 mm)
- Length: 7.13 in (180 mm)
- Thread Size: 2-16 UN
- Bypass Valve: Yes, 2.8 bar
- Media Type: Synthetic
- Efficiency: Beta 200 @ 9 micron; Beta 1000 @ 11 micron
Fitment
Used in Dana/Spicer axle and hydraulic systems on heavy equipment. OEM cross-reference references indicate use on:
- Case IH TX130-30, TX130-33 (445TA/Iveco F4GE engine)
- New Holland LM1060, LM5040, LM5060, LM5080
- Terex equipment
- Kalmar equipment (9210280007)
- JLG equipment
Cross-References
- Donaldson: P765075
- SF-Filter: SPH12554
- Wix: 57227, 557227
- Kalmar: 9210280007
- Terex: 10035430, Z6550537, 2C4209440
- Hifi: SH66201
FAQ
What equipment uses the Dana/Spicer 4209440 hydraulic filter?
It is used in Dana Spicer off-highway axle systems found in telehandlers, wheel loaders, compactors, and forklifts from brands such as Case, New Holland, Terex, JLG, and Kalmar.
Does Donaldson P765075 replace 4209440?
Yes. Donaldson P765075 is the confirmed primary aftermarket replacement for the Dana/Spicer 4209440 hydraulic filter.
Is 4209440 the same as SPH12554?

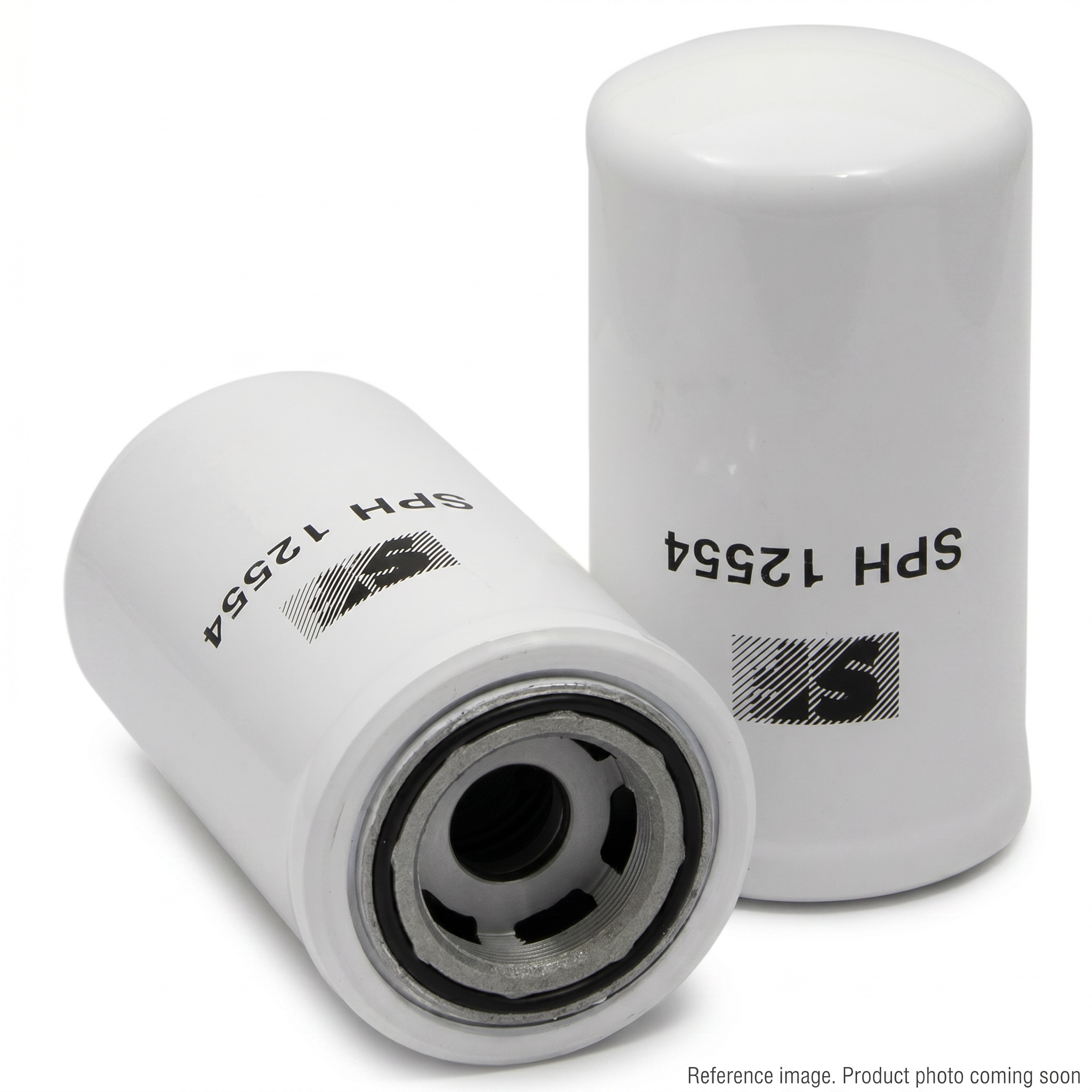

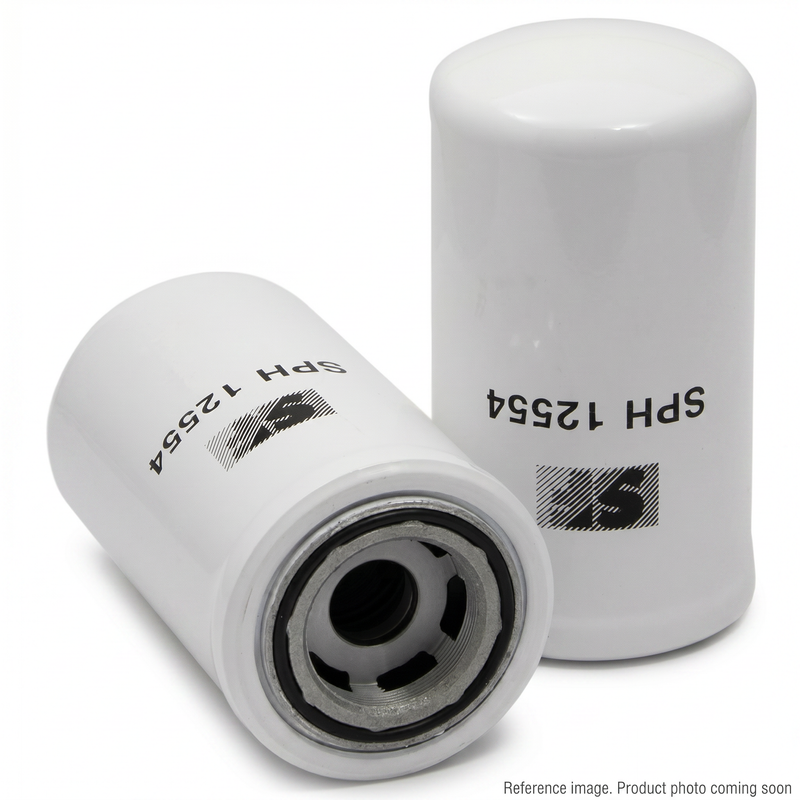

Yes. SF-Filter SPH12554 is a direct cross-reference for the 4209440 spin-on hydraulic filter, confirmed via SF-Filter cross-reference database.
Do you ship to Canada?
Yes. Stocked in Kelowna, BC and ships Canada-wide.
