Danfoss 157B2175 PVLP63 Shock and Anti Cavitation Valve 175 Bar | PVG 32 PVG 100

Danfoss 157B2175 Shock and Anti Cavitation Valve, 175 Bar

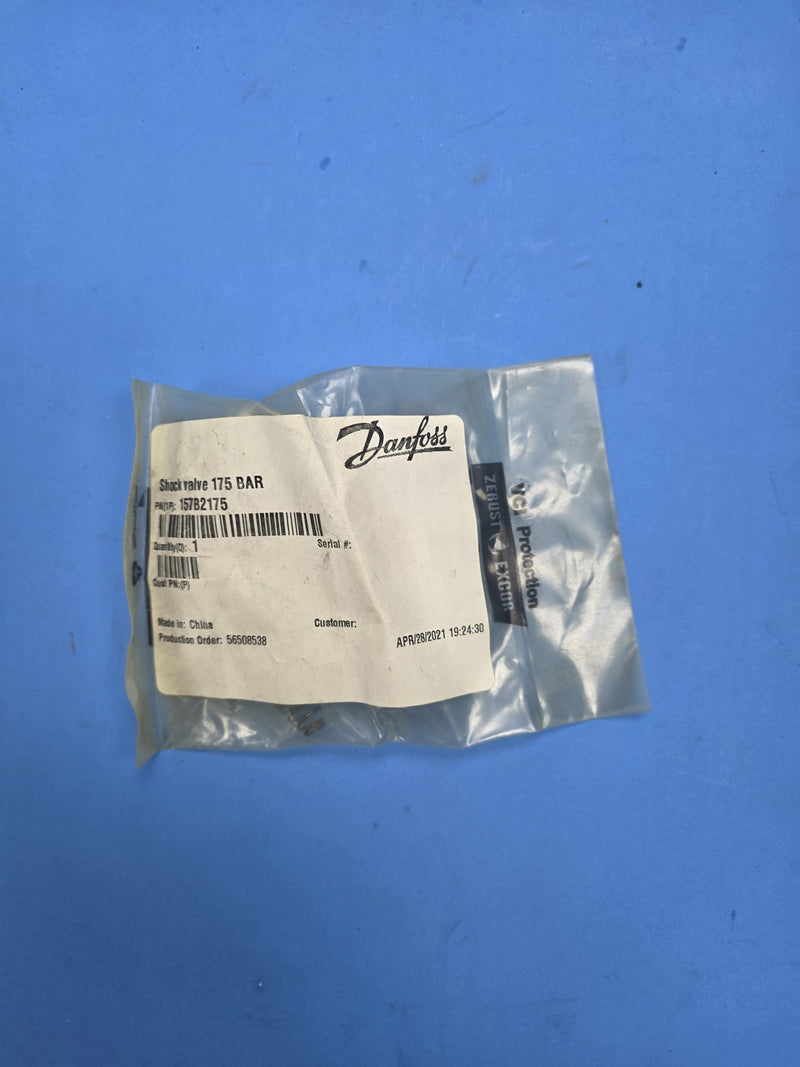

Unopened ZERUST EXCOR VCI pouch with the original Danfoss production label: Shock valve 175 BAR, PN(1P) 157B2175, quantity 1, made in China, production order 56508538, date stamped APR/28/2021.

175 bar, about 2538 psi, is one of the softer standard PVLP settings. It shows up in circuits where the goal is to protect a component that cannot take full system pressure, for example a rotator, a tilt frame or a small cylinder hung off a larger machine. The cartridge screws into the PVLP63 shock cavity on the A or B port of a PVG work section and carries both the fixed relief poppet and the anti cavitation makeup check in one body.

What it does

• Opens at a fixed 175 bar to bleed off a pressure spike before it reaches the actuator
• Lets the light side of the circuit draw makeup oil instead of pulling a vacuum
• Protects lower rated components fed off a higher pressure PVG stack
• Fixed setting, one part number per pressure, no adjustment screw

Fitment

• Make: Danfoss
• Cavity: PVLP63 shock valve cavity, A and B ports
• Valve groups: PVG 32 and PVG 100
• Part number: 157B2175
• Pressure setting: 175 bar, fixed, parts in body

Catalogued applications from our earlier number research include Hiab 144 loader cranes, Palfinger PK 10000, John Deere 1270E forwarders and Liebherr R924 excavators. Those are catalogued applications rather than anything printed on this pouch, so check your own valve build or ask us and we will confirm.

Stocked one unit in Prince George, BC. Ships free Canada wide, no brokerage surprise. Price is all in.
