Danfoss 157B2320 PVLP63 Shock and Anti Cavitation Valve 320 Bar | PVG 32 PVG 100

Danfoss 157B2320 Shock and Anti Cavitation Valve, 320 Bar

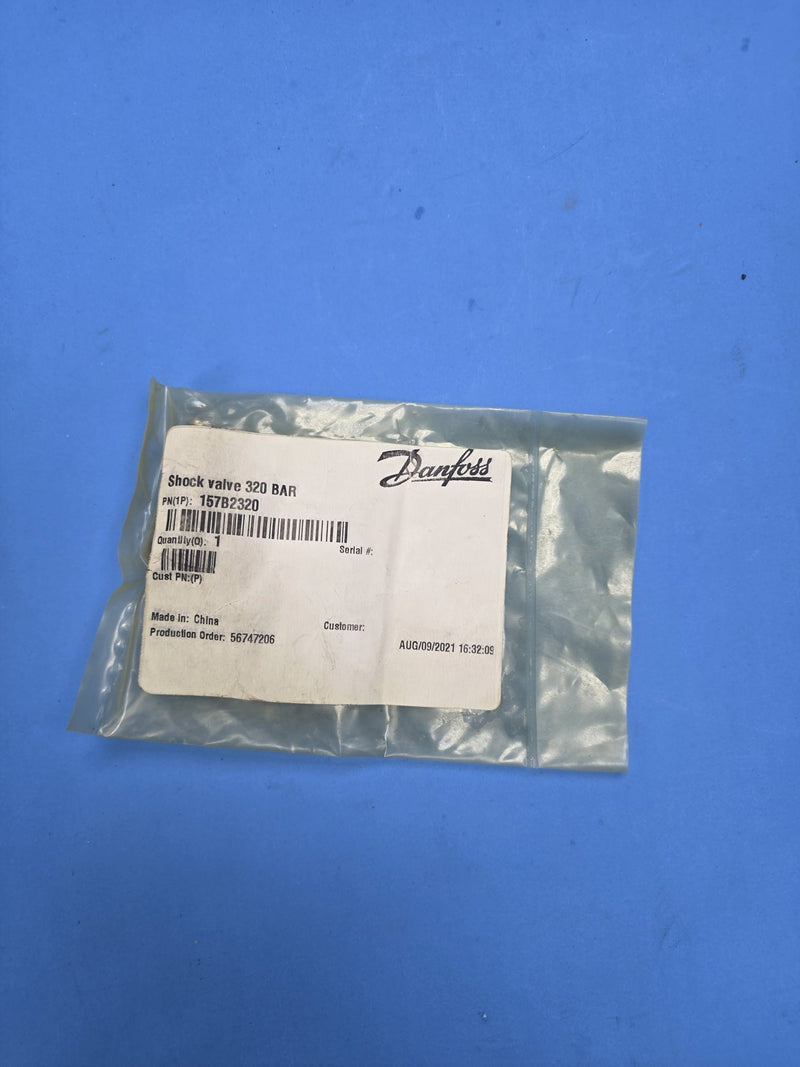

Sealed ZERUST EXCOR VCI pouch, original Danfoss production label reading Shock valve 320 BAR, PN(1P) 157B2320, quantity 1, made in China, production order 56747206, date stamped AUG/09/2021. New, unopened shelf stock.

320 bar is the top standard setting in the PVLP range, so this is the cartridge you want in a high pressure PVG circuit where a lower relief would open during normal work and bleed the function off. It threads into the A or B port shock valve cavity of a PVG work section and combines a fixed 320 bar relief poppet, roughly 4641 psi, with an anti cavitation makeup check.

What it does

• Relieves port pressure spikes at a fixed 320 bar without nuisance opening under normal high pressure work
• Protects the cylinder rod, hoses and the valve body from hydraulic hammer
• Refills the low side through the anti cavitation check on a runaway or overhauling load
• Not adjustable, so the pressure is fixed by the part number

Fitment

• Make: Danfoss
• Cavity: PVLP63 shock valve cavity, A and B ports
• Valve groups: PVG 32 and PVG 100
• Part number: 157B2320
• Pressure setting: 320 bar, fixed, parts in body

Confirm the pressure setting your section was built with before you order. If you are not sure, send us a photo of the valve tag and we will read it for you.

Stocked one unit in Prince George, BC. Ships free Canada wide, no brokerage surprise. Price is all in.
