Genuine Dodge 023166 TP-E-400R Bearing | TP60 Take-Up Frame
SKU 023166
In stock: 1 available · Ships from Kelowna BC
Verify fitment by part number before ordering.
Match the listed SKU and verified cross-references to your current part number. If fitment is not listed, send AIM Rentals the machine details and current part number before ordering.
Dodge 023166 TP-E-400R Bearing | TP60 Take-Up Frame

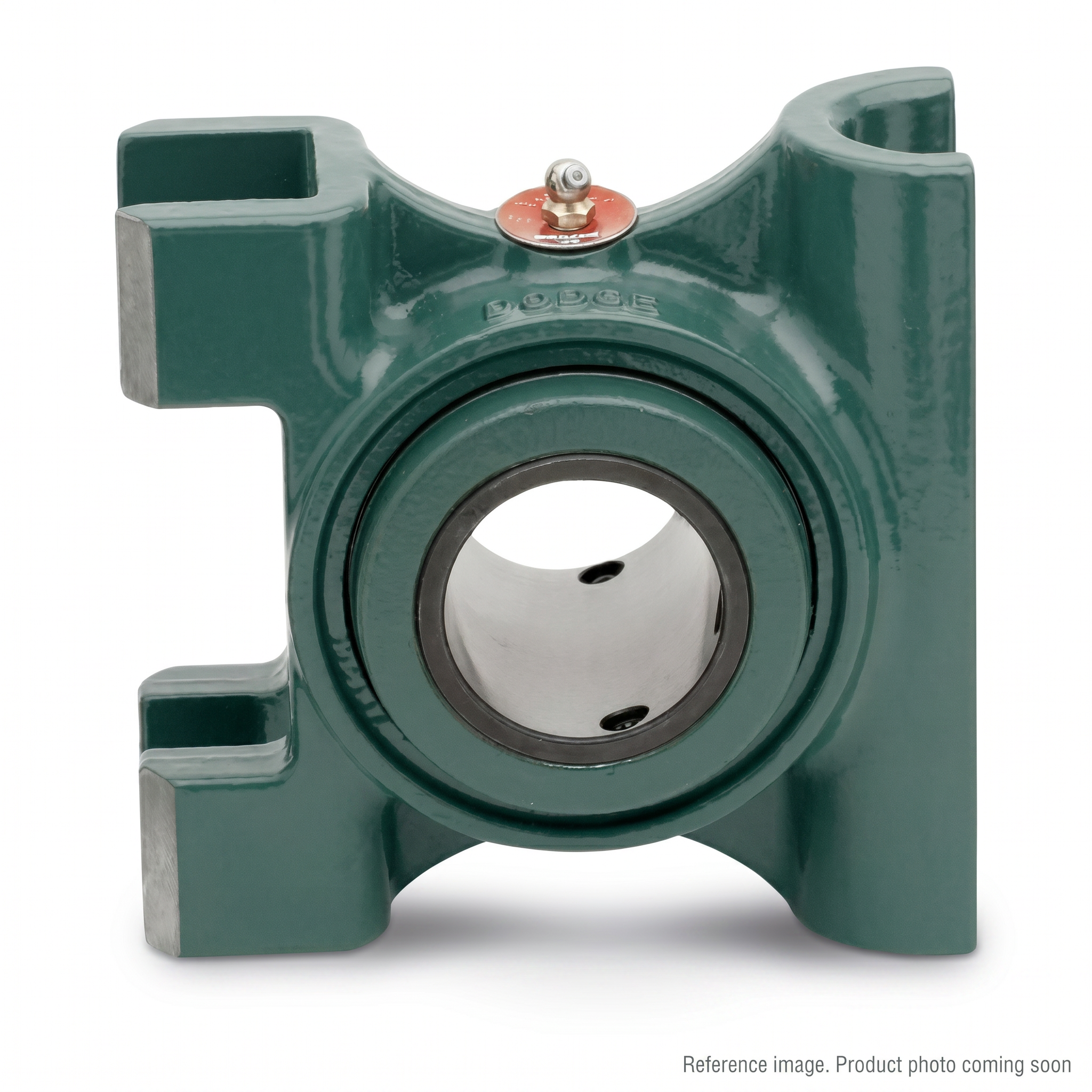

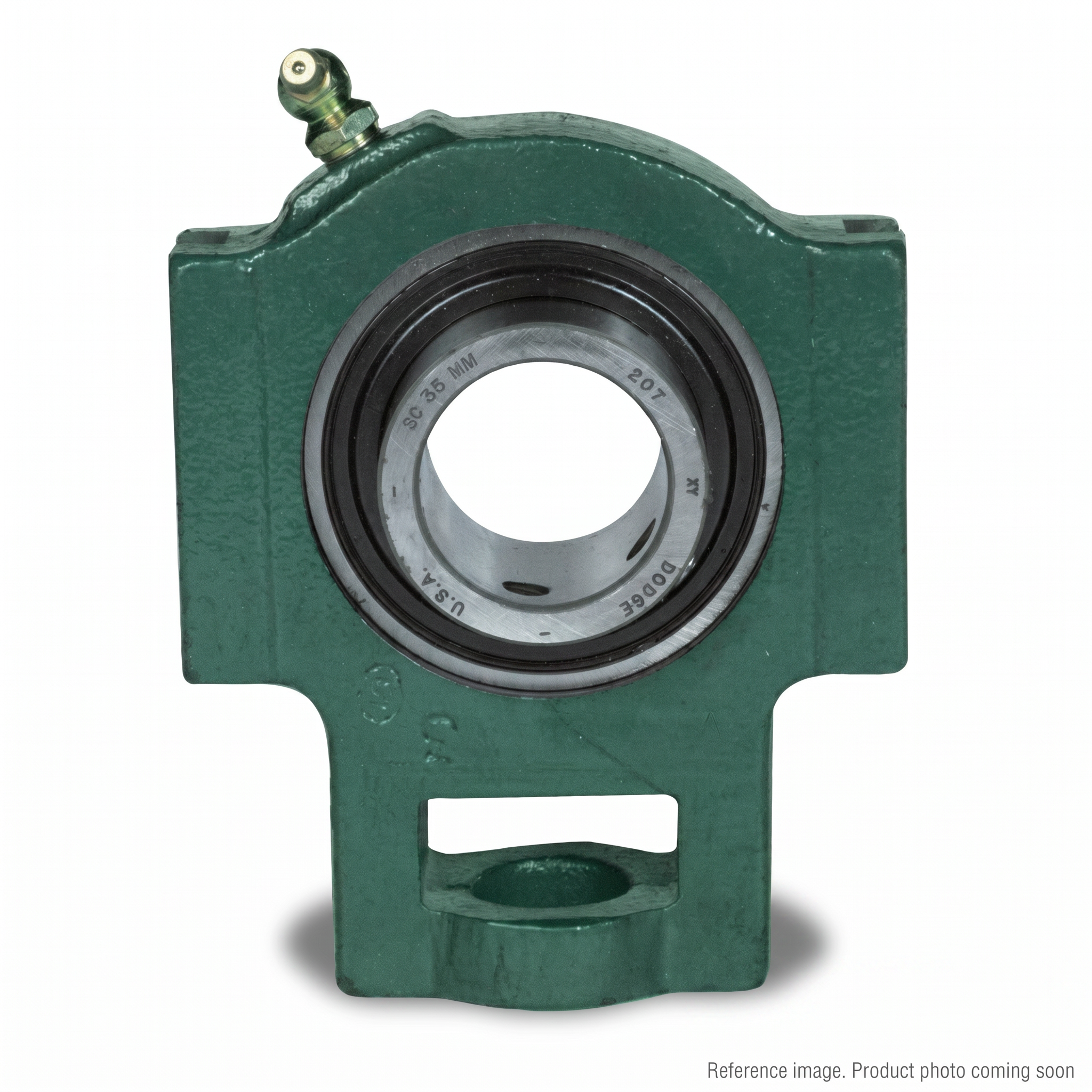

The Dodge 023166 is a genuine Dodge E-Xtra series top-angle take-up roller bearing with a 4-inch bore, designed for use with the TP60 top-angle take-up frame. Featuring tapered roller design, set-screw locking, and cast iron housing, it delivers proven performance in conveyor, mining, paper, and industrial processing applications. Stocked in Kelowna BC, ships Canada-wide.
Specifications
- Part Number: 023166
- Series: TP-E-400R (Type E-Xtra)
- Bore: 4 inches (4 in)
- Housing: Cast iron, top-angle take-up
- Locking: Set screw / Springlok collar
- Rolling Element: Tapered roller
- Load Capacity: 24,400 lb dynamic / 154,000 lb static
- Temperature Rating: -100°F to 200°F
- Compatible Frame: TP60 Top-Angle Take-Up
- Length: 11 in | Width: 6-1/4 in | Height: 11 in
Fitment
- TP60 Top-Angle Take-Up Frame assemblies
- Conveyor belt systems
- Industrial and material handling equipment
- Mining, cement, aggregate, paper/forest industries
Cross-References
- Dodge TP-E-400R (model designation)
FAQ
What frame does the Dodge 023166 fit?
The 023166 is designed for use with the TP60 top-angle take-up frame.
What type of bearing is this?
It is a non-expansion, tapered roller bearing with a 4-inch bore and set-screw locking collar.
Do you ship Canada-wide?
Yes — we ship from Kelowna BC to all Canadian provinces and territories.
Is this a genuine Dodge bearing?
Yes, 023166 is the genuine Dodge (Baldor-Dodge) catalog part number for the TP-E-400R E-Xtra bearing.
