Fairview PC1468-6C DOT Push-to-Connect Fitting | 3/8" Tube x 3/8" MPT Air Brake
SKU PC1468-6C
In stock: 2 available · Ships from Kelowna BC
Verify fitment by part number before ordering.
Match the listed SKU and verified cross-references to your current part number. If fitment is not listed, send AIM Rentals the machine details and current part number before ordering.

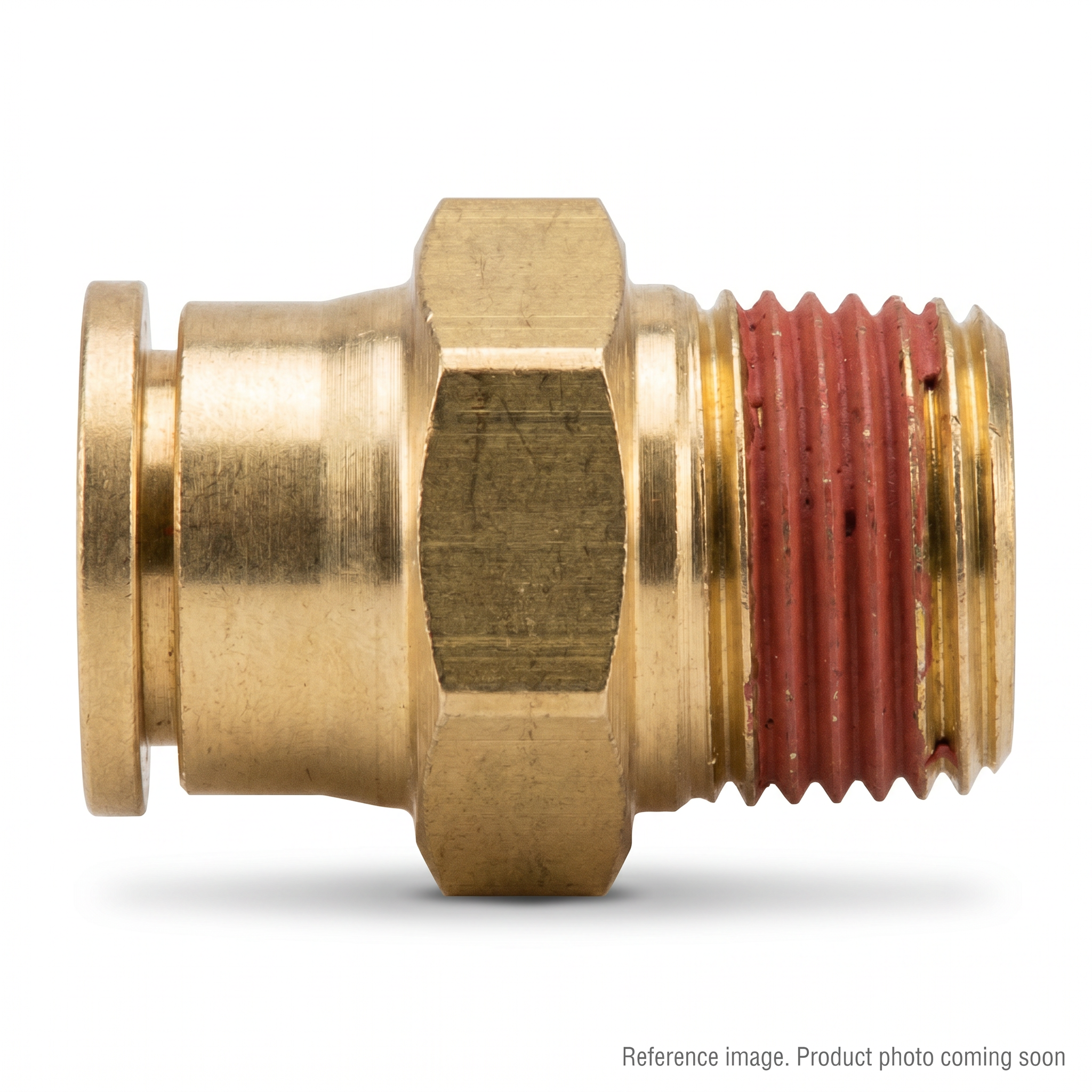

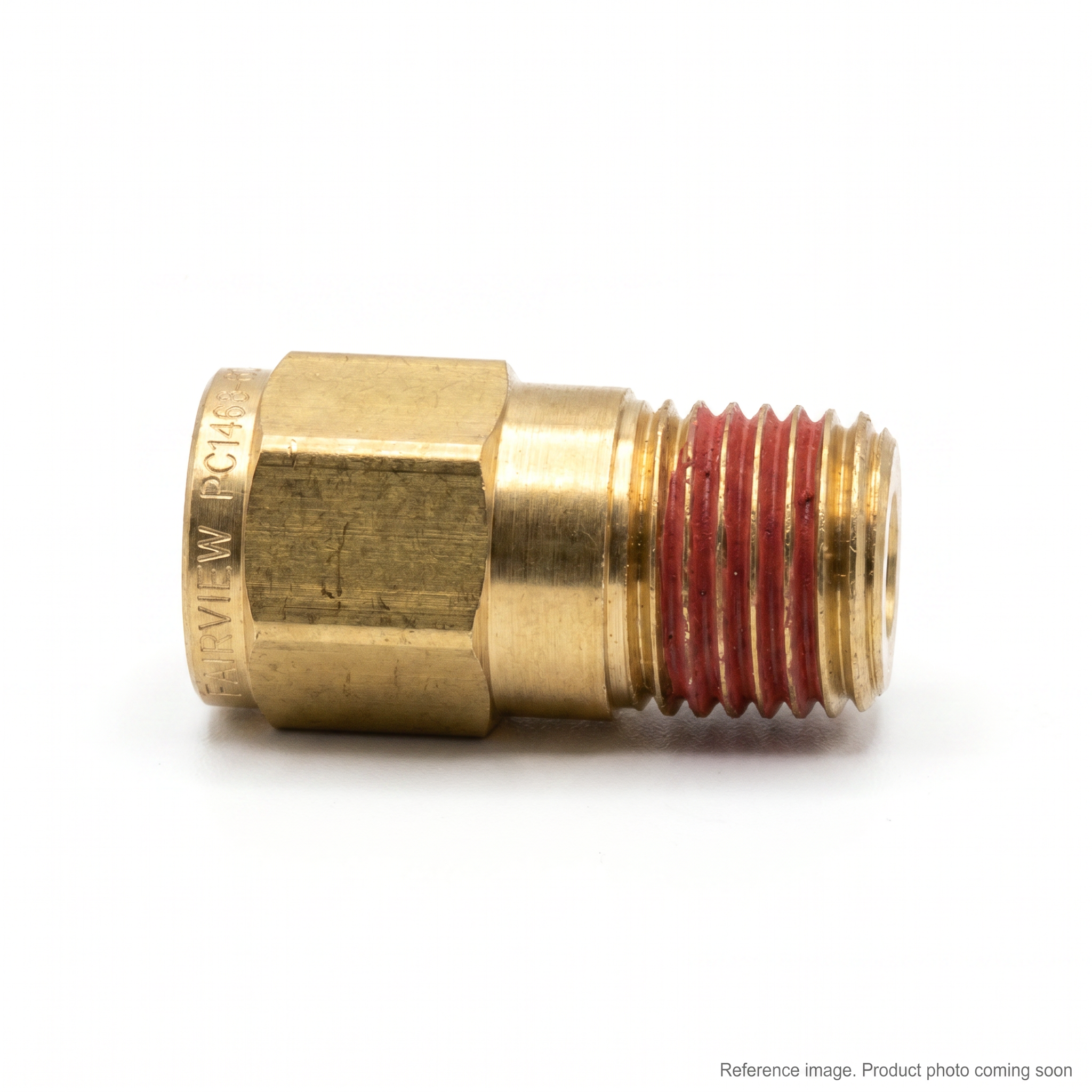

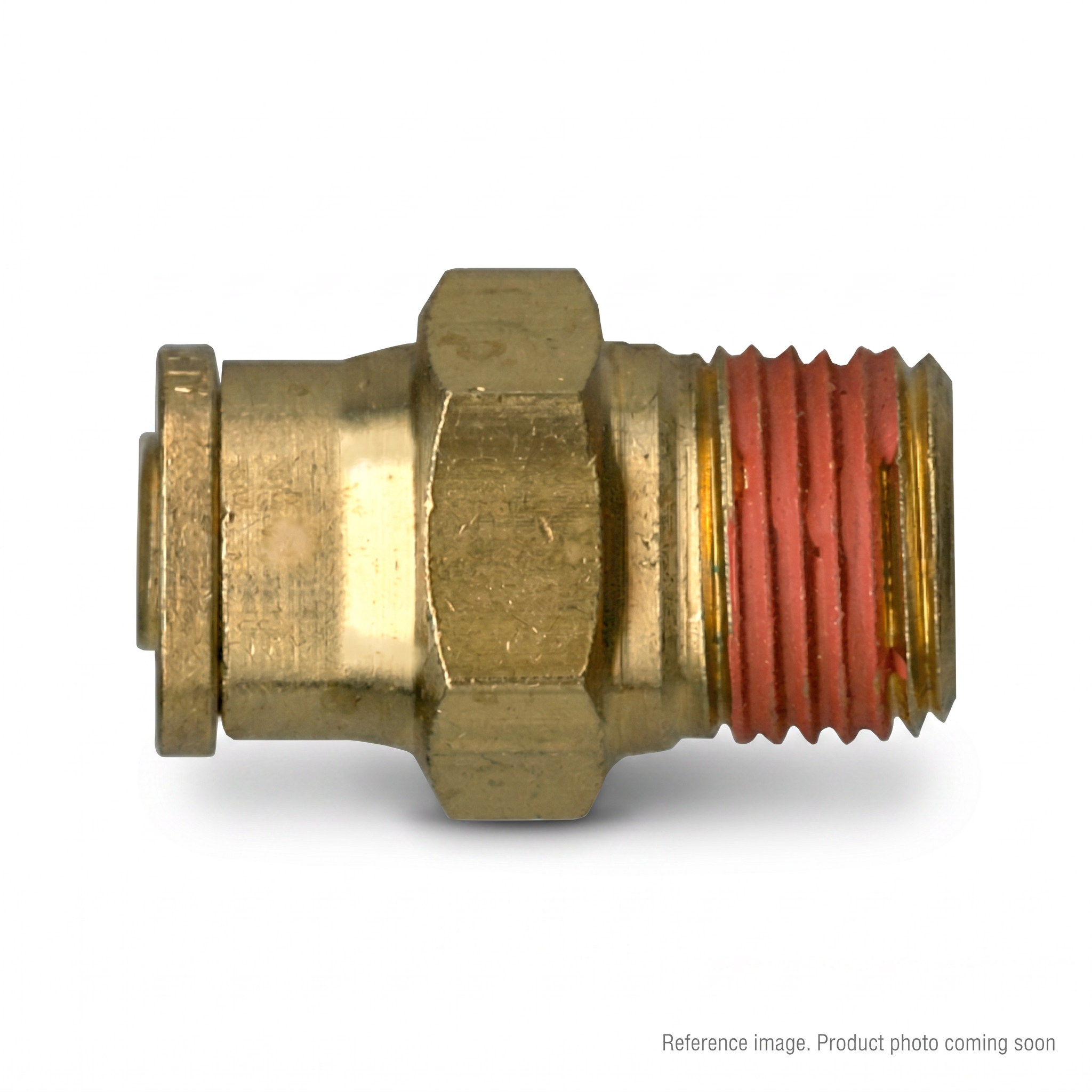

The Fairview PC1468-6C is a D.O.T.-recognized brass push-to-connect male connector fitting for air brake systems on heavy-duty trucks and trailers. It connects 3/8" OD nylon air brake tubing to a 3/8" male NPT pipe port with no tools required. Stocked in Kelowna, BC and ships Canada-wide.
Specifications
- Part Number: PC1468-6C
- Brand: Fairview
- Type: Brass DOT Push-to-Connect Male Connector
- Tube Size: 3/8" OD (J844D nylon air brake tube)
- Pipe Thread Size: 3/8" Male NPT (MNPTF)
- Hex Size: 11/16"
- Pressure Rating: 350 PSI
- Temperature Range: -40°F to 225°F (-40°C to 107°C)
- Material: Brass
- O-Ring: Buna-N
- Standards: D.O.T. FMVSS 571.106, SAE J1131
- Stocking Location: Kelowna, BC, Canada
Fitment
The PC1468-6C fits air brake systems on heavy-duty commercial trucks and trailers that use 3/8" OD nylon air brake tubing (DOT J844D) with 3/8" NPT pipe ports. D.O.T. recognized for all air brake applications except those between frame and axle or between towed and towing vehicles.
Cross-References
- 6812X12
- PC14686C
- 68PMT-6-6
- PL1368-6C
- S38PMT-6-6
- 268PPDOT-6C
- DQ68DOT-6X6
FAQ
What is the PC1468-6C fitting used for?
The PC1468-6C is used to connect 3/8" OD nylon air brake tubing to 3/8" male NPT pipe ports in heavy-duty truck and trailer air brake systems. It is D.O.T. compliant per FMVSS 571.106 and SAE J1131.
What tube size does PC1468-6C accept?
It accepts 3/8" OD nylon air brake tubing (J844D specification). For 3/8" tube x 1/2" pipe see PC1468-6D.
Is PC1468-6C DOT approved?
Yes. The PC1468-6C meets D.O.T. FMVSS 571.106 and SAE J1131 requirements. It is D.O.T. recognized for air brake applications excluding frame-to-axle and tow vehicle connections.
Where is this stocked?
In stock at our Kelowna, BC location. Ships Canada-wide. Orders placed before 2:00 PM Pacific ship same business day.
