Gates G20170-1212 GlobalSpiral Hydraulic Hose Coupling 3/4"
SKU 201701212
In stock: 2 available · Ships from Kelowna BC
Verify fitment by part number before ordering.
Match the listed SKU and verified cross-references to your current part number. If fitment is not listed, send AIM Rentals the machine details and current part number before ordering.
Gates G20170-1212 GlobalSpiral Hydraulic Hose Coupling

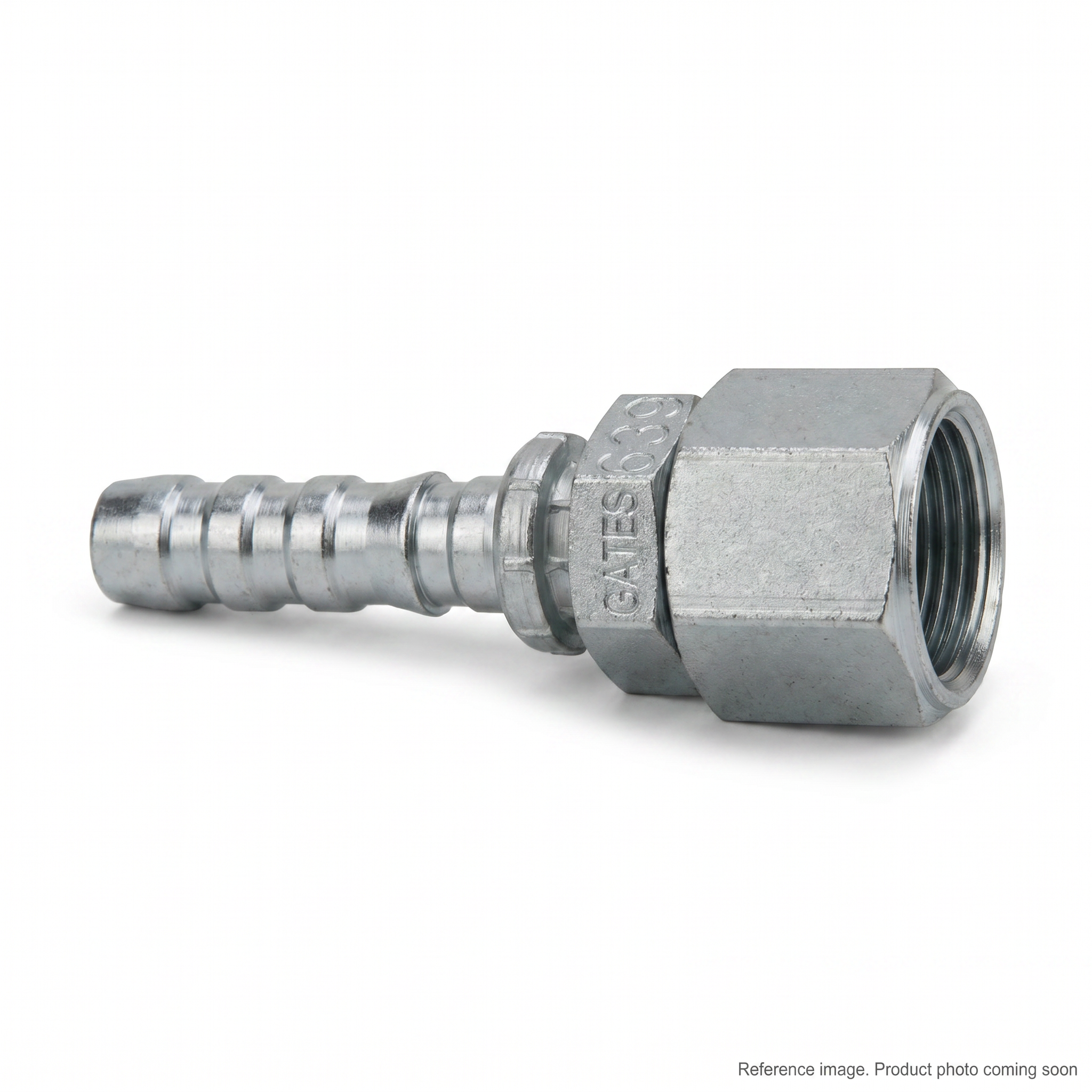

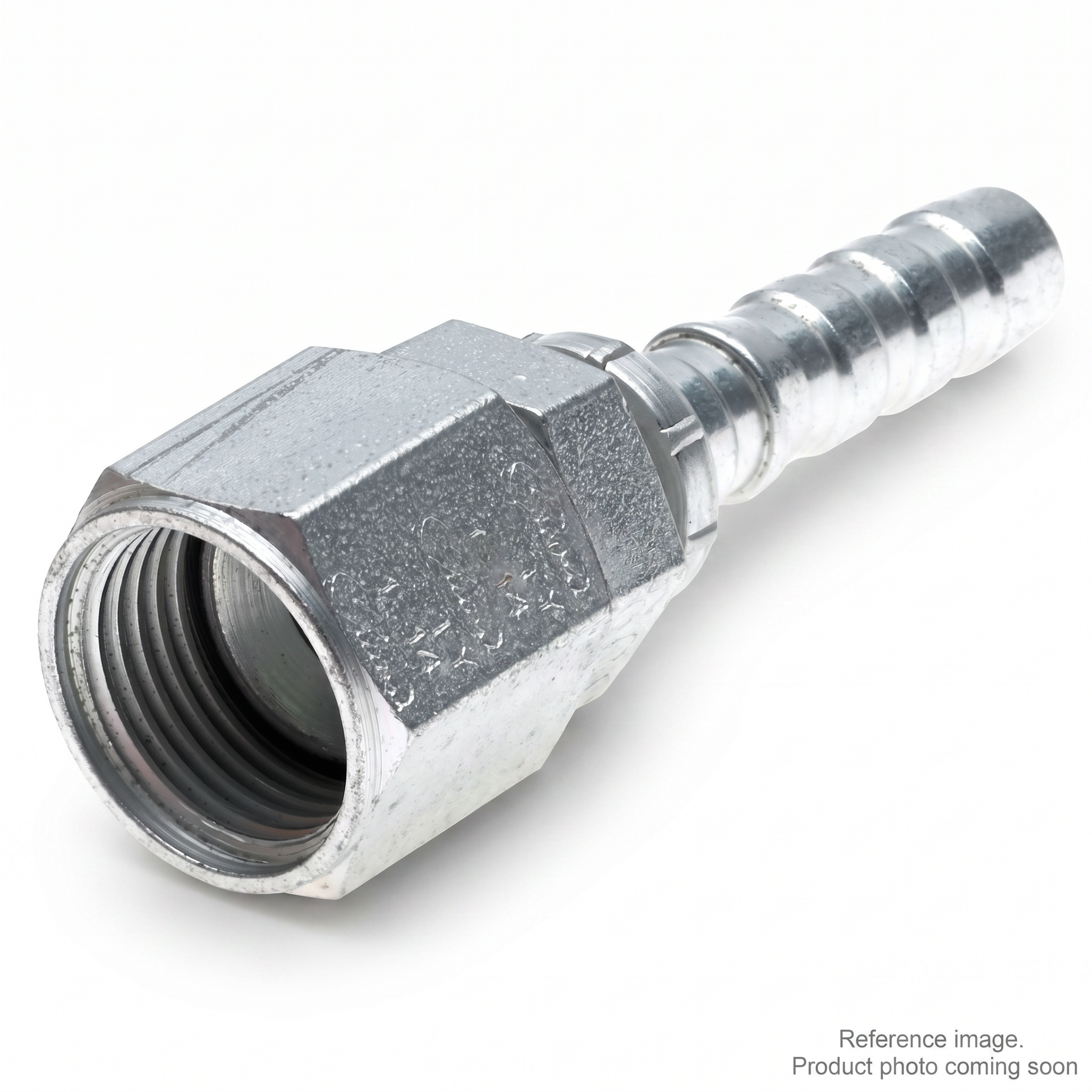

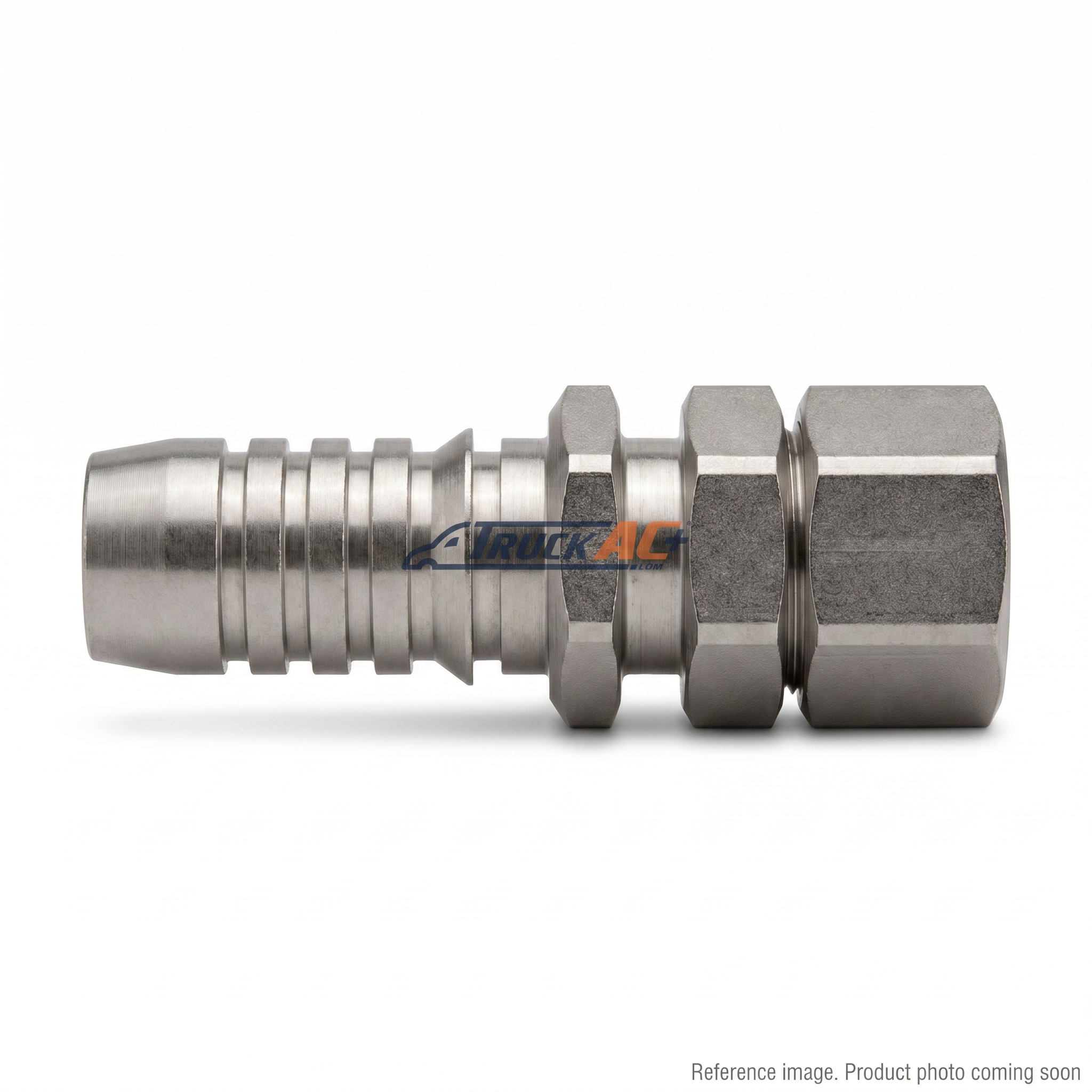

Genuine Gates G20170-1212 (also cataloged as 201701212 and 12GS-12FJX) GlobalSpiral hydraulic hose coupling. This is a female JIC 37° flare swivel coupling for 3/4" (19.1 mm) inside diameter four- and six-spiral wire hydraulic hose up to 8,000 psi. Features Gates' innovative two-piece no-skive design for fast, contamination-free assemblies. Stocked in Kelowna, BC and ships Canada-wide.
Specifications
- Part Number: G20170-1212 / 201701212 / 12GS-12FJX
- Type: Female JIC 37° Flare Swivel Coupling (GlobalSpiral)
- Hose Inside Diameter: 3/4" (19.1 mm)
- Thread Size: 1-1/16"-12 UN
- Stem Hex: 1"
- Nut Hex: 1-1/4"
- Length: 98.3 mm (3.87")
- Cut-Off: 47 mm (1.86")
- Max Pressure: Up to 8,000 psi (with MegaSys 4/6-wire hose)
- Brand: Gates GlobalSpiral
- Stocked: Kelowna, BC — ships Canada-wide
Fitment
For use with all Gates MegaSys four- and six-spiral wire hydraulic hose rated up to 8,000 psi. Also compatible with 2-wire braid hoses using 2-wire ferrules. Suitable for high-pressure hydraulic systems on heavy construction, agricultural, and industrial equipment.
Cross-References
- G20170-1212
- 201701212
- 12GS-12FJX
- 734724445
- 7347-24445
FAQ
What is the Gates GlobalSpiral system?
Gates GlobalSpiral no-skive couplings are engineered for extreme high-pressure, high-impulse spiral-wire hose applications. Rated for 1,000,000 impulse cycles and up to +250°F temperature capability.
What hoses does this fit?
Fits all Gates MegaSys four- and six-spiral wire hydraulic hose up to 6,000–8,000 psi. When used with 2-wire ferrules, can also be crimped on wire-braid hoses.
Is this a genuine Gates part?
Yes. G20170-1212 is a genuine Gates GlobalSpiral catalog part, confirmed across multiple authorized Gates distributors.
Ships from BC?
In stock in Kelowna, BC. Ships Canada-wide with fast dispatch.
Fitment data available on request. Email sales@rentwithaim.ca with your machine year/make/model.
