Genuine Dana Spicer 123.06.016.03 Seal | Made in Italy | Driveline
SKU 123.06.016.03
In stock: 1 available · Ships from Kelowna BC
Verify fitment by part number before ordering.
Match the listed SKU and verified cross-references to your current part number. If fitment is not listed, send AIM Rentals the machine details and current part number before ordering.
Genuine Dana Spicer 123.06.016.03 Seal

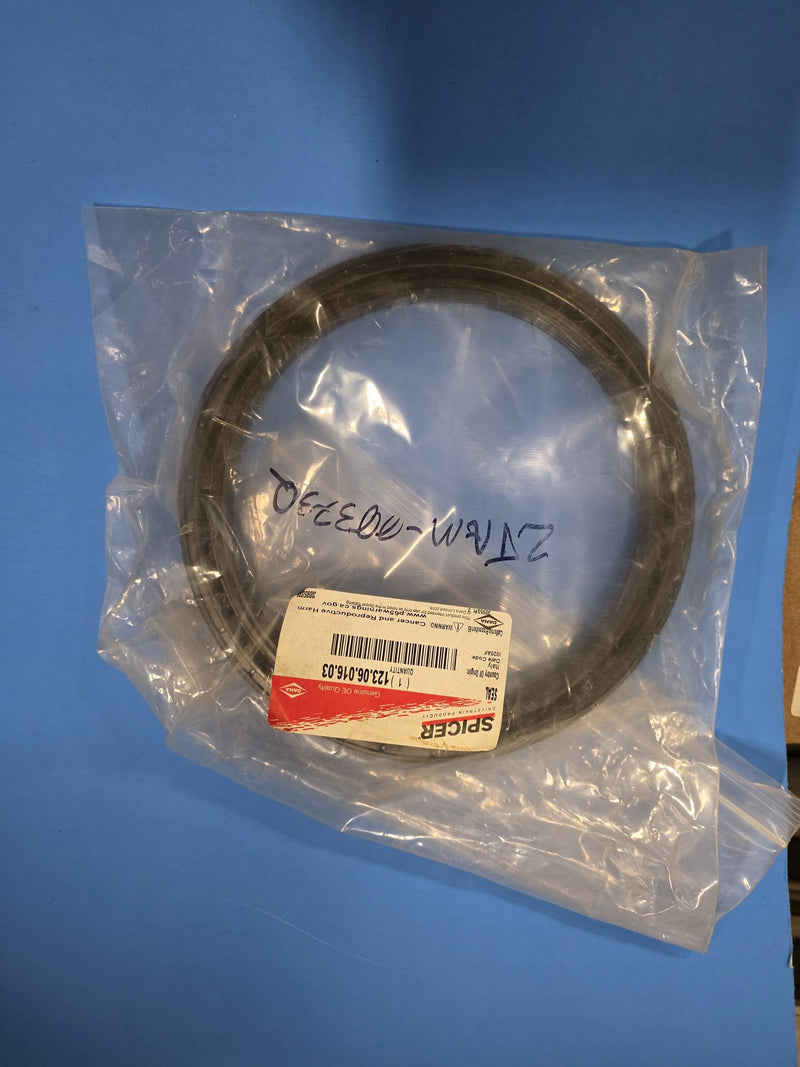

Clear zip bag with the red and white SPICER Genuine OE Quality printed label, blue Dana Holding Corporation logo at the top. Part number 123.06.016.03, description SEAL, quantity 1, country MADE IN ITALY. A hand written cross reference on the outer bag reads ZTBM-M03230 in ink, a picker note for a cross reference to a Hyundai wheel loader number where this Spicer seal is used. Through the bag a dark rubber seal ring with a metal reinforcement is visible.
FinditParts publishes 123.06.016.03 as a Dana Spicer multi-purpose seal with cross references to 001.25.1544, 125.1544, 123.06.016.01 and 12306.016.01. GCIron lists the same number and confirms it as a Dana driveline seal. Dana Aftermarket carries the Spicer wheel seal family at similar spec (bore diameter around 160 mm, shaft 121 mm, thickness 31 mm), consistent with a wheel end or transmission internal seal. The maker is Dana (Spicer brand), origin Italy, per the printed label.
The price 125.99 is our all in retail. Parts basis 94 CAD (FleetPride Spicer wheel seal 673301 at USD 67.99 as the closest priced comparable, at 1.38 USD to CAD), plus the small item freight allowance 22, times 1.08, rounded up to the next 99.
What is on the label
- Dana Holding Corporation Spicer Genuine OE Quality printed label on a clear zip bag
- Part number 123.06.016.03
- Description: SEAL
- Quantity 1, made in Italy
- Hand written cross reference on the outer bag: ZTBM-M03230 (picker cross to a Hyundai wheel loader application)
Fitment
- Make: Dana (Spicer brand), origin Italy
- Application: driveline seal, wheel end or transmission internal, on Dana Spicer axle and driveline assemblies
- Cross references per FinditParts: 001.25.1544, 125.1544, 123.06.016.01, 12306.016.01
- Picker cross written on the outer bag: ZTBM-M03230 (Hyundai wheel loader application, not asserted from the Spicer label)
- Confirm by machine model, axle model and serial number
- Dana Spicer part number: 123.06.016.03
Stocked one unit in Prince George, BC. Ships free Canada wide, no brokerage surprise. Price is all in.
Fitment data available on request. Email sales@rentwithaim.ca with your machine year/make/model.
