Genuine Hella 996152141 Time Delay Relay | 24V 5-Pin 0-900s
SKU 996152141
In stock: 3 available · Ships from Kelowna BC
Verify fitment by part number before ordering.
Match the listed SKU and verified cross-references to your current part number. If fitment is not listed, send AIM Rentals the machine details and current part number before ordering.

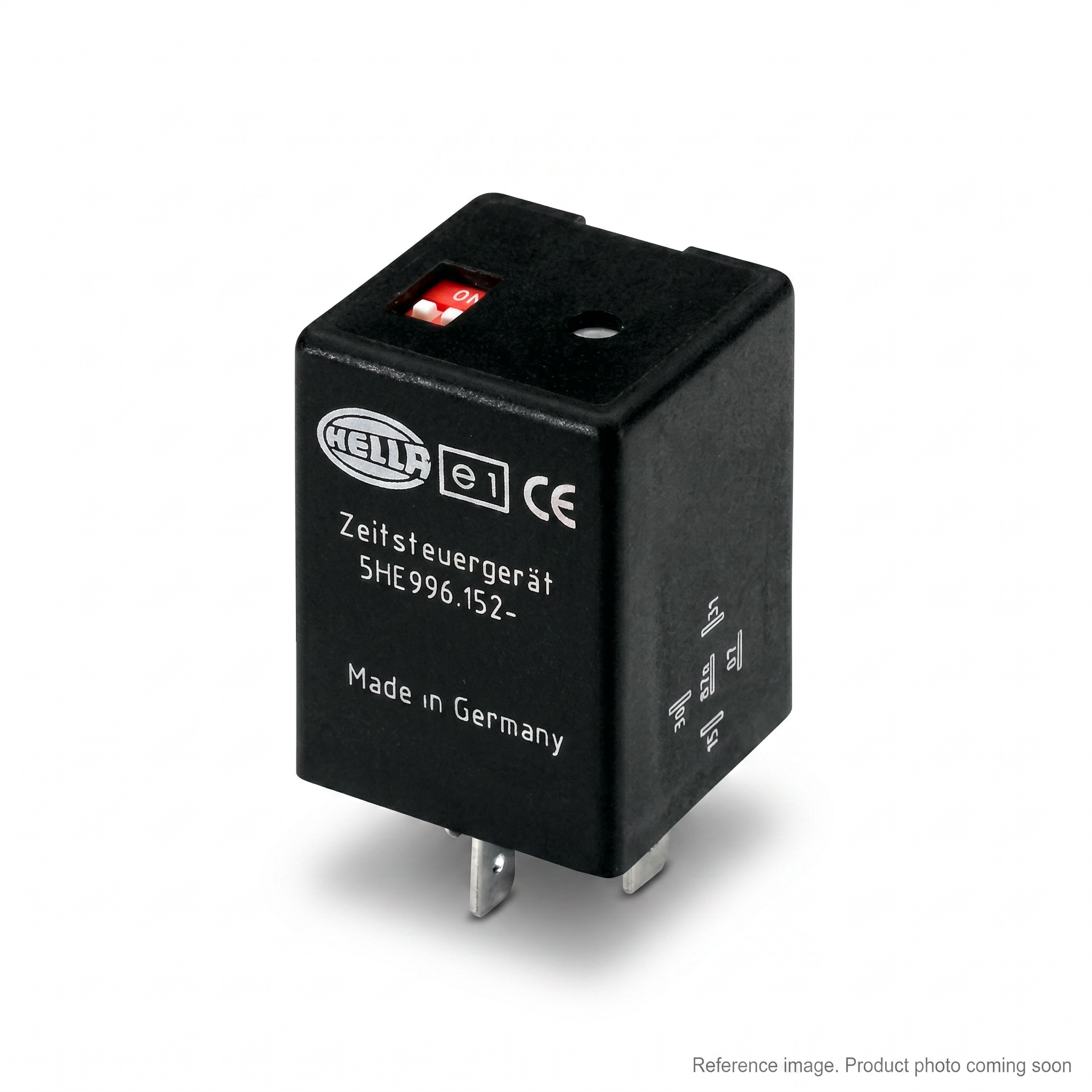

Genuine Hella 996152141 24V Time Delay Relay
The Hella 996152141 is a genuine Hella 24-volt, 5-pin SPDT time delay relay with switch-off delay function adjustable from 0 to 900 seconds (0–15 minutes). Engineered to original equipment manufacturer standards, this relay is stocked in Kelowna, BC and ships Canada-wide to keep your equipment running.
Specifications
- Part Number: 996152141 (also marked 5HE 996 152-141)
- Type: Time Delay Relay — Switch-Off Delay
- Voltage: 24V DC
- Switch Function: SPDT (Changeover Contact / Form C)
- Connectors: 5-pin blade terminals (6.3 mm × 0.8 mm)
- Switching Capacity: 10A
- Adjustment Range: 0–900 seconds (0–15 minutes)
- Operating Temperature: −25°C to +80°C
- Approval: ECE (e1 03 3795)
- Compliance: RoHS, REACH
Fitment
Designed for 24V commercial vehicle, bus, construction equipment and agricultural machinery electrical systems. Suitable for controlling fan motors, auxiliary lighting, wiper delay circuits, and other time-dependent auxiliary equipment. Confirm fitment with your electrical schematic or contact sales@rentwithaim.ca.
Cross-References
- Hella 5HE 996 152-141
- Hella 996.152.141
- Volvo 14718413
- ZF 920006706
- MAN 81.25902-0573
- Schmitz Cargobull 1026114
- Liebherr 1 044 400 12
FAQ
What is the difference between delay-on and delay-off?
The 996152141 is a delay-off (switch-off delay) unit: after the input signal is removed, the relay holds the circuit closed for the programmed duration before opening. Delay-on relays do the opposite — they wait before closing.
Can I adjust the time delay after installation?
Yes. The relay has a built-in adjustment dial that sets the delay anywhere from 0 to 900 seconds without removing the relay from the socket.
Is this relay suitable for 12V systems?
No. The 996152141 is rated for 24V DC systems only. Hella offers separate 12V versions for passenger-car or light-duty applications.
Does AIM Rentals stock this item in BC?
Yes — the Hella 996152141 is stocked in Kelowna, BC and ships Canada-wide, typically same business day for orders placed before 2:00 pm Pacific Time.
Fitment data available on request. Email sales@rentwithaim.ca with your machine year/make/model.
