Hercules MCWI-100X115X7 Wiper Seal | 100×115×7 mm Hydraulic Cylinder

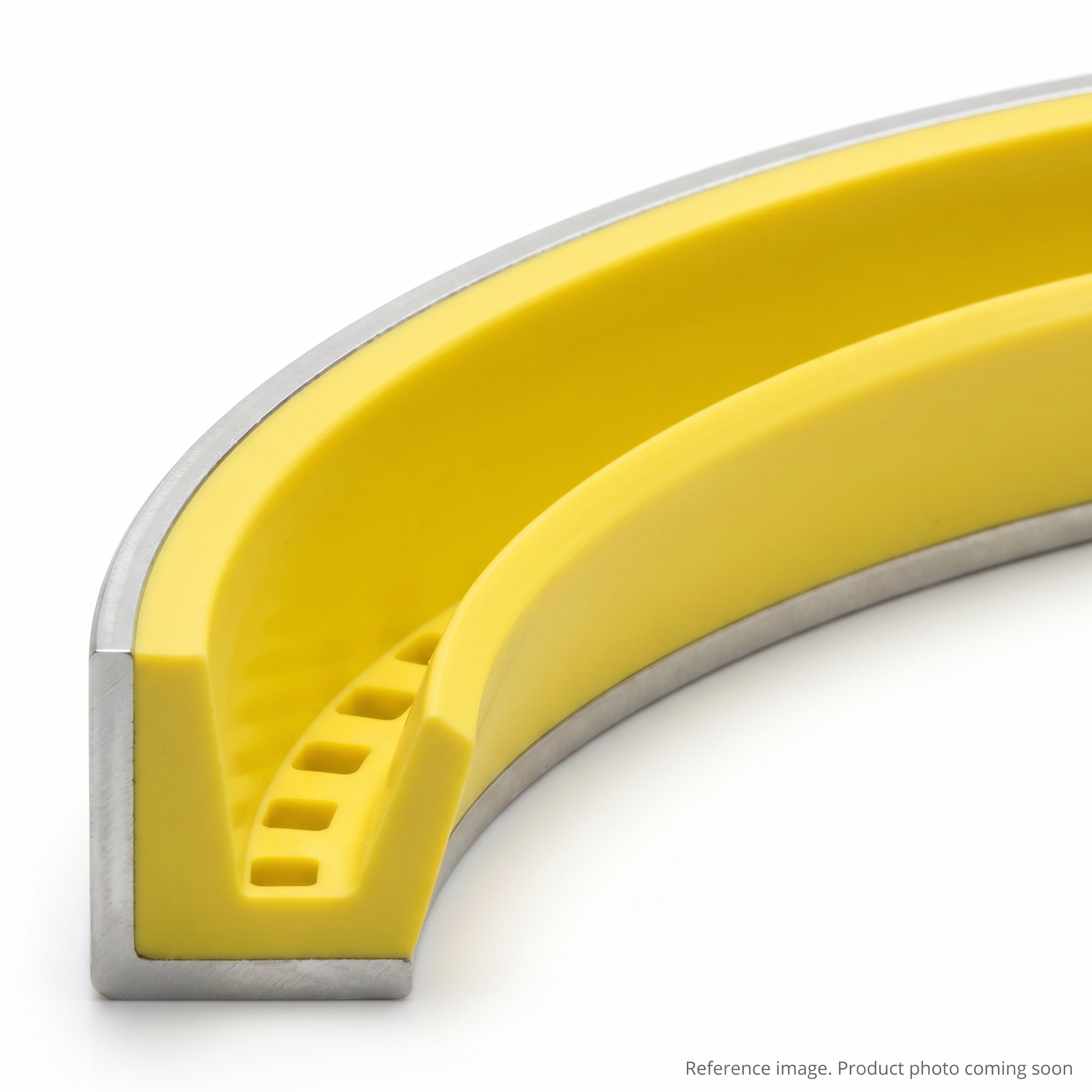

The Hercules Sealing Products MCWI-100X115X7 is a metric single-lip wiper seal (also called a dust seal or scraper) designed for hydraulic cylinder rod bores of 100 mm. The MCWI series uses high-grade polyurethane bonded to a carbon steel case, offering excellent resistance to contamination ingress and extended seal life. Stocked in Kelowna BC, ships Canada-wide.

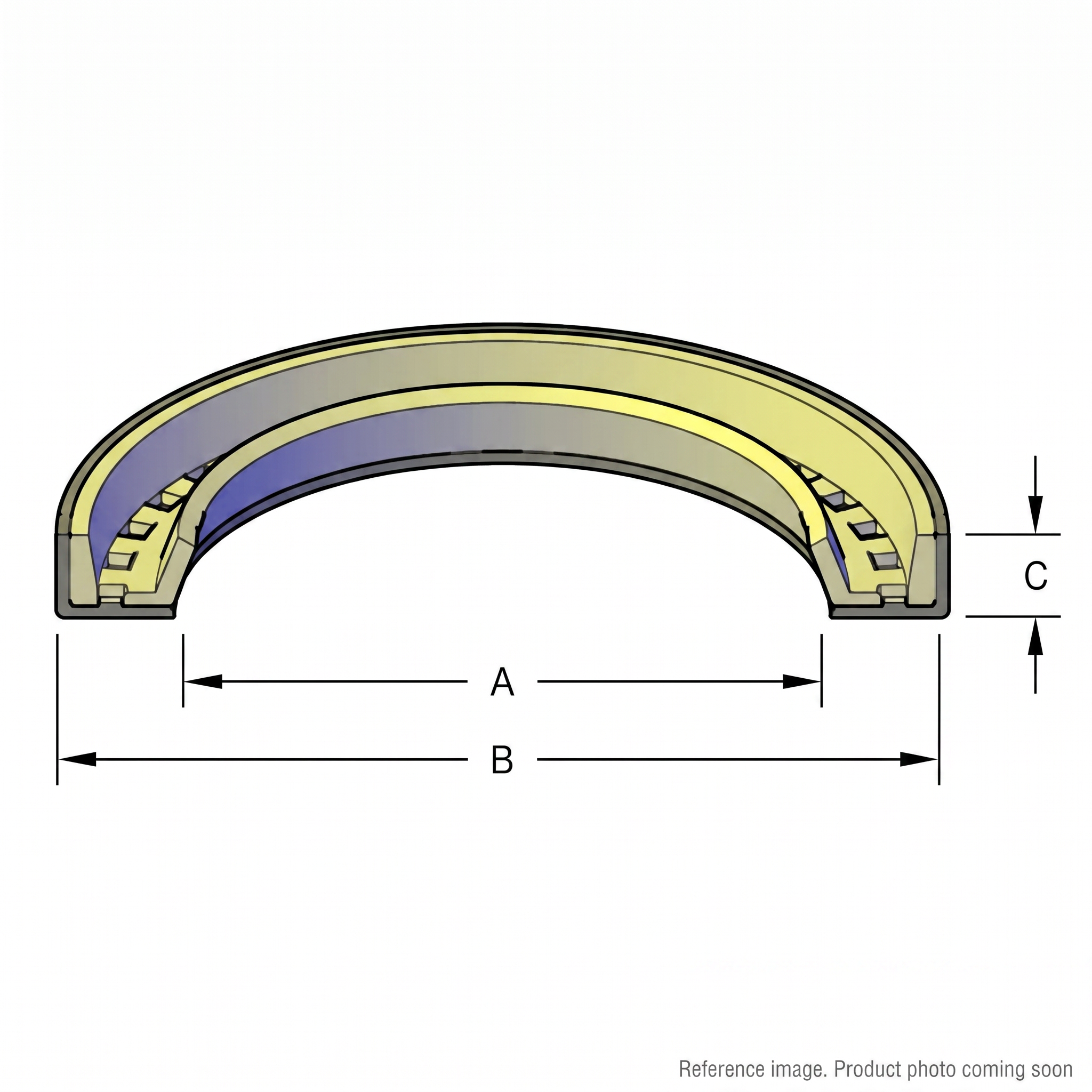

Specifications
- Part Number: MCWI-100X115X7
- Type: Single-Lip Wiper / Dust Seal
- Bore (ID): 100 mm
- Outer Diameter (OD): 115 mm
- Width (Height): 7 mm
- Material: Polyurethane (PU), carbon steel case
- Application: Hydraulic cylinder rod seal (external / wiper)
Fitment
- Hydraulic cylinders with 100 mm rod bore
- Heavy equipment hydraulic cylinders (excavators, loaders, cranes)
- Industrial hydraulic equipment
FAQ
What does a wiper seal do?
A wiper seal sits at the outermost rod gland position and wipes debris off the rod as it retracts, protecting internal seals from contamination.
What is the MCWI part number format?
MCWI-[bore]X[OD]X[width] in millimeters. The MCWI prefix from Hercules indicates a metric case wiper insert seal.
Do you ship Canada-wide?
Yes — we ship from Kelowna BC to all Canadian provinces and territories.
