Genuine HYDAC SBO210-2E1/112U-210AB Accumulator | XCMG GR2605
SKU 803190055
In stock: 1 available · Ships from Kelowna BC
Verify fitment by part number before ordering.
Match the listed SKU and verified cross-references to your current part number. If fitment is not listed, send AIM Rentals the machine details and current part number before ordering.
Genuine HYDAC SBO210-2E1/112U-210AB Accumulator | XCMG GR2605

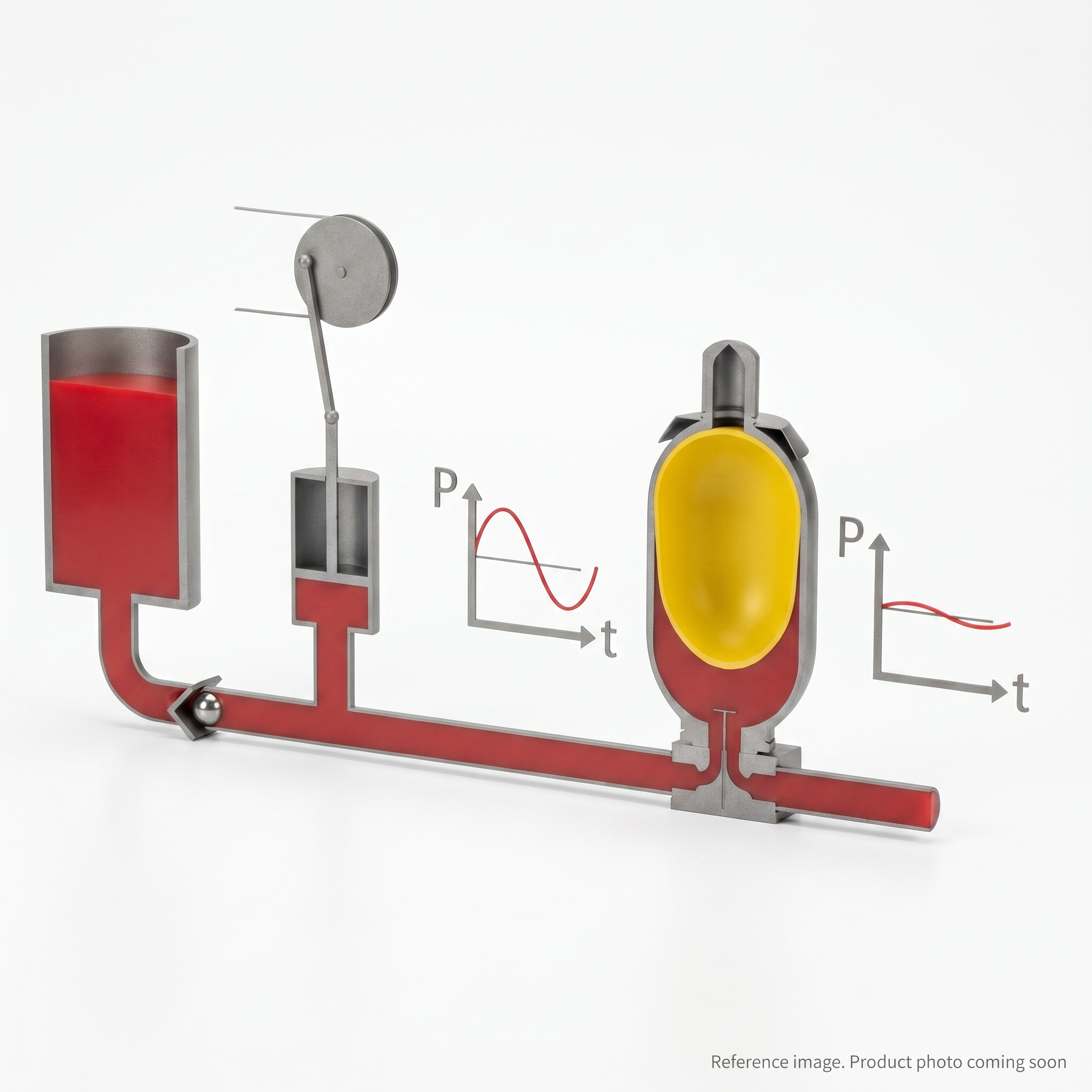

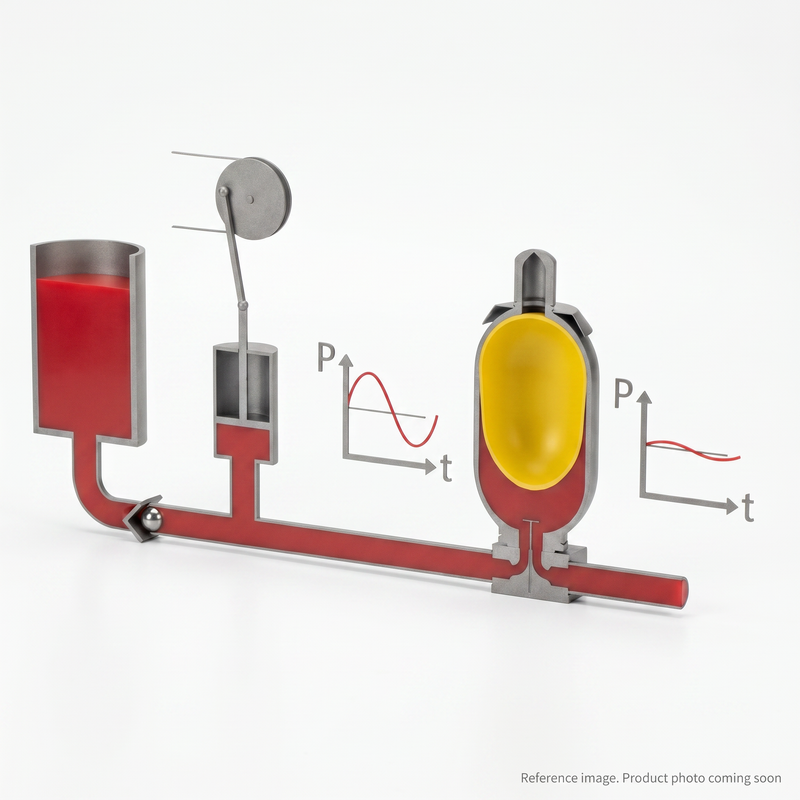

The HYDAC SBO210-2E1/112U-210AB (XCMG part 803190055, HYDAC art. 3041970) is a genuine HYDAC diaphragm accumulator for the XCMG GR2605 mining grader hydraulic system. It stores energy, dampens pressure pulses, and absorbs shock in the blade drive, steering, and braking circuits. Stocked in Kelowna, BC — ships Canada-wide.
Specifications
- XCMG Part Number: 803190055
- HYDAC Model Code: SBO210-2E1/112U-210AB
- HYDAC Material Number: 3041970
- Type: Diaphragm Accumulator (welded, non-repairable shell)
- Series: SBO 210
- Nominal Volume: 2 L
- MAWP: 210 bar (3,000 psi)
- Diaphragm Compound: NBR (Buna-N)
- Shell / Fluid Port: Carbon Steel
- Fluid Port Connection: G3/4 BSPP Female + M33×1.5 DIN Male
- Gas Valve: HYDAC Version 1 (M28×1.5), rechargeable with nitrogen
- Diameter: 167 mm | Height: 213 mm | Weight: 6.6 kg
- Max Flow: 150 L/min
- Operating Temp (mineral oil): -20°C to +70°C
Fitment
- XCMG GR2605 Mining Motor Grader (260 kW)
Cross-References
- HYDAC Art. No.: 3041970
- XCMG Assembly Ref: 803190055
FAQ
Is this a genuine HYDAC accumulator?
Yes. HYDAC SBO210-2E1/112U-210AB (art. 3041970) is an active genuine HYDAC product confirmed in their official catalog and available directly from HYDAC.
Can the diaphragm be replaced?
No. This is the welded non-repairable variant. The nitrogen pre-charge is rechargeable via the HYDAC gas valve port (M28×1.5).
What pre-charge pressure is required?
Pre-charge nitrogen pressure must be set per the XCMG GR2605 hydraulic system specification. Consult XCMG or a certified hydraulic technician for the correct p0 value for your circuit.
Where does this ship from?
Stocked at AIM Rentals in Kelowna, BC. Ships Canada-wide. Contact sales@rentwithaim.ca for freight options on this item.
