OEM-spec 24242-16-16 ORFS Hose Fitting

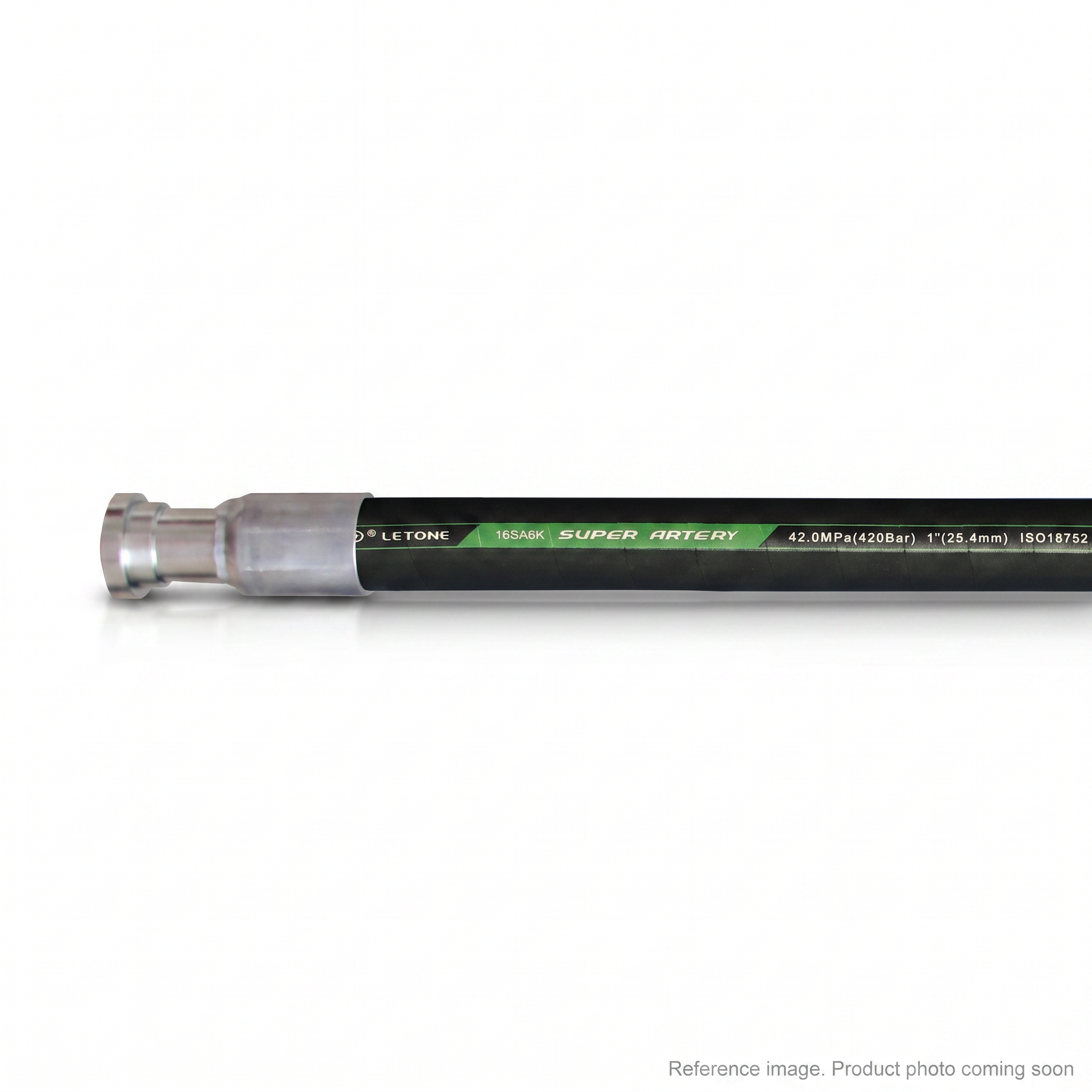

OEM-spec replacement for the 24242-16-16 two-piece ORFS (O-Ring Face Seal) male straight hose fitting. This fitting is compatible with the Letone/Winner 24242 series and equivalent designs per SAE J516 / ISO 12151-1. Thread size 1-7/16"-12 UN, suitable for -16 hose ID. Stocked in Kelowna, BC — ships Canada-wide.
Specifications
- Part Number: 24242-16-16
- Series: 24242 (ORFS Male Straight, 2-piece)
- Thread: 1-7/16"-12 UN (SAE ORFS -16)
- Hose ID: -16 (1 in / 25 mm)
- Standard: SAE J516 / ISO 12151-1
- Material: Carbon steel, zinc-plated
- Type: 2-piece crimped hose fitting
Fitment
This ORFS fitting suits -16 hydraulic hose assemblies on heavy construction, forestry, and industrial equipment wherever a 1-7/16"-12 ORFS straight male end connection is required. Confirm hose ID and thread specification before ordering.
Cross-References
- 24242-16-16 (Letone catalog)
- 24241-16-16 (mating socket/nut)
FAQ
What does ORFS mean?
ORFS stands for O-Ring Face Seal — a leak-free fitting system where an O-ring seats against a flat machined face, providing reliable sealing under high-pressure and vibration conditions common in heavy equipment hydraulics.
Is this a genuine Letone part?
This is an OEM-spec replacement fitting produced to the same SAE J516 / ISO 12151-1 dimensional standard. We cannot confirm it as a genuine Letone-branded part; it is sold as an equivalent replacement.
What hose is compatible?
The 24242-16-16 fits -16 ID hydraulic hose (SAE 100R2, R9, R12, 4SP, 4SH or equivalent). Always verify your hose series and dash size before ordering.
Where is this stocked?
In stock in Kelowna, BC. Orders ship same business day (before 2 PM Pacific). Shipping included Canada-wide on most orders.
Fitment data available on request. Email sales@rentwithaim.ca with your machine year/make/model.
