NTN 4T-32209 Tapered Roller Bearing | 45 x 85 x 24.75 mm
SKU 4T-32209
In stock: 1 available · Ships from Kelowna BC
Verify fitment by part number before ordering.
Match the listed SKU and verified cross-references to your current part number. If fitment is not listed, send AIM Rentals the machine details and current part number before ordering.
NTN 4T-32209 Tapered Roller Bearing

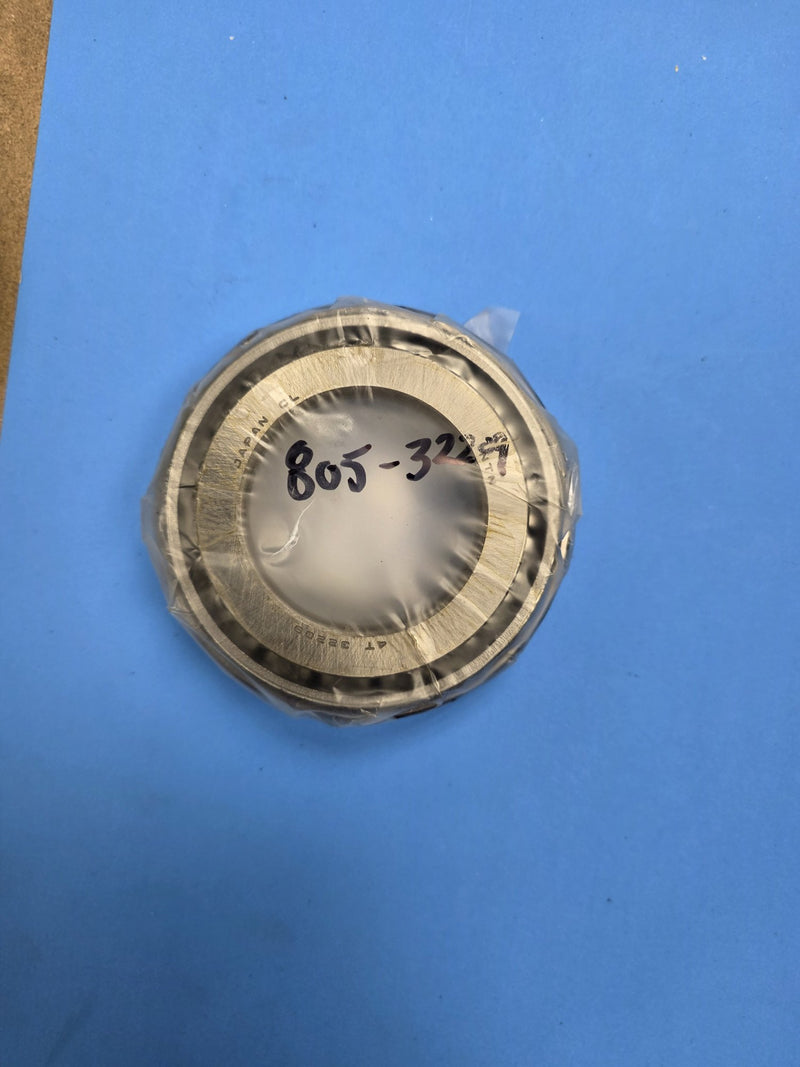

No paper label on this one, because it does not need one. The bearing is still in its original factory heat shrink wrap and the cone is stamped 4T 32209, NTN and JAPAN CL. That stamp is the identity, and it is the reason this is one of only two parts in the batch we could price from a real published source. Someone on the shelf also wrote 805-32209 on the wrap in marker, which we carry as a cross reference tag only.
4T is NTN's designation for its case hardened, four top tapered roller bearing steel. The 32209 size is a single row metric tapered roller bearing, cone and cup supplied together, with a 45 mm bore, an 85 mm outside diameter and a 24.75 mm assembled width. Published NTN data gives it a dynamic radial rating in the tens of kilonewtons, which is why you find this size on gearbox shafts, pinion supports, rotator and swing assemblies and wheel hubs.
A tapered roller bearing carries radial and one direction axial load at the same time, and it is almost always fitted as an opposed pair so the two share the thrust and set each other's preload. If you are replacing one, replace the pair and reset the preload to spec, and always replace the cone and the cup together since they are lapped as a matched set.
This is genuine NTN in unopened factory wrap, not a repackaged clone.
What is on the part
- Stamped 4T 32209
- Stamped NTN
- Stamped JAPAN CL, made in Japan
- Hand written on the factory wrap: 805-32209, carried as a cross reference only
Specification
- Bore 45 mm
- Outside diameter 85 mm
- Assembled width 24.75 mm
- Type: single row tapered roller bearing, cone and cup
Fitment
- Make: NTN
- Application: any 45 x 85 x 24.75 mm tapered roller bearing position. No machine model is marked on the part, so match it by size or by the number stamped on the bearing you are pulling out
- Interchange: 32209 in the standard metric tapered series
Stocked one unit in Prince George, BC. Ships free Canada wide, no brokerage surprise. Price is all in.
Fitment data available on request. Email sales@rentwithaim.ca with your machine year/make/model.
