Genuine Parker GE22LR1EDOMDCF Hydraulic Fitting | XCMG XE2000 Excavator

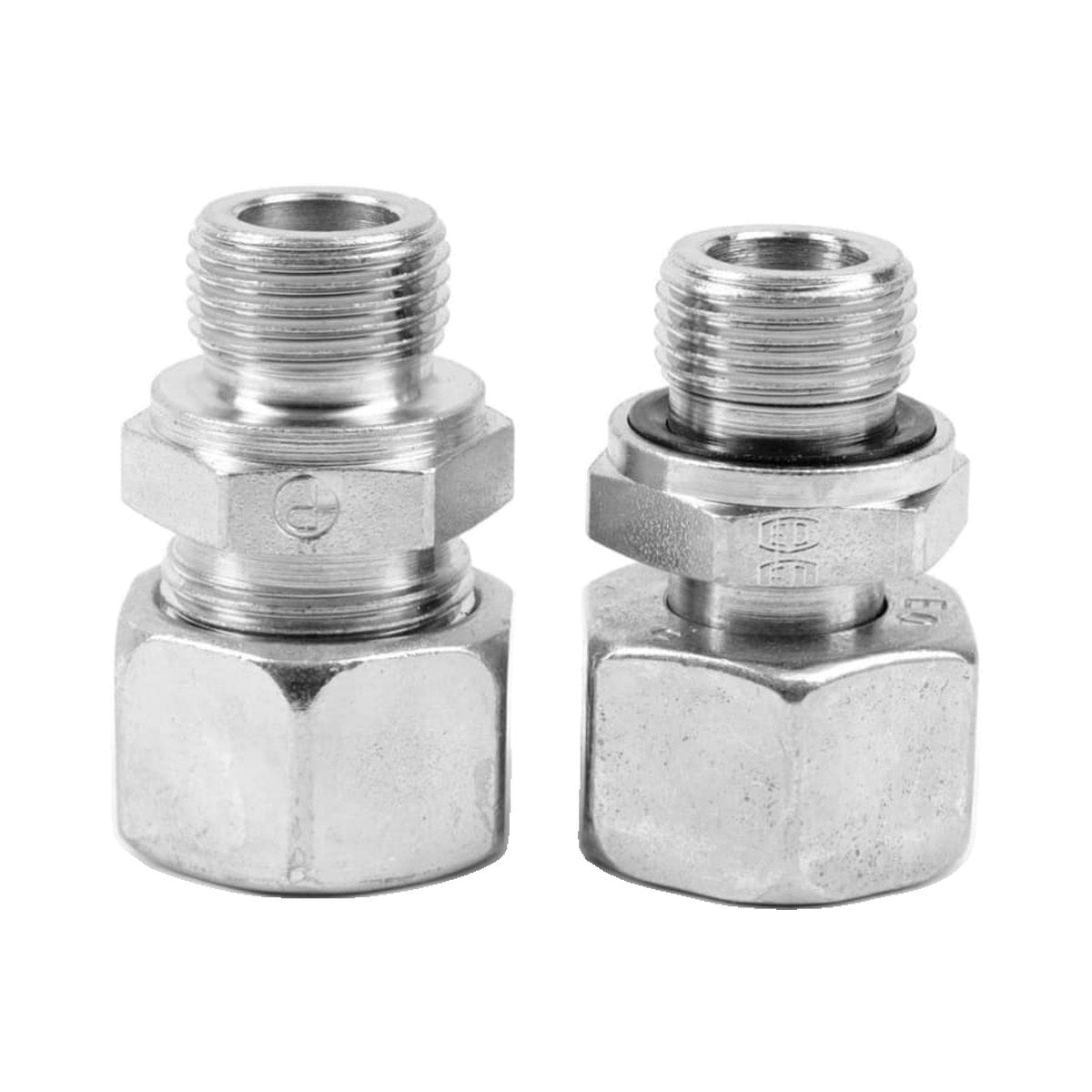

The Parker GE22LR1EDOMDCF is a genuine Parker Ermeto (EO) series light-duty straight male stud connector (DIN ISO 8434) used in the XCMG XE2000 heavy excavator hydraulic system (XCMG cross-reference: 803103525). This fitting connects 22mm OD hydraulic tube to a G 1" male thread port, providing a reliable high-pressure connection. Stocked at AIM Rentals in Kelowna, BC — ships Canada-wide.
Specifications
- Parker Part Number: GE22LR1EDOMDCF
- XCMG Cross-Reference: 803103525
- Type: Straight male stud connector (light series)
- Tube OD: 22 mm
- Thread: G 1" A male (BSPP)
- Material: Steel, chromium-6 free
- Standard: DIN ISO 8434 (EO fitting)
- Series: L (light), up to 500 bar
Fitment
- XCMG XE2000 Excavator hydraulic system
Cross-References
- Parker GE22LR1EDOMDCF
- XCMG internal part: 803103525
FAQ
What does GE22LR1EDOMDCF stand for?
GE = straight male stud connector; 22L = 22mm tube, light series; R1 = G 1" male thread; EDOMDCF = Ermeto DIN cone, O-ring face seal, DCF finish.
Is this a genuine Parker fitting?
Yes. The Parker GE22LR1EDOMDCF is confirmed in Parker's Ermeto DIN hydraulic fittings catalog and available from Parker distributors worldwide.
What is the maximum pressure rating?
The L (light) series Parker EO fittings are rated up to 500 bar (50 MPa) depending on tube OD and material.
Where is this stocked?
Stocked at AIM Rentals in Kelowna, BC. Ships Canada-wide.
| Make | Model | Year | Engine / Spec |
|---|---|---|---|
| ["XCMG XE2000 excavator","XCMG GR2605 motor grader"] | |||
