Parker PCM1600S Pressure Compensated Flow Control Valve | 1" NPT 50 GPM
SKU PCM1600S
In stock: 1 available · Ships from Kelowna BC
Verify fitment by part number before ordering.
Match the listed SKU and verified cross-references to your current part number. If fitment is not listed, send AIM Rentals the machine details and current part number before ordering.

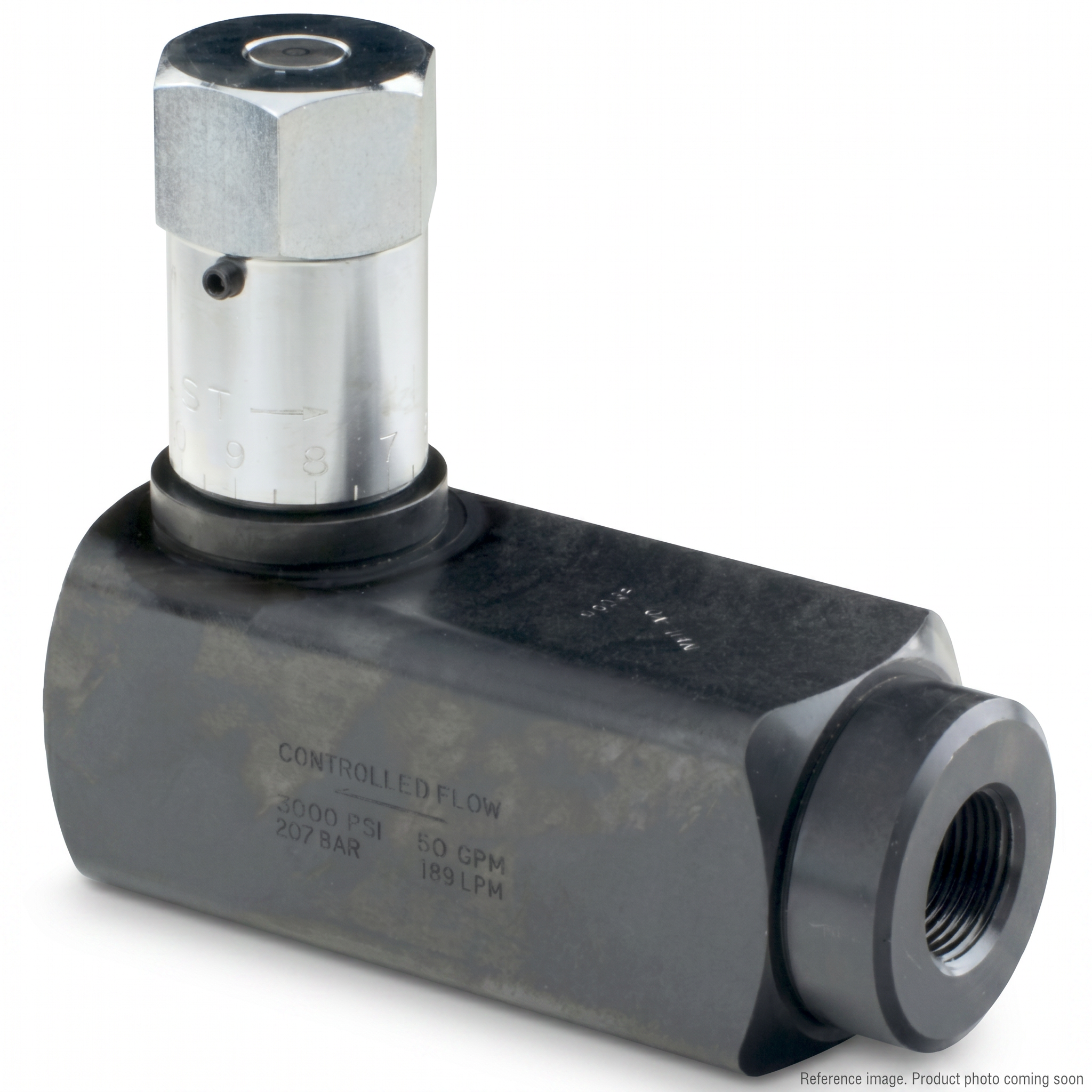

Parker PCM1600S Pressure Compensated Flow Control Valve
The Parker PCM1600S is a Colorflow In-Line Pressure Compensated Flow Control Valve from Parker Hannifin's PC*M Series. It maintains selected flow rate within ±5% regardless of inlet/outlet pressure fluctuations — ideal for demanding hydraulic circuits in heavy equipment, industrial machinery, and mobile applications. Genuine Parker part, stocked in Kelowna, BC and ships Canada-wide.
Specifications
- Part Number: PCM1600S
- Series: Parker Colorflow PC*M Series
- Type: In-Line Pressure Compensated Flow Control Valve
- Port Size: 1" NPTF
- Max Operating Pressure: 207 bar (3,000 PSI)
- Max Flow Rate: 303 LPM (80 GPM)
- Min Flow Rate: 30 LPM (8 GPM)
- Seal Material: Nitrile (standard); Fluorocarbon optional
- Temperature Range (Nitrile): -40°C to +121°C (-40°F to +250°F)
- Adjustment: Rotary knob, adjustable after installation
- Body Material: Steel
- Control: Pressure-compensated, one-way flow control with reverse flow check
Fitment
The Parker PCM1600S is suitable for meter-in, meter-out, and bleed-off hydraulic circuits used in heavy equipment, construction machinery, road-building equipment, and industrial hydraulic systems. Confirm exact fitment with your equipment dealer or email sales@rentwithaim.ca.
Cross-References
- Parker PC*M1600S (series designation)
FAQ
What does the PCM1600S do?
It regulates hydraulic flow at a selected rate within 5%, regardless of fluctuations in inlet or outlet pressure, ensuring consistent actuator speed in variable-load applications.
What is the maximum pressure rating for the PCM1600S?
The PCM1600S is rated for a maximum operating pressure of 207 bar (3,000 PSI).
What port size does the PCM1600S use?
The PCM1600S uses a 1" NPTF port connection.
Is this a genuine Parker part?
Yes. The PCM1600S is a genuine Parker Hannifin Colorflow PC*M Series valve, stocked at AIM Rentals in Kelowna, BC, and available for Canada-wide shipping.
Fitment data available on request. Email sales@rentwithaim.ca with your machine year/make/model.
