Parker PCM800S Pressure Compensated Flow Control Valve | 1/2" NPT 15 GPM
SKU PCM800S
In stock: 1 available · Ships from Kelowna BC
Verify fitment by part number before ordering.
Match the listed SKU and verified cross-references to your current part number. If fitment is not listed, send AIM Rentals the machine details and current part number before ordering.

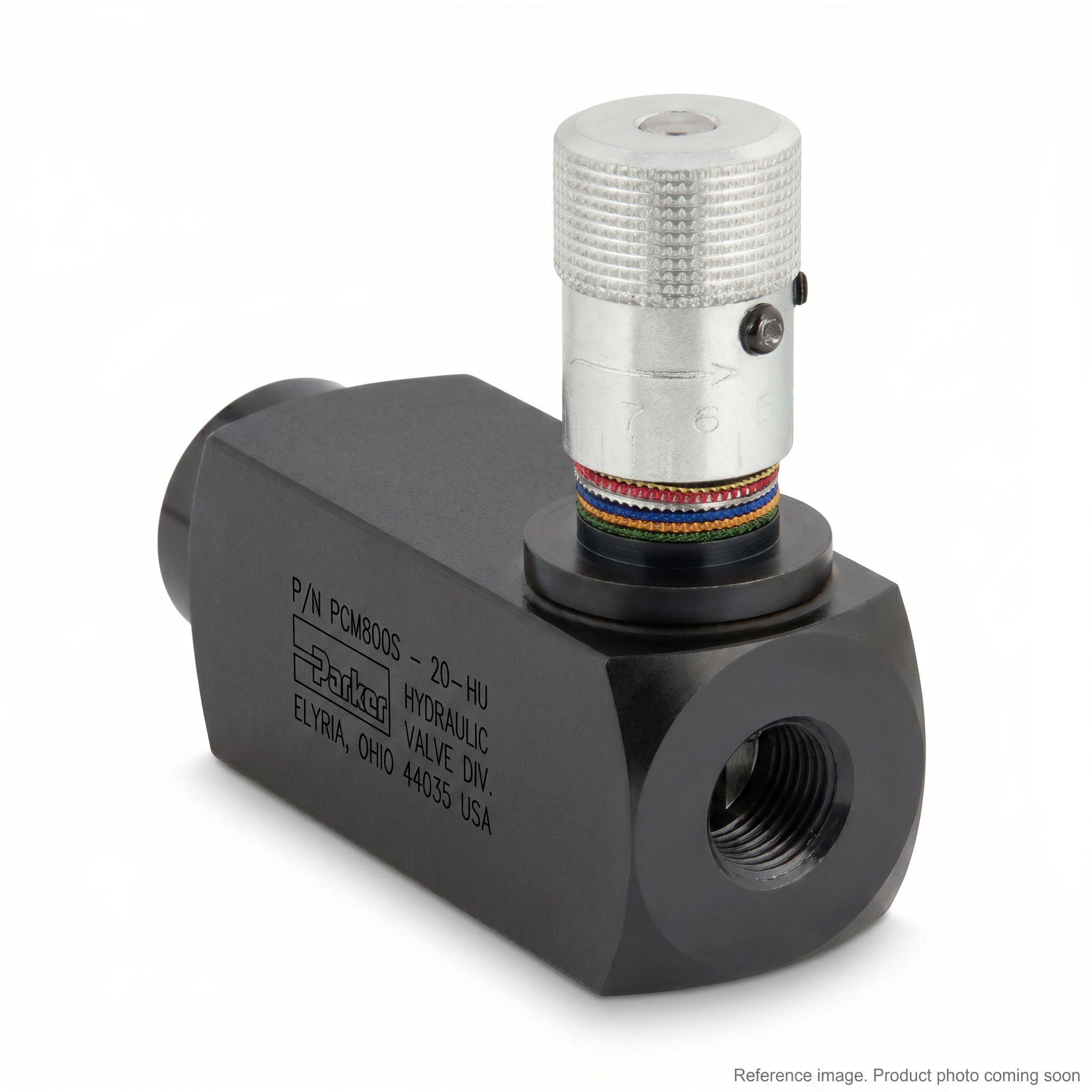

Parker PCM800S Pressure Compensated Flow Control Valve
The Parker PCM800S is a Colorflow In-Line Pressure Compensated Flow Control Valve from Parker Hannifin's PC*M Series. It regulates hydraulic flow at a selected rate within ±5%, regardless of inlet/outlet pressure fluctuations, making it ideal for meter-in, meter-out, and bleed-off hydraulic circuits. Genuine Parker part, stocked in Kelowna, BC and ships Canada-wide.
Specifications
- Part Number: PCM800S
- Series: Parker Colorflow PC*M Series
- Type: In-Line Pressure Compensated Flow Control Valve
- Port Size: 1/2" NPT
- Max Operating Pressure: 207 bar (3,000 PSI)
- Max Flow Rate: 57 LPM (15 GPM)
- Min Flow Rate: 6 LPM (1.5 GPM)
- Seal Material: Nitrile (standard)
- Temperature Range (Nitrile): -40°C to +121°C (-40°F to +250°F)
- Adjustment: Rotary knob, in-service adjustable
- Body Material: Steel
- Mounting: Inline
- Overall Length: 4.94"
- Weight: 1.665 kg
Fitment
The Parker PCM800S is widely used in general hydraulic systems, industrial machinery hydraulic circuits, material handling equipment, and power generation equipment. Confirm exact fitment with your equipment supplier or email sales@rentwithaim.ca.
Cross-References
- Parker PC*M800S (series designation)
FAQ
What is the Parker PCM800S?
It is a Colorflow in-line pressure compensated flow control valve that maintains consistent flow rate regardless of pressure changes, ensuring smooth and predictable actuator movement in hydraulic systems.
What is the max flow rate of the PCM800S?
The PCM800S supports up to 57 LPM (15 GPM) maximum flow rate at a 1/2" NPT connection.
Is the PCM800S adjustable?
Yes. The rotary knob allows flow adjustment both before and after installation in the hydraulic line.
Where is this part stocked?
The Parker PCM800S is stocked at AIM Rentals in Kelowna, BC, with Canada-wide shipping available.
| Make | Model | Year | Engine / Spec |
|---|---|---|---|
| ["General hydraulic systems","Industrial machinery hydraulic circuits","Material handling equipment","Mining equipment","Power generation equipment"] | |||
