Phillips 15-730 7-Way Plug with Cable Guard | SAE J560 Truck Trailer
SKU 15-730
In stock: 2 available · Ships from Kelowna BC
Verify fitment by part number before ordering.
Match the listed SKU and verified cross-references to your current part number. If fitment is not listed, send AIM Rentals the machine details and current part number before ordering.

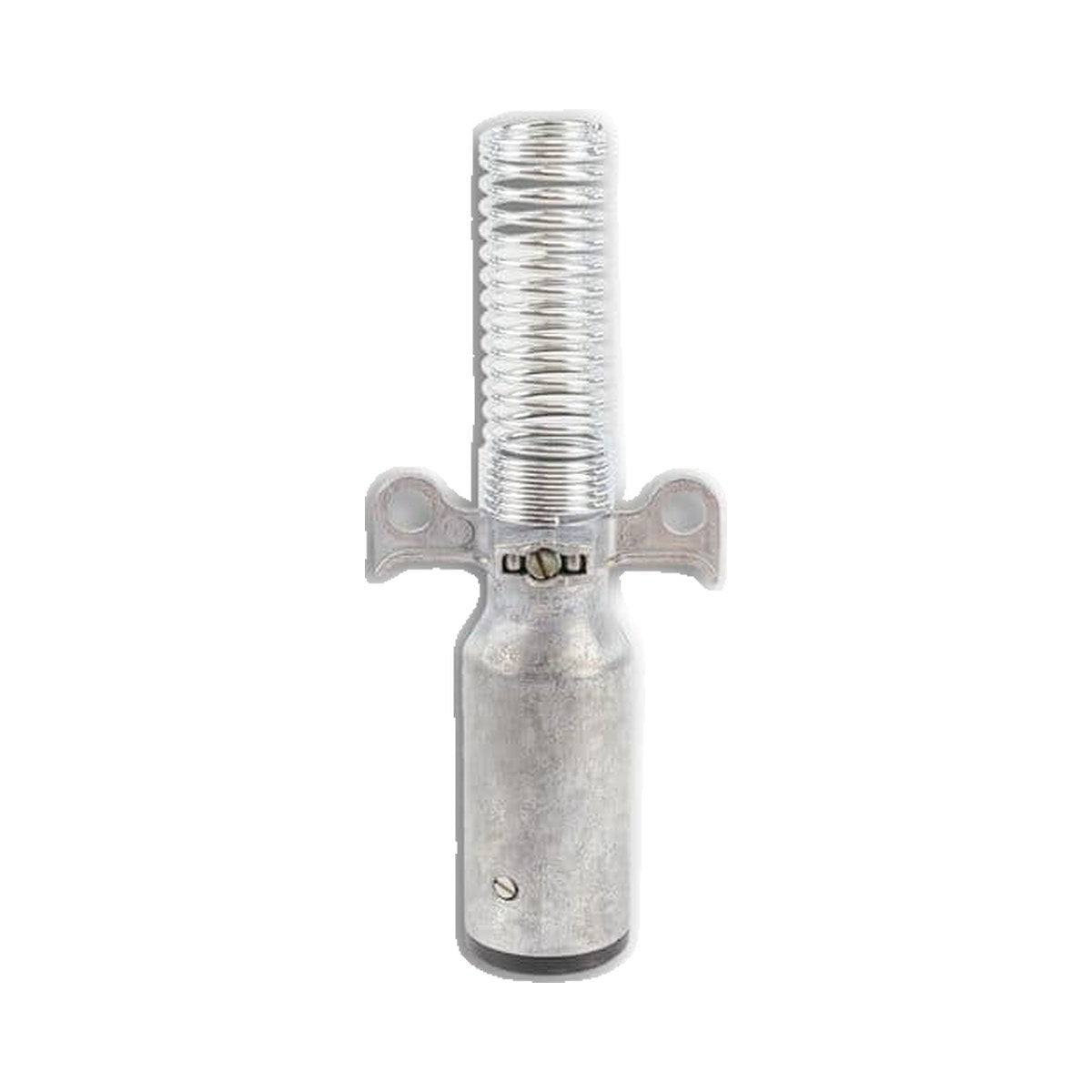

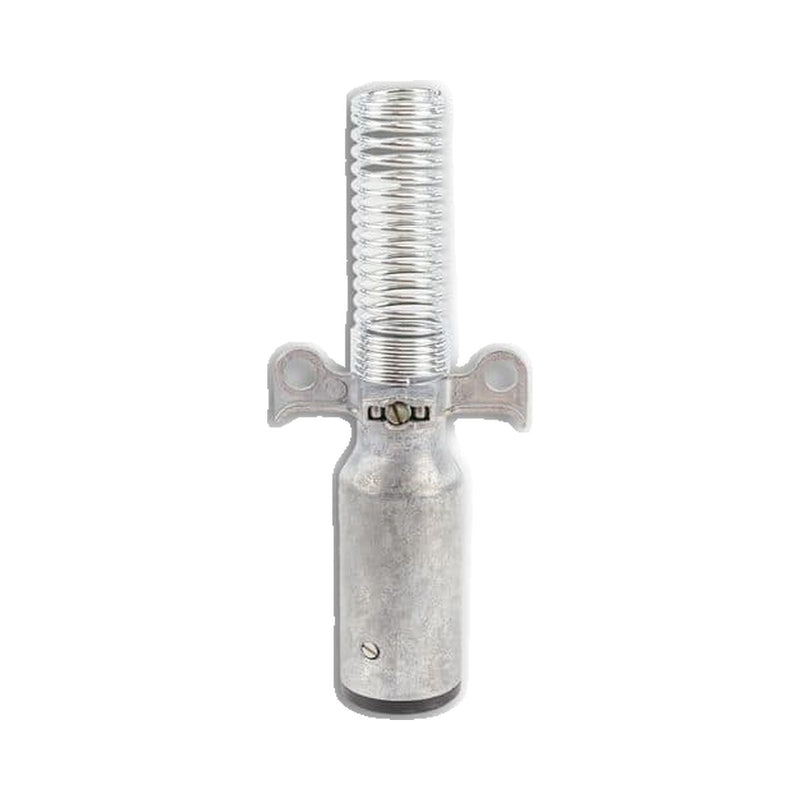

Phillips 15-730 7-Way Electrical Plug with Cable Guard
The Phillips Industries 15-730 is a heavy-duty 7-way round-pin SAE J560 plug with cable guard, featuring a reinforced zinc die-cast housing and spring-wrapped brass compression pins. Designed for tractor-trailer and heavy-duty truck electrical harnesses, this connector provides superior corrosion resistance and cable strain relief. Stocked in Kelowna, BC — ships Canada-wide.
Specifications
- Part Number: 15-730
- Brand: Phillips Industries
- Type: 7-Way Round-Pin SAE J560 Plug
- Housing Material: Reinforced zinc die-cast
- Pins: Spring-wrapped, machined brass compression pins
- Standard: SAE J560
- Features: Thread-sealed screws, cable guard for heavy cable support
- Replacement insert: 15-711; Replacement cable guard: 15-1731
Fitment
- Heavy-duty tractor-trailer electrical harnesses
- Semi-trailer 7-way round-pin trailer connectors
- Commercial truck and trailer applications meeting SAE J560
Cross-References
- Phillips Industries: 15-730, 15-730B (bagged variant), 15-730DSP
- Interchanges: 11702, 82-1019, BE23784, P23784, PHI15-730, PM15-730
FAQ
What is the difference between 15-730 and 15-710?
The 15-730 includes a cable guard for additional strain relief on heavy cables, while the 15-710 is the standard heavy-duty zinc die-cast plug without a cable guard.
Is this a genuine Phillips Industries part?
Yes — 15-730 is a genuine Phillips Industries catalog part number, manufactured to SAE J560 specifications.
What socket does the 15-730 plug into?
It is designed for 7-way SAE J560 round-pin sockets. Use with a Phillips 15-720 socket or compatible equivalent. The Phillips 15-740 boot reduces moisture exposure on the socket side.
Does this ship from Canada?
Yes — stocked in Kelowna, BC and ships Canada-wide, typically same business day for orders placed before 2 PM Pacific.
| Make | Model | Year | Engine / Spec |
|---|---|---|---|
| ["Heavy-duty truck trailers","Semi-trailers","Tractor-trailer electrical harnesses"] | |||
