Genuine Schneider Electric ZB2BE101C Contact Block | XCMG Equipment
SKU 803164896
In stock: 1 available · Ships from Kelowna BC
Verify fitment by part number before ordering.
Match the listed SKU and verified cross-references to your current part number. If fitment is not listed, send AIM Rentals the machine details and current part number before ordering.
Genuine Schneider Electric ZB2BE101C Contact Block | XCMG Equipment Control Panels

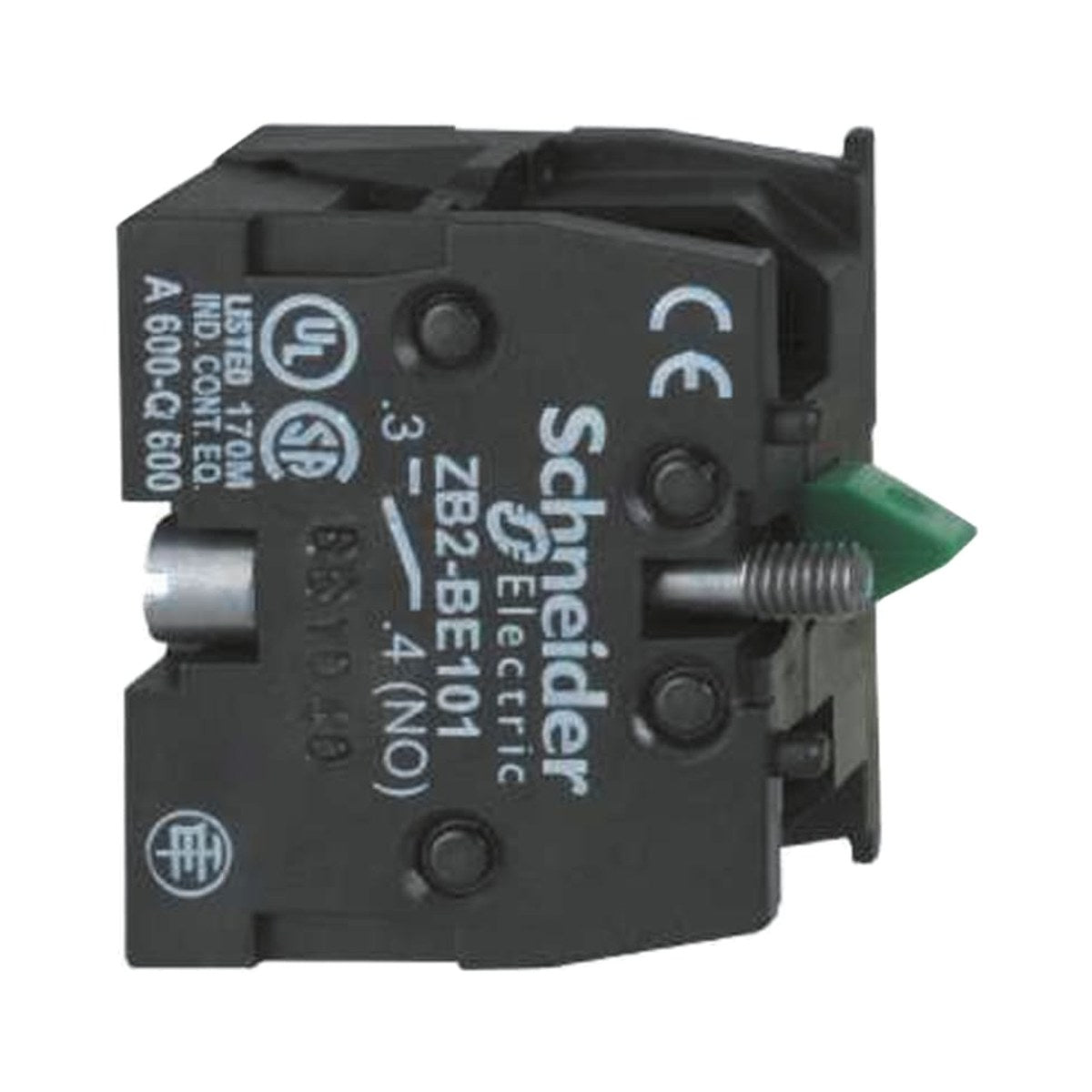

The Schneider Electric ZB2BE101C is a genuine Harmony XB2 series single contact block (1 NO, spring return, screw clamp terminal) used in XCMG equipment instrument switch group assemblies and machine control panels (XCMG cross-reference: 803164896). This contact block is designed for 22mm panel cutout and is compatible with XB4, XB5, and XACA series Schneider pushbutton and selector switch heads. Stocked at AIM Rentals in Kelowna, BC — ships Canada-wide.
Specifications
- Schneider Part Number: ZB2BE101C
- XCMG Cross-Reference: 803164896
- Type: Single contact block, 1 NO (normally open), spring return
- Mounting: 22mm panel cutout, front mount
- Current Rating: 10 A (600 VAC)
- Terminal: Screw clamp
- Operating Temperature: −25 °C to +70 °C
- Mechanical Durability: 1,000,000 cycles
- Standards: IEC 60947-5-1, UL, CSA
Fitment
- XCMG equipment control panels using instrument switch group part 803164896
- Compatible with Schneider XB4, XB5, XACA, XAPS2 series switch heads
Cross-References
- Schneider ZB2BE101C
- XCMG 803164896
FAQ
What Schneider pushbutton heads is this contact block compatible with?
The ZB2BE101C fits the back of XB4, XB5, XACA, and XAPS2 series 22mm pushbutton and selector switch heads.
Is this a genuine Schneider Electric part?
Yes. The ZB2BE101C is confirmed in the Schneider Electric Harmony XB2 product catalog and available globally.
What is the contact configuration?
1 NO (normally open), spring return — the contact closes only when the operator actuates the button/selector.
Where is this stocked?
Stocked at AIM Rentals, Kelowna, BC. Ships Canada-wide.
