Waratah WA103499 PVLP63 Shock Valve 320 Bar | Danfoss 157B2320 PVG 32

Waratah WA103499 PVLP63 Shock Valve, 320 Bar

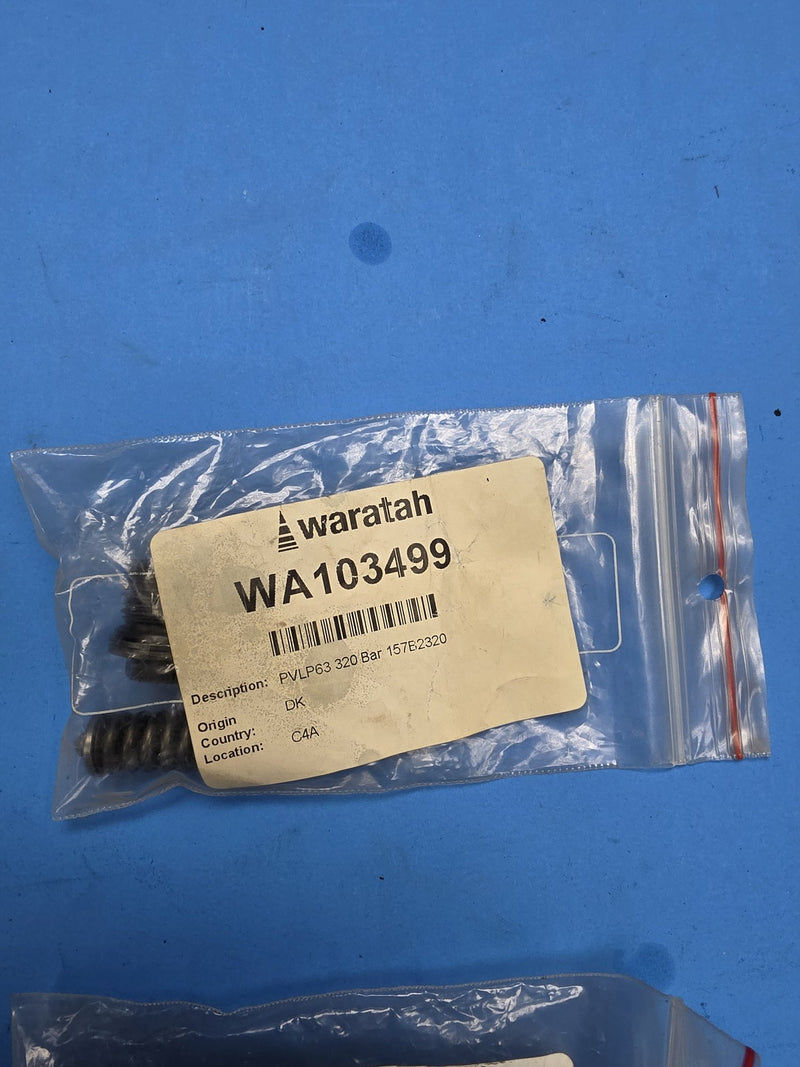

Genuine Waratah poly bag with the Waratah pyramid label and barcode. Part number WA103499. The label itself prints the description PVLP63 320 Bar 157B2320 and an origin of DK, Denmark. Visible through the bag are the valve cartridge body and its heavy coil spring.

Waratah has printed the Danfoss number on its own label, so the cross reference is a label fact rather than a guess. 157B2320 is the Danfoss PVLP shock and anti cavitation valve for the PVG 32 proportional valve, set at 320 bar, in the 63 size port cavity. It screws into the A or B work port of a PVG 32 section.

What it does

• Caps a work port at 320 bar so shock loads on the head do not spike the section
• Anti cavitation function lets oil back into the port when a load runs away from the pump
• Protects saw motor, feed motor and knife circuits from pressure spikes

Fitment

• Make: Waratah
• Application: Danfoss PVG 32 valve sections on Waratah harvester heads. Confirm your head model and serial number before ordering, since relief settings vary by circuit
• Waratah part number: WA103499
• Danfoss cross reference printed on the label: 157B2320
• Pressure setting: 320 bar
• Origin: Denmark

Stocked one unit in Prince George, BC. Ships free Canada wide, no brokerage surprise. Price is all in.
