Waratah F696138 Hall Effect Diameter Potentiometer

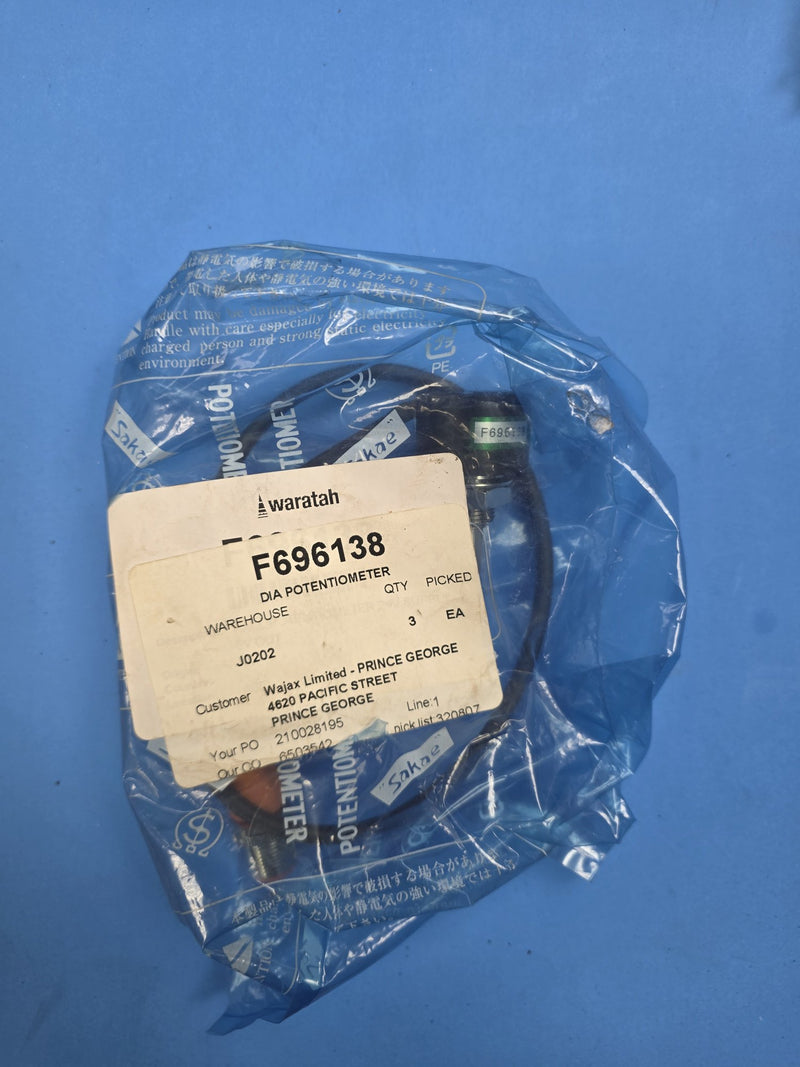

Waratah pick ticket F696138 DIA POTENTIOMETER, warehouse J0202, quantity 3 EA, originally picked for Wajax Limited Prince George on your PO 210028195. Inside the outer bag the actual sensor is still in its Sakae factory anti static wrap, printed SAKAE POTENTIOMETER in a repeating band with the Japanese and English caution not to handle it near static electricity. Sakae Tsushin Kogyo is the Japanese potentiometer manufacturer that supplies the rotary Hall element used by Waratah and John Deere as the diameter measuring input on 600 series harvester heads.

Mechanically the assembly is a compact rotary body with a keyed shaft and a two conductor cable exiting the housing. Electrically it reports stem diameter to the TimberRite or TimberMatic head controller as the measuring arm rides on the trunk during feed. It replaces earlier resistive potentiometers on the same arm, which is why field failures often present as noisy or drifting diameter readings and get fixed by swapping in this Hall unit.

• Function: rotary Hall effect angle sensor, non contact
• Application: diameter measuring arm on Waratah 600 series harvester heads
• Sensor manufacturer: Sakae Tsushin Kogyo, Japan
• Waratah / Deere part: F696138
• Confirm your head model, TimberRite controller version and cable style before ordering

Price shown is all in. Free shipping anywhere in Canada, handling and card processing already included, and no brokerage surprise at the door. Stocked in Prince George, BC. Send us your machine model and serial number and we will confirm fitment before the part leaves the shelf.
