Genuine XCMG 381100843 Wiring Harness | GR2405V Cab A/C

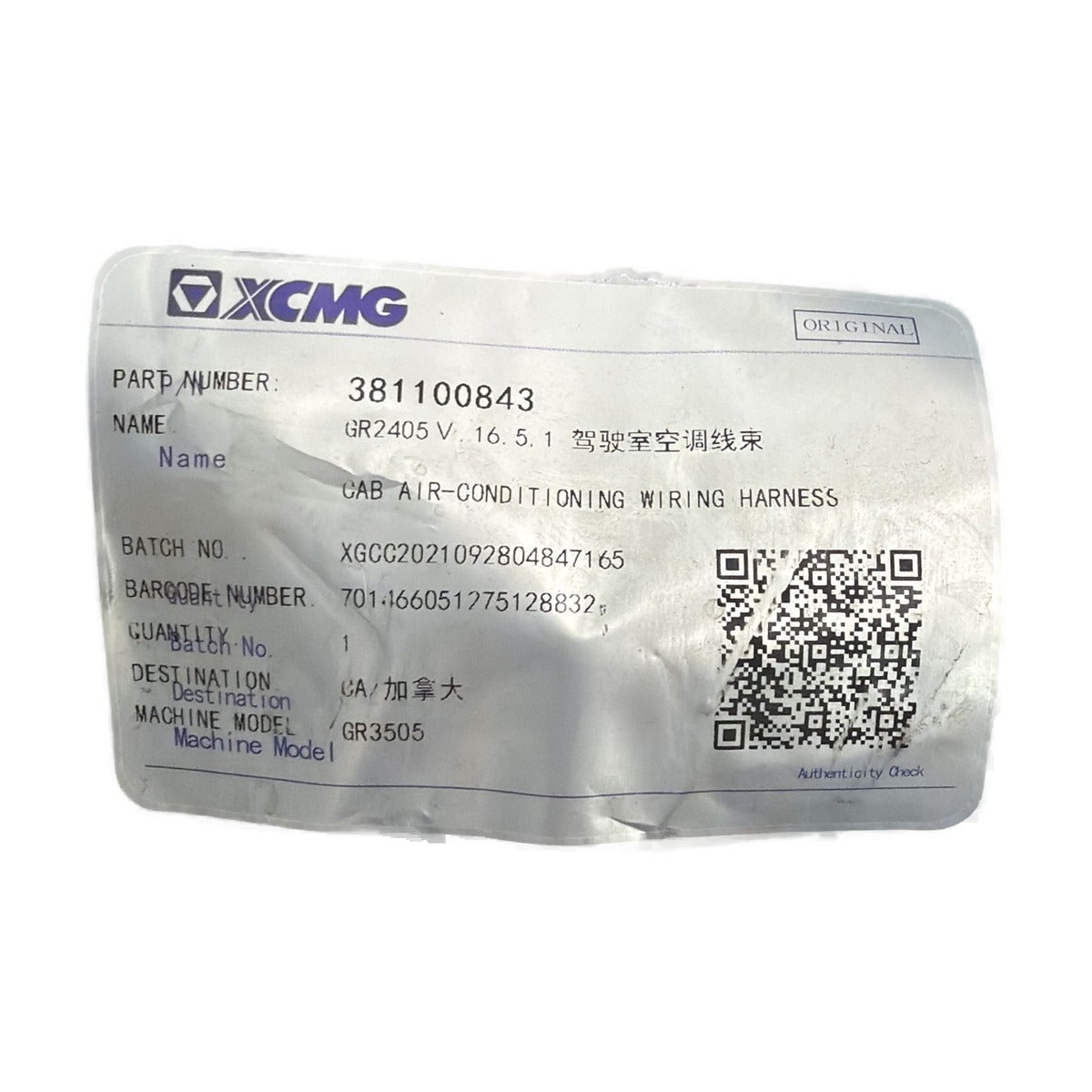

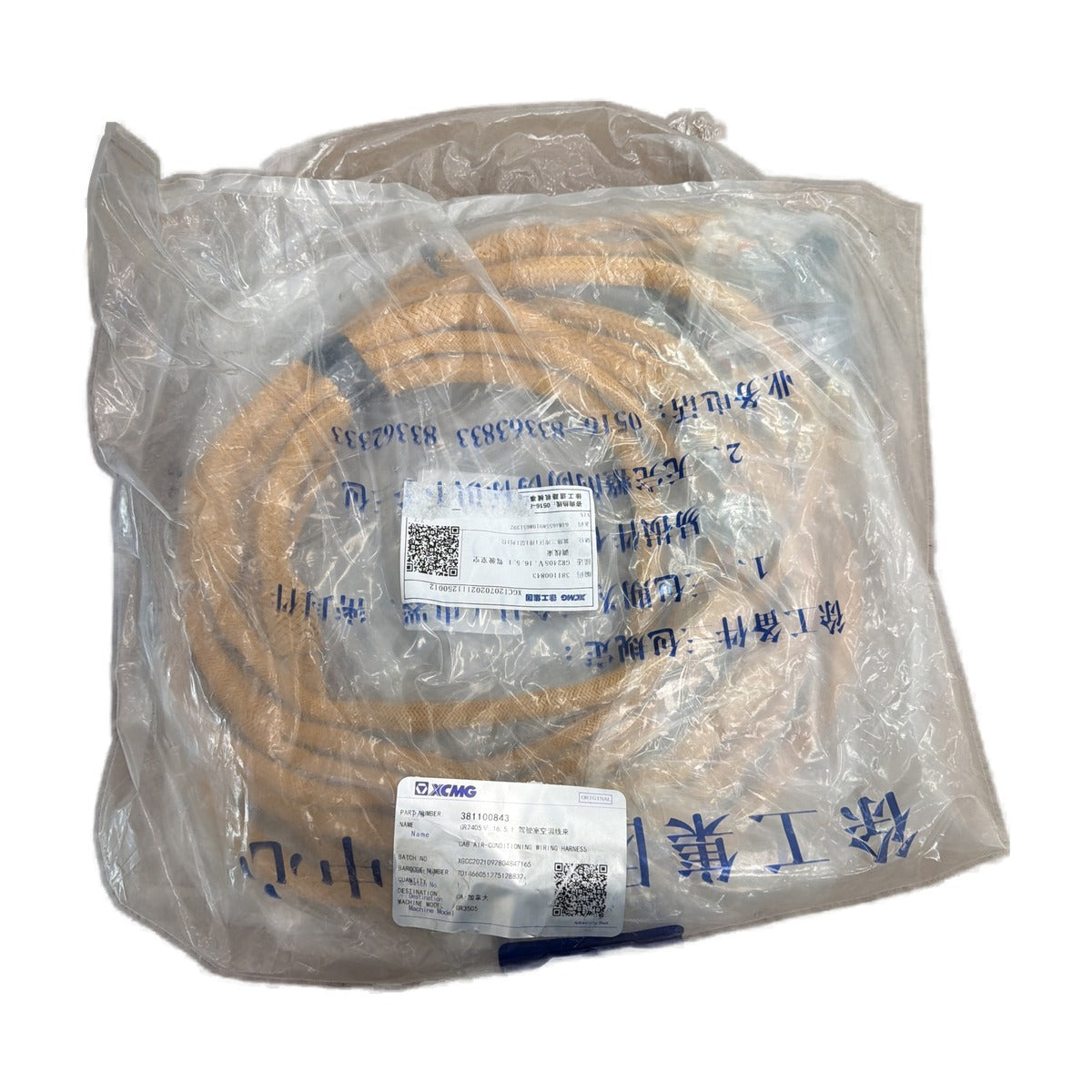

The Genuine XCMG 381100843 is the OEM cab air conditioning wiring harness for the XCMG GR2405V motor grader. Identified from product label data as assembly GR2405V.16.5.1 — the cab A/C electrical harness. This wiring harness connects the A/C system components within the operator cab, ensuring correct electrical supply and signal routing for the climate control system. Stocked in Kelowna, BC and ships Canada-wide.

Specifications

  • Part Number: 381100843
  • Type: Wiring Harness (cab air conditioning)
  • Assembly Reference: GR2405V.16.5.1
  • Brand: XCMG OEM
  • Application: XCMG GR2405V Motor Grader
  • Condition: New OEM

Fitment

  • XCMG GR2405V Motor Grader (assembly GR2405V.16.5.1)

FAQ

Is this the genuine XCMG wiring harness?

Yes — 381100843 follows the all-numeric XCMG OEM part number convention. Product label identifies this as the GR2405V cab A/C wiring harness (GR2405V.16.5.1).

What does this harness connect?

This is the cab air conditioning wiring harness, connecting the A/C compressor, evaporator, blower, and control switch circuits within the GR2405V operator cab.

Is electrical harness installation complex?

XCMG wiring harness replacement should be performed by a qualified heavy-equipment electrician following the machine's workshop manual. Improper installation can damage electrical components.

Where is this stocked?

Stocked in Kelowna, BC. Ships Canada-wide.

Fitment data available on request. Email sales@rentwithaim.ca with your machine year/make/model.
